Operating guide

4.0 Mounting

4.1 Mounting
Installation must be in compliance with local standards and
regulations.
District heating (DH) - In the following sections, DH refers to the
heat source which supplies the substations. A variety of energy
sources, such as oil, gas or solar power, could be used as the
primary supply to Danfoss substations. For the sake of simplicity,
DH can be taken to mean the primary supply.
Connection sizes:
G ¾" (int. thread)
All connections:
Dimensions (mm):
With cover:
100L: H 1180 x W 540 x D 520
150L: H 1510 x W 540 x D 520
Weight (approx.): 85 – 100 kg
4 DEN-GT
Termix AT BTD
VI.JV.Y3.02 / LUK40692
Authorized personnel only
Assembly, start-up and maintenance work must be performed by
qualified and authorized personnel only.

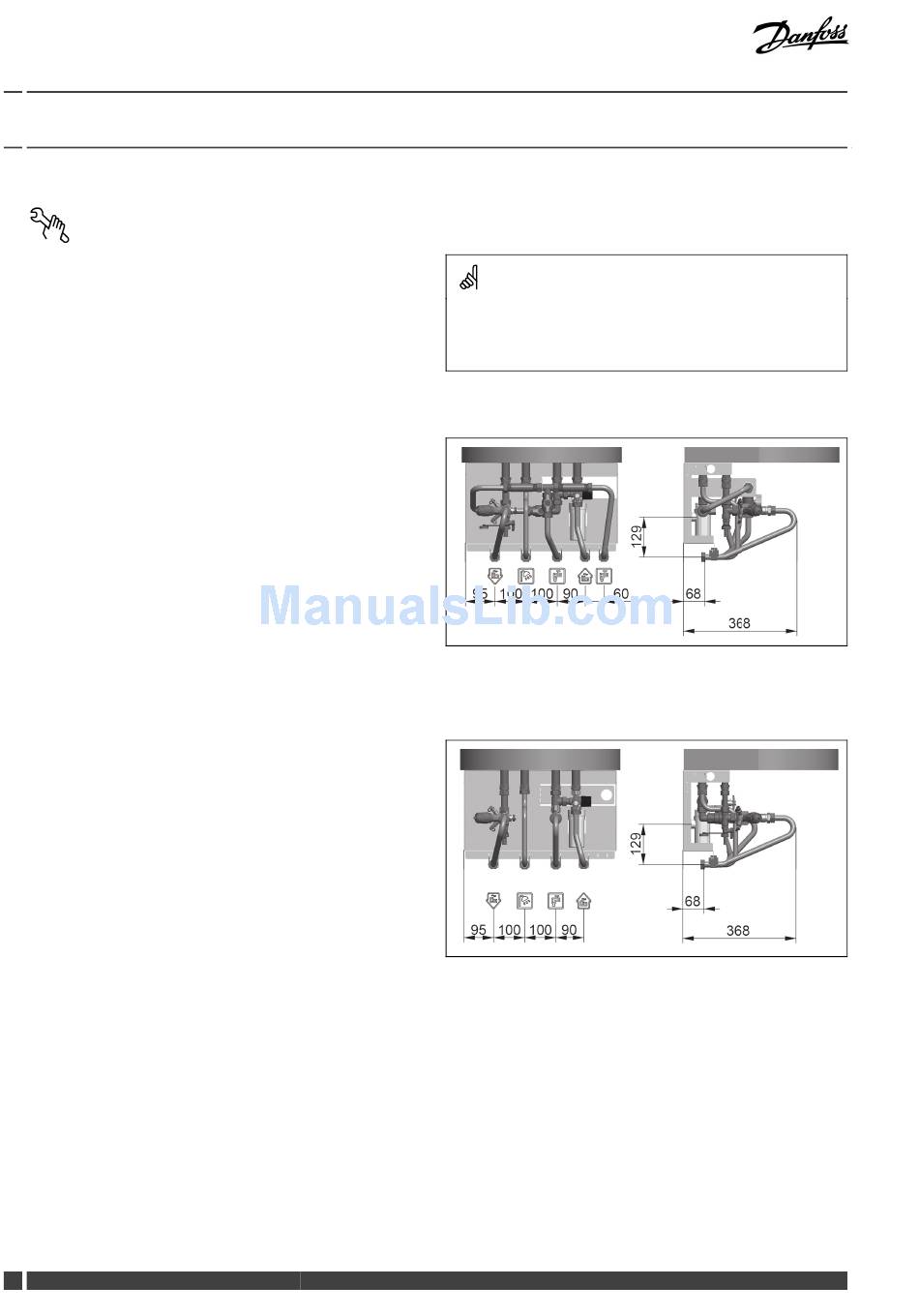

Termix AT BTD 5 pipes
The pipe placement can deviate from the shown drawing. Please note
the markings on the station.
Termix AT BTD 4 pipes
The pipe placement can deviate from the shown drawing. Please note
the markings on the station.
