Operating guide

7.0 Controls

7.1 DHW temperature control

DHW temperature control
There are various types of DHW temperature control used in
Danfoss substations.
DHW temperature should be adjusted to 45-50 °C, as this provides
optimal utilisation of DH water. At DHW temperatures above 55 °C,
the possibility of lime scale deposits increases significantly.
7.1.1 AB-QM controller (45–60 °)

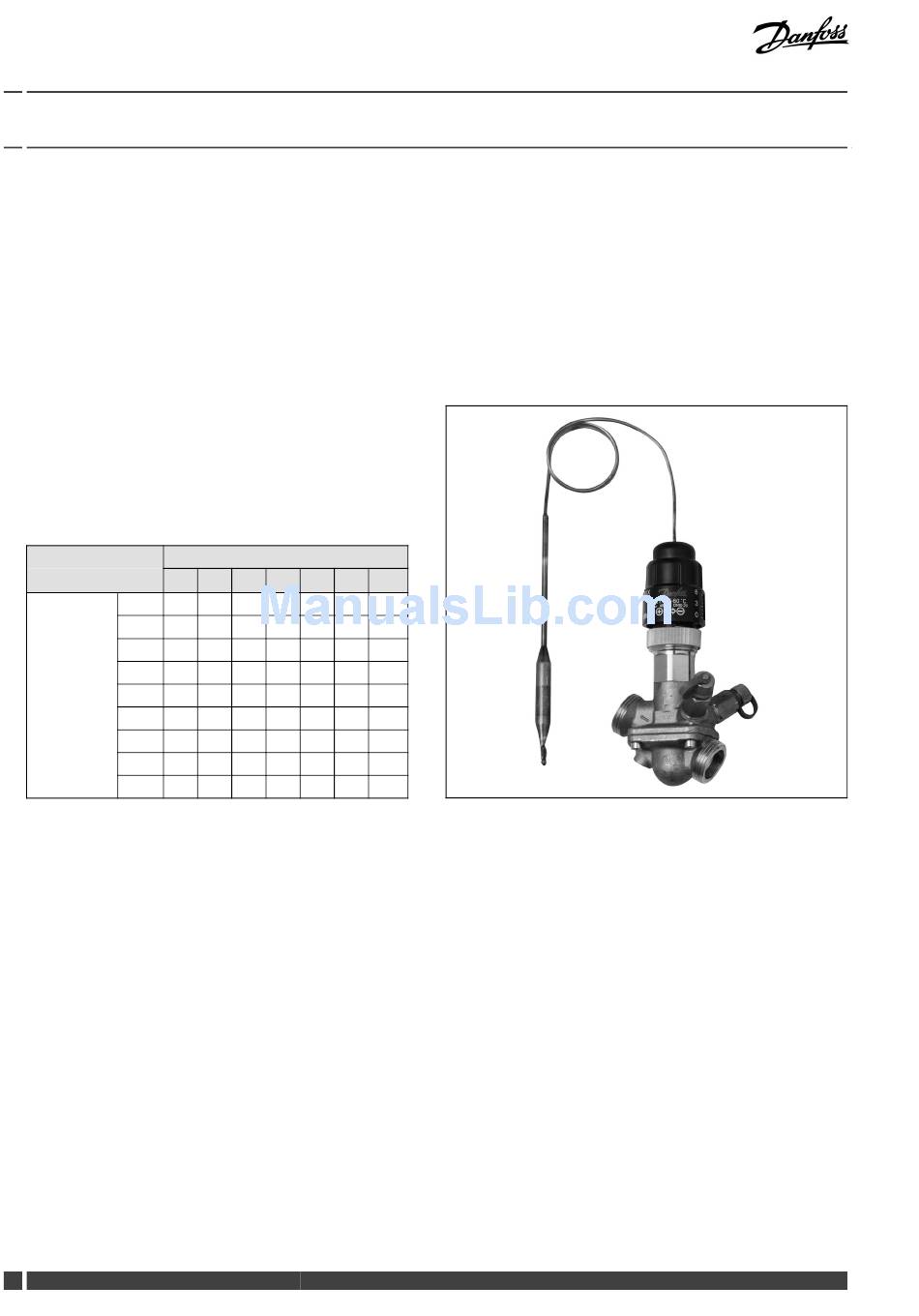

QT is a self-acting thermostatic actuator designed to be used
as return temperature control thermostat in one-pipe heating
systems.
QT is dedicated to be used with AB-QM automatic balancing &
control valve.
AB-QM DN 10-20 (45-60 °C)
Temperature setting
0
20 % 48,0 50,5 53,0 55,5 58,0 60,5 63,0
30 % 47,0 49,5 52,0 54,5 57,0 59,5 62,0
40 % 46,0 48,5 51,0 53,5 56,0 58,5 61,0
50 % 45,0 47,5 50,0 52,5 55,0 57,5 60,0
AB-QM (flow
60 % 44,0 46,5 49,0 51,5 54,0 56,5 59,0
setting)
70 % 43,0 45,5 48,0 50,5 53,0 55,5 58,0
80 % 42,0 44,5 47,0 49,5 52,0 54,5 57,0
90 % 41,0 43,5 46,0 48,5 51,0 53,5 56,0
100 % 40,0 42,5 45,0 47,5 50,0 52,5 55,0
The values are intended as a guide.
12 DEN-GT
Termix AT BTD
QT Sensor setting (turns)
1 2 3 4 5 6
VI.JV.Y3.02 / LUK40692
Danfoss District Energy
