Operating guide
6.3 Design Termix AT BTD 4 pipes
Your substation might look different than the substation shown.

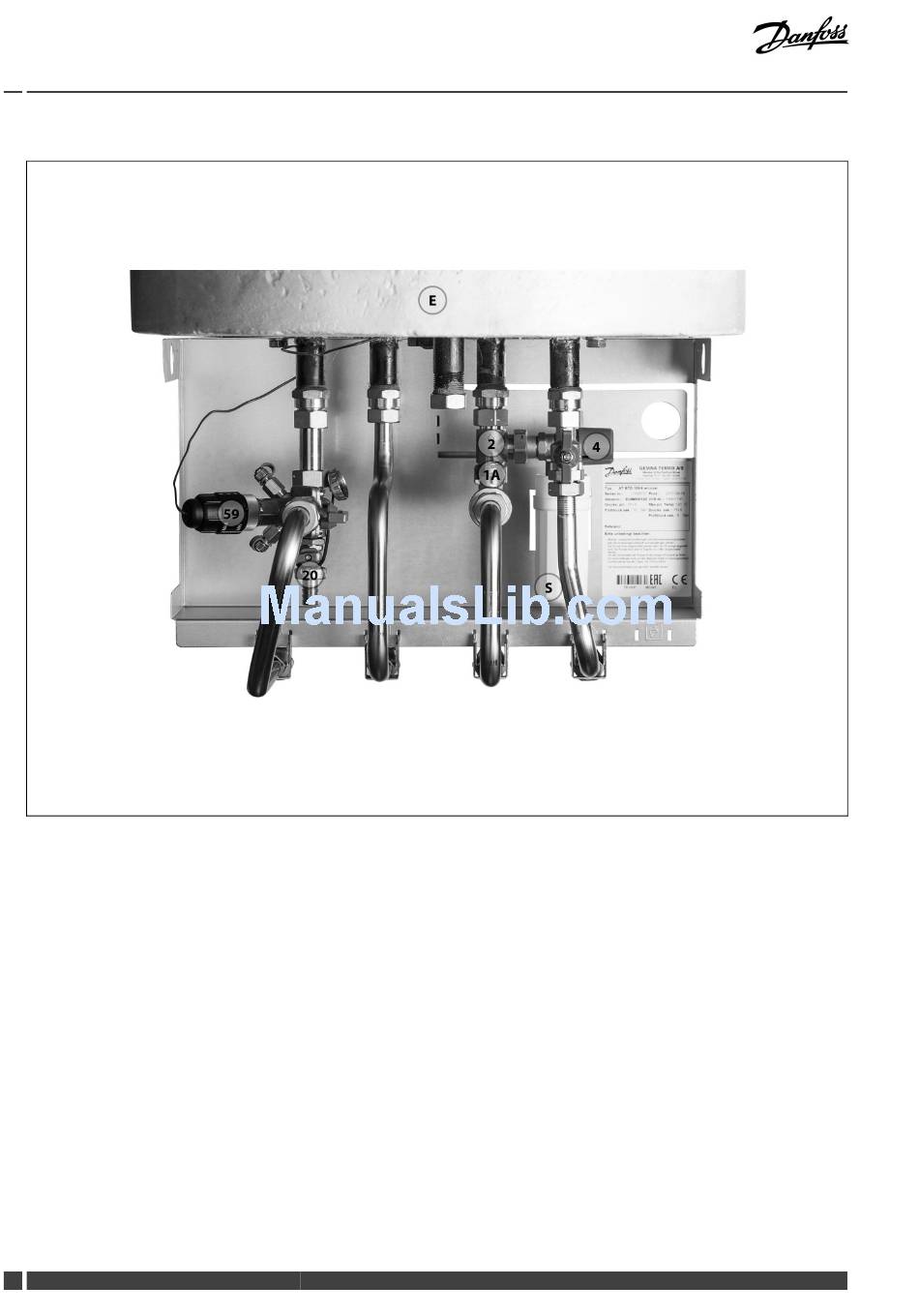

Design description
E
Hot water tank with coil
S
Siphon
1A Ball valve, DVGW
2
Single check valve
10
DEN-GT
Termix AT BTD
4
Safety valve
20
Filling/drain valve
59
Differential pressure/temperature regulator with flow limiting
VI.JV.Y3.02 / LUK40692
