Quick Guide

Assembly / Installing the system

Legend:
1)
Domestic water (cold)
2)
Domestic water (hot)
3)
Circulation (connection optional)
4)
Heating, supply
5)
Heating, return
37) Connection for instantaneous water heater (HEL)
DTA Domestic buffer tank
HEL instantaneous water heater (heat exchanger)
LPU Storage tank charging pump
D
Balancing and flow control valve
SFV Safety valve
FI
Thermometer (charge)
21
Thermometer (tank)
G
Shut-off ball valve
M
Upper connection piece
with shut-off ball valve (gunmetal)
N
Lower connection piece (gunmetal)
P
Heat exchanger bracket
Q
Connection part (brass)
R
Connection pipe (stainless steel)
Z1
Safety temperature monitor muff
(see tank data sheet)
22
Sensor muff
22
Fühlermuffe
Z4
Connection for sensor charge
23
Drain connection muff
25
Cleaning and inspection opening
29
Ventilation sleeve / lifting eye connection
Note:
Unused connections/muffs must
be closed (plugs/caps not included)
DHS-SMTL / PL
VQJVA202_ThermoDual-S_181213.indd 1

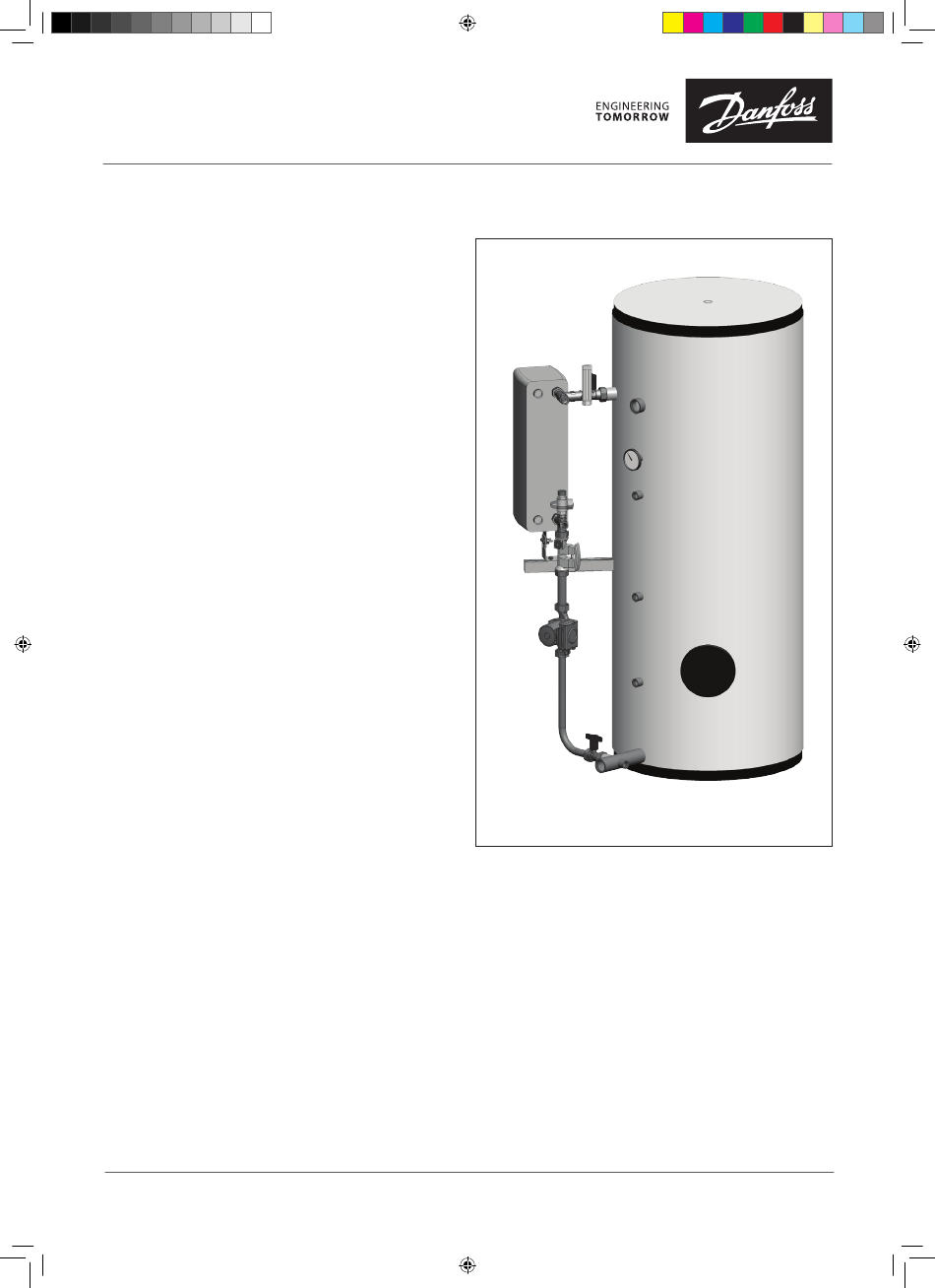

ThermoDual®- S
A
B
C
D
E
F
VQ.JV.A2.02 © Danfoss 12/2018
1
2
FI
Z1
M
4
Z4
37
HEL
SFV
5
N
3
D
P
Q
LPU
R
G
1
3 / 23
1
2
3
4
29
DTA
2
21
3
22
25
22
3
4
13.12.2018 09:21:19
5
5
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ThermoDual S and is the answer not in the manual?

Questions and answers

Summary of Contents for Danfoss ThermoDual S

  • Page 1 Connection for sensor charge Drain connection muff Cleaning and inspection opening 3 / 23 Ventilation sleeve / lifting eye connection Note: Unused connections/muffs must be closed (plugs/caps not included) VQ.JV.A2.02 © Danfoss 12/2018 DHS-SMTL / PL VQJVA202_ThermoDual-S_181213.indd 1 13.12.2018 09:21:19...
  • Page 2 Fastening (tightening the connections) takes place after aligning the heat exchanger later. Fasten both parts together with the enclosed screws. Screw connection parts. Fastening (tightening the connections) takes place after aligning the heat exchanger later. VQ.JV.A2.02 © Danfoss 12/2018 DHS-SMTL / PL VQJVA202_ThermoDual-S_181213.indd 2 13.12.2018 09:21:20...
  • Page 3 SEEGER ring as shown in Figure 5. For this, use the left connection (heating, return). Align the heat exchanger connection to fit the upper connection piece (see Fig. 7). VQ.JV.A2.02 © Danfoss 12/2018 DHS-SMTL / PL VQJVA202_ThermoDual-S_181213.indd 3 13.12.2018 09:21:32...
  • Page 4 Once the connection has been successfully established, you can firmly tighten the screws of the mounting bracket. For the time being, manually tighten the screw connections on the heat exchanger and tank. VQ.JV.A2.02 © Danfoss 12/2018 DHS-SMTL / PL VQJVA202_ThermoDual-S_181213.indd 4 13.12.2018 09:21:44...
  • Page 5 (see tank data sheet) and then insert the thermometer. This can be fastened using the side screw in the pocket head. VQ.JV.A2.02 © Danfoss 12/2018 DHS-SMTL / PL VQJVA202_ThermoDual-S_181213.indd 5 13.12.2018 09:21:56...
  • Page 6 Use enclosed EPDM gaskets and manually tighten all screwed connections. The safety valve is screwed onto the designated port R ¾” as shown. This connection is self-sealing and requires no additional sealing material. VQ.JV.A2.02 © Danfoss 12/2018 DHS-SMTL / PL VQJVA202_ThermoDual-S_181213.indd 6 13.12.2018 09:22:05...
  • Page 7 It is best to manually tighten all screw connections and correct when filling the system only until the respective Z3 1 connection no longer leaks. VQ.JV.A2.02 © Danfoss 12/2018 DHS-SMTL / PL VQJVA202_ThermoDual-S_181213.indd 7 13.12.2018 09:22:12...
  • Page 8 Before installing the heat exchanger’s thermal insulation (HEL), remove with a knife about 5 mm in the lower area as shown in Figure 15 to ensure the insulation above the bracket will close. VQ.JV.A2.02 Produced by Danfoss A/S © 12/2018 VQJVA202_ThermoDual-S_181213.indd 8 13.12.2018 09:22:15...
