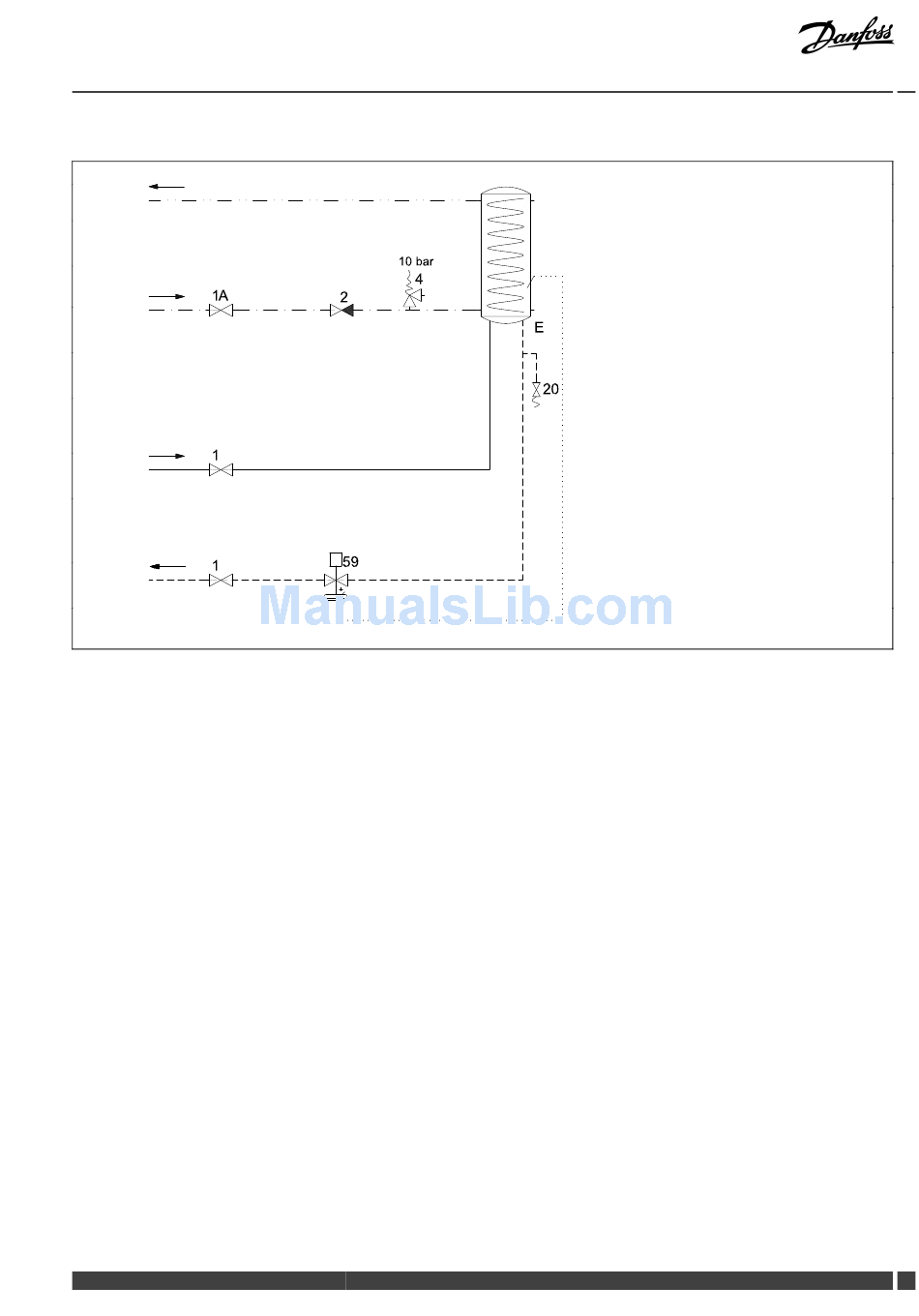

6.4 Schematic diagram Termix AT BTD 4 Pipes

DHW
DCW
DH
Supply
DH
Return
Your substation might look different than the schematic diagram shown.
Schematic description
E
Hot water tank with coil
1 Ball valve
1A Ball valve, DVGW
2
Single check valve
DHW: Domestic Hot Water
DCW:
Domestic Cold Water
DH Supply: District Heating Supply
DH Return: District Heating Return
6.4.1 Technical parameters
Technical parameters
Nominal pressure:
Max. DH supply temperature:
Danfoss District Energy
Termix AT BTD
4
Safety valve
20 Filling/drain valve
59 Differential pressure/temperature regulator with flow limiting
PN 10
T–max = 95 °C
VI.JV.Y3.02 / LUK40692 DEN-GT 11
