Page 1: Installation Guide

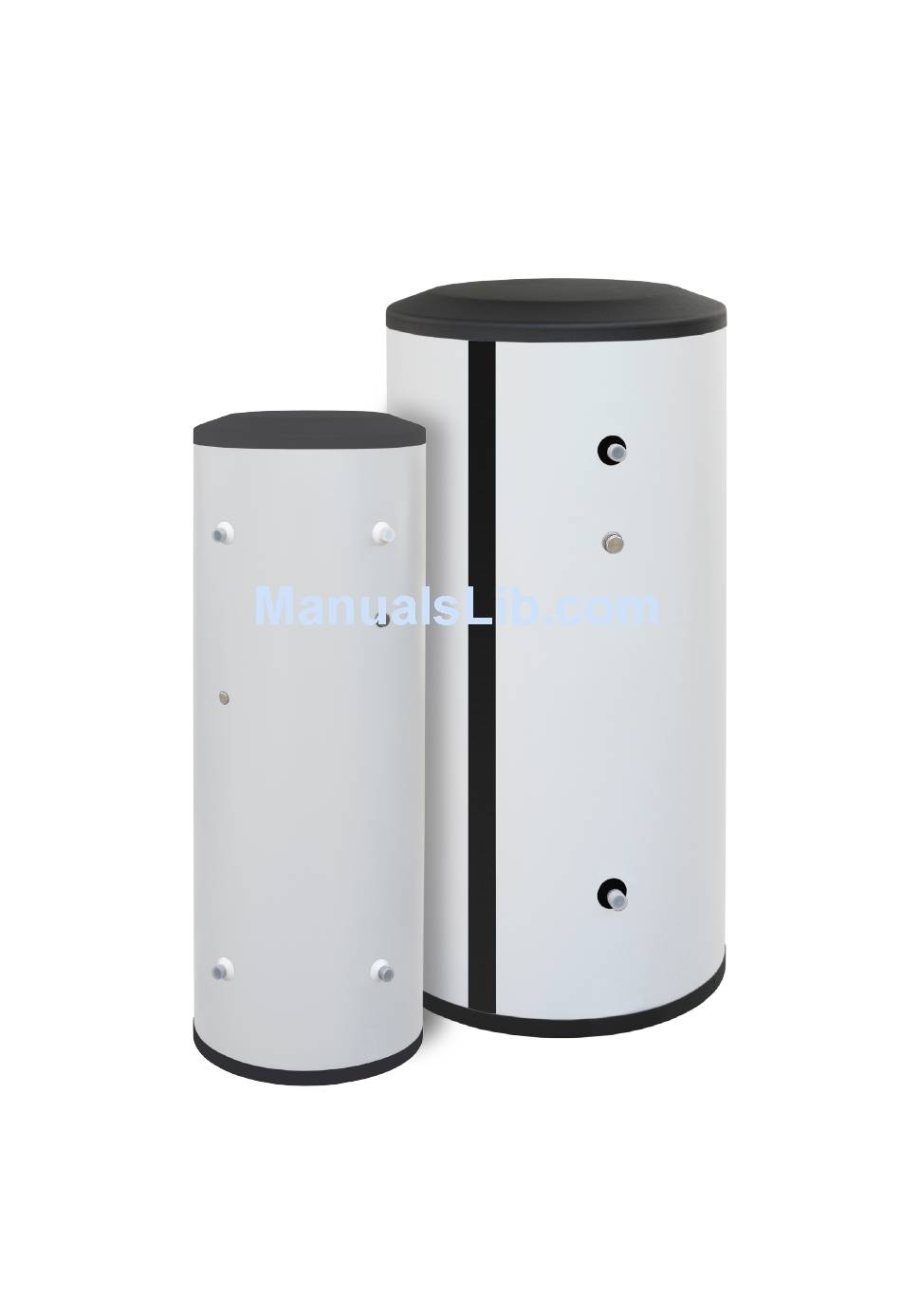

Installation Guide WT-S 500 WT-S 1000 © Danfoss A/S (Dept./Init.), 2014-05 VIILB102... - Page 2 Danfoss A/S is not liable or bound by warranty if these instructions are not adhered to during installation or service. The English language is used for the original instructions.Other languages are a translation of the original instructions. (Directive 2006/42/EC) © Copyright Danfoss A/S VIILB102 ©...
-
Page 3: Electrical Installation
The water heater must be supplied with the prescribed safety equipment according to applicable local and national regula- tions. The overflow pipe from the safety valve must not be able to be shut-off and must run visibly above the floor drain. © Danfoss A/S (Dept./Init.), 2014-05 VIILB102... -
Page 4: Water Temperature
Technical data WT-S 1000 Corrosion protection stainless stainless Volume, hot water heater litre 1000 Max. pressure, hot water heater bar/MPa Max. immersion heater length Height (excl. feet) 1850 2295 Net weight Immersion heater, max. output VIILB102 © Danfoss A/S (Dept./Init.), 2014-05... - Page 5 Volume hot water accumulator 500 litres Test pressure 14,3 bar Working pressure 10 bar Rated temperature 95 °C Weight 63 kg Ø Dimensions WT-S 500 Height (mm) 1850 Dimension (ømm) Required ceiling height for tilting: min. 1960mm © Danfoss A/S (Dept./Init.), 2014-05 VIILB102...
- Page 6 Volume hot water accumulator 1000 litres Test pressure 14,3 bar Working pressure 10 bar Rated temperature 95 °C Weight 95kg Dimensions Ø WT-S 1000 Height (mm) 2295 Dimension (ømm) Required ceiling height for tilting: min. 2500mm VIILB102 © Danfoss A/S (Dept./Init.), 2014-05...
- Page 7 WT-S 1000 We recommend that the insulation should be removed before moving the hot water tank. This is done to minimize the risk of damaging the insulation. © Danfoss A/S (Dept./Init.), 2014-05 VIILB102...
- Page 8 Internet: www.heating.danfoss.com, www.thermia.com Danfoss assumes no responsibility whatsoever for any errors occurring in catalogues, brochures or other printed material. Danfoss reserves the right to make changes to (the design of) its products with no prior warning. The same applies to products already on order provided that the previously agreed specifications remain unchanged. All trademarks in this material are the property of the respective company.
