Dynojet Power Commander V Installation Instructions page 3

FIG.A
Unplug
FIG.B
PCV connector
PCV connector
FIG.C
12-002
Stk connector
Ground wire
Unplug
Unplug
www.powercommander.com
DO NOT TURN ON THE IGNITION WHILE ANY CONNECTIONS
1 Remove the main seat.
2 Lay the PCV under the seat area temporarily.

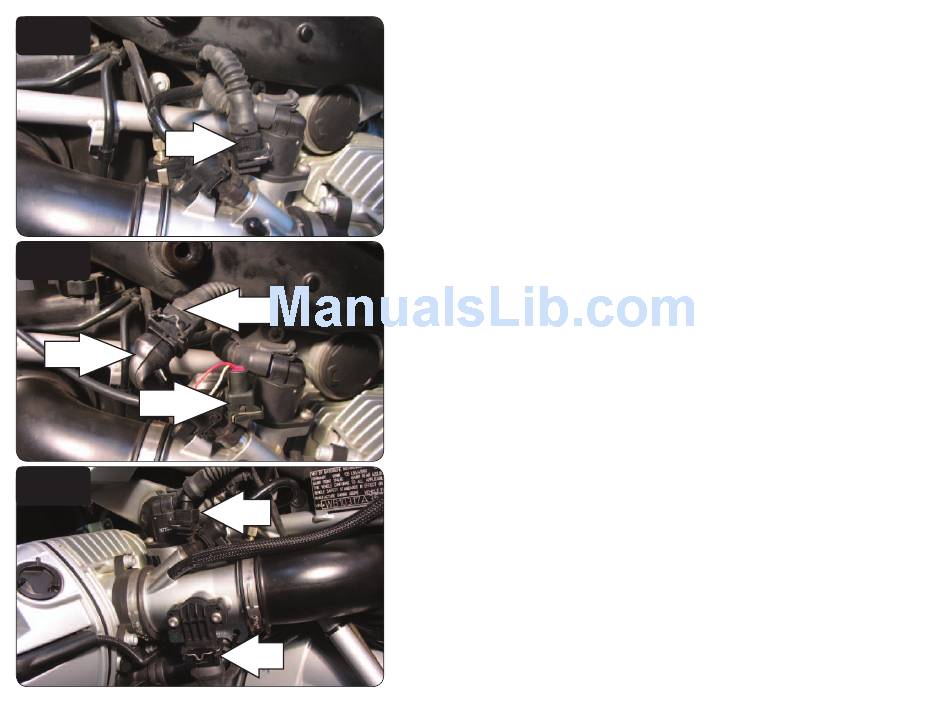

3 Unplug the stock wiring harness from the right side fuel injector (Fig. A).
4 Plug the pair of PCV leads with YELLOW colored wires in-line of the right side
fuel injector and the stock wiring harness (Fig. B).
5 Unplug the stock wiring harness from the left side fuel injector.
6 Unplug the stock wiring harness from the Throttle Position Sensor (Fig. C).
ARE UNPLUGGED.
2005-2013 BMW R1200 R/RT - PCV - 3
