Pump Parts - Graco 695 Operation, Parts

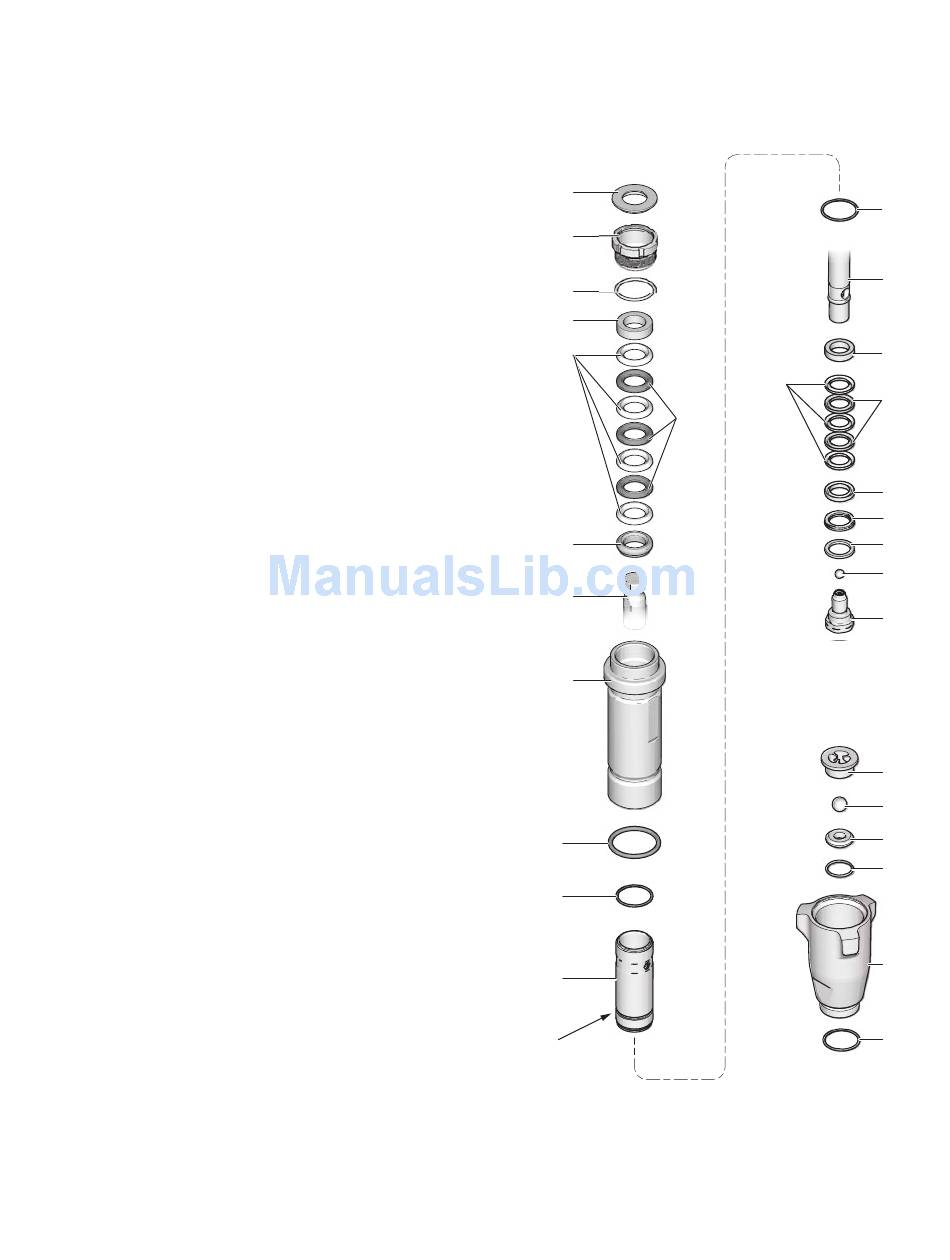

Pump Parts

Ref. Part Description
201* 179810 SEAL, throat
202 193046 NUT, packing
203* 192692 V-PACKING, throat, V-Max,
UHMWPE, blue
204* 15C987 GLAND, male, throat,
205 16X450 CYLINDER, pump, Model 16X414
206 BALL check
105444* Model 16X414 (Stainless steel)
119259† Model 16X418 (Ceramic)
207* 156593 PACKING, o-ring
208* 192693 V-PACKING, piston, V-MAX,
UHMWPE, blue
210 287877 VALVE, piston
212 239922 KIT, seat, carbide includes 214, 215,
227
213 15C785 VALVE, intake (foot)
214 105445 BALL, check, inlet (Stainless steel)
215 192624 GUIDE, ball
216* 118503 WIPER, piston
217* 178969 GLAND, female, piston
218* 178939 V-PACKING, leather, piston
219* 196880 GLAND, male, piston
220 248209 SLEEVE, cylinder
221* 108526 O-RING, ptfe
222 16X434 ROD, piston
223* 178940 V-PACKING, leather, throat
224* 15C988 GLAND, female, throat
227 107079 O-RING, ptfe
228* 158776 O-RING
229* 15C997 WASHER, backup
230* 118494 O-RING, fluoroelastomer
* These parts are also included in Repair Kit 248212, which
may be purchased separately.
3A4399A
Qty.
1
1
3
201
1
202
1
1
228
1
224
3
203
1
1
1
1
1
1
1
2
1
1
204
1
1
2
222
1
1
1
1
1
205
207
221
220
(Not an
O-ring groove)
208
223
Pump Parts
221
222
219
218
217
216
229
206
210
215
214
212
227
213
230
ti23511
39
