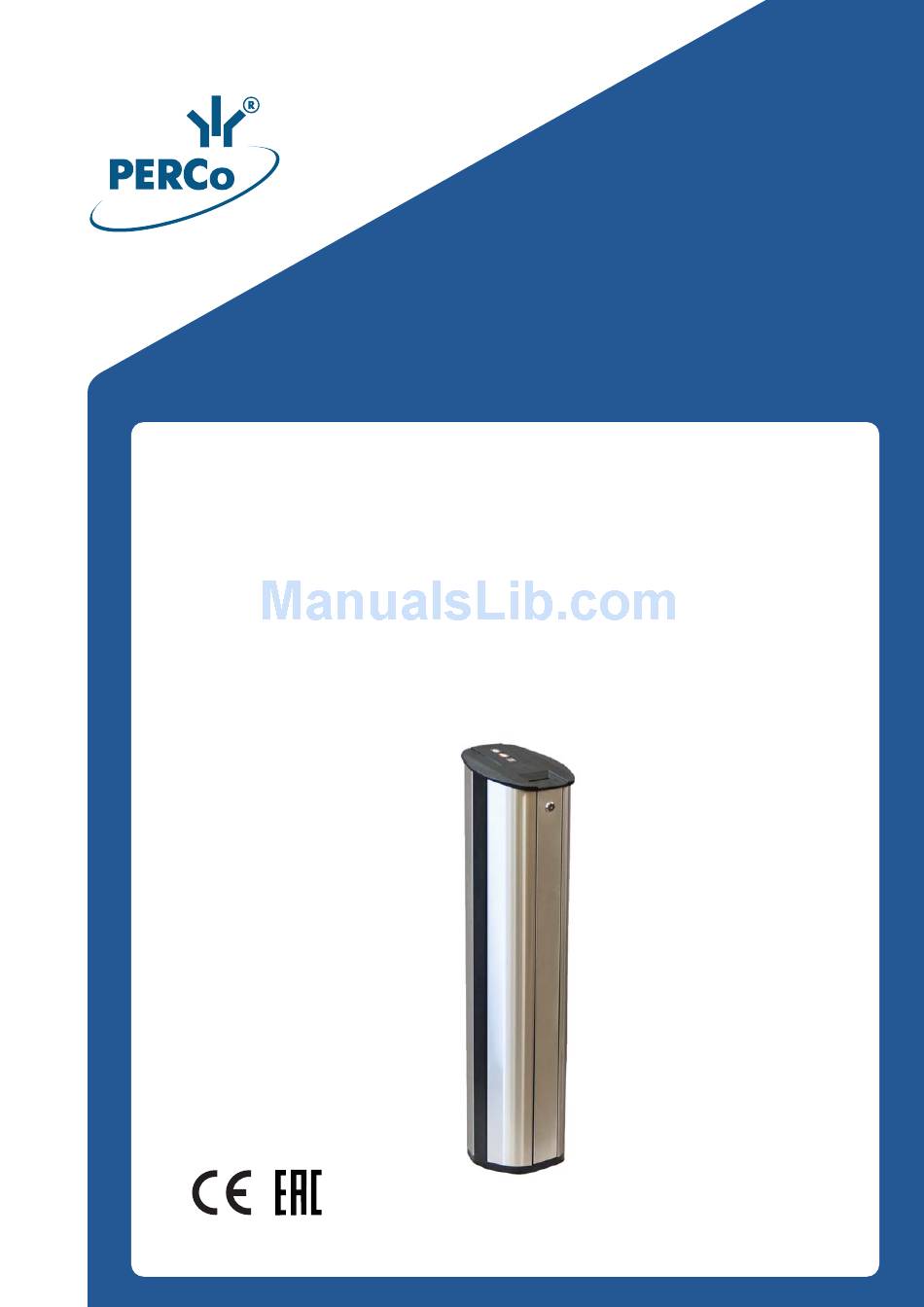

- Page 1 Card Capture Reader IC-03.1 ASSEMBLY AND OPERATION MANUAL...
- Page 2 Card Capture Reader IC-03.1 Assembly and Operation Manual...
-
Page 3: Table Of Contents
CONTENTS Application ........................3 Operation conditions ....................3 Technical specifications ....................4 Delivery set ........................4 Standard delivery set ..................4 Optional equipment supplied on request ............. 4 Product description ...................... 5 Main features ...................... 5 Design ......................... 7 Power supply ...................... 7 Control ........................ -
Page 4: Application
OD – operating device. 1 APPLICATION The IC-03.1 card capture reader is designed to operate within an ACS as a device for reading, capturing and keeping proximity cards issued to visitors and meant for return at exit (hereinafter – guest cards). -
Page 5: Technical Specifications
Assembly and Operation Manual 3 TECHNICAL SPECIFICATIONS DC operating voltage ..................12 ± 1.2 V DC Power consumption .................... max. 12 W Card container capacity ..................450 cards Access cards type ..................HID, EM-Marin Interface of the reader’s connection with a controller ..........Wiegand Card reading distance at the rated operating voltage: HID ...................... -
Page 6: Product Description
IC-03.1 Card Capture Reader Figure 1. Overall dimensions of the card capture reader 5 PRODUCT DESCRIPTION 5.1 Main features • Supports permanent cards (without capturing) and guest cards. • The card capture reader is supplied with the safe voltage – no more than 14 V. - Page 7 Assembly and Operation Manual Figure 2. Overall view Standard delivery set: 1 – base; 2– framework; 3 – housing; 4 – cover; 5 – indication module; 6 – slot for guest cards capturing; 7 – electric drive with a shutter; 8 –...
-
Page 8: Design
IC-03.1 Card Capture Reader 5.2 Design The design of the card capture reader is shown in Figure 2. Numbers of the items hereinafter refer to the item numbers as shown in Figure 2. The cover (4) houses: on the external side – an indication module (5) with 3 mnemonic indicators, (shown in Figure 3), on the internal side –... - Page 9 Assembly and Operation Manual Figure 4. Card capture reader control board...
-
Page 10: Control
IC-03.1 Card Capture Reader 5.4 Control Wiegand interface lines of the reader located from internal side of the card capture reader cover are intended for connection to the ACS controller (see Figure 8). An ACS controller controls the card capture reader by sending a signal to the “Capture card”... -
Page 11: Indication Setting
Assembly and Operation Manual 5.5 Indication setting The reader of the card capture reader has sound and light indication. It can function in one of two variants of light indication control: “double line” – control via two lines and “single line”... -
Page 12: Marking And Packaging
IC-03.1 Card Capture Reader 6 MARKING AND PACKAGING The card capture reader has a marking - a label placed on the internal side of the housing. It contains the name of the product, designation, the date of manufacture, the serial number. -
Page 13: Installation Instructions
Assembly and Operation Manual INSTALLATION INSTRUCTIONS 8.1 Installation details Attention! When installing the equipment, observe precautions (see Clause 7.1). Proper installation is critical to performance and serviceability of the card capture reader. We strongly advise to study this section before installation work, and follow the instructions to the latter. -
Page 14: Cables Parameters
ACS controller Note: Maximum distance between the reader and external controller depends on the cable cross-section. For selecting the cable type please contact PERCo specialists. For the given cable types reader performance after 40 m is not guaranteed. 8.4 Installation Further installation instructions are given with the earlier mentioned recommendations (see Clause 8.1) taken into account. - Page 15 Assembly and Operation Manual Figure 5. Floor anchor position and cable entries (A) for IC-03.1 housing installation Figure 6. Base bottom view: central hole Ø30 mm is intended for cables entry 4. Prepare the electric raceways and mounting holes for the card capture reader installation.
- Page 16 IC-03.1 Card Capture Reader Attention! Be extra cautious and careful when carrying out further works, make sure the card capture reader does not fall until it is fixed in place. 9. Put the base (1) of the card capture reader to A zone. Match four holes in the base with holes in the mounting surface.
- Page 17 Assembly and Operation Manual Figure 7. Wiring diagram card capture reader – ACS controller Figure 8. Wiring diagram for connection of the reader of the card capture reader to ACS controller via Wiegand interface...
-
Page 18: Power-Up
IC-03.1 Card Capture Reader 9 POWER-UP 1. Check integrity and accuracy of all electrical connections. 2. Connect power supply unit to the mains with voltage and frequency given in its Certificate. 3. Switch on the power supply unit. On the indication module (5) a yellow indicator: card presentation is expected will light up which means that the card capture reader is in the standby mode –... -
Page 19: Presenting A Permanent Card
If the container is free from cards but the card capture reader is still blocked a likely reason for this could be failure of the card capture reader units. It is recommended to apply to the PERCo Technical Support Department. 10.4 Removal and installation of the card container To take out the card container (9) from the card capture reader proceed as follows: 1 Switch off the power supply of the card capture reader. -
Page 20: Transportation And Storage
(see Chapter 2) prior to install. TROUBLESHOOTING Possible faults to be corrected by the customers themselves are listed in Table 5. For faults not listed in Table 5 we advise to consult PERCo Technical Support Department. Table 5. Possible failures and troubleshooting Fault... - Page 21 PERCo Polytechnicheskaya str., 4, block 2 194021, Saint Petersburg Russia Tel: +7 812 247 04 64 E-mail: export@perco.com support@perco.com www.perco.com...
- Page 22 www.perco.com...
