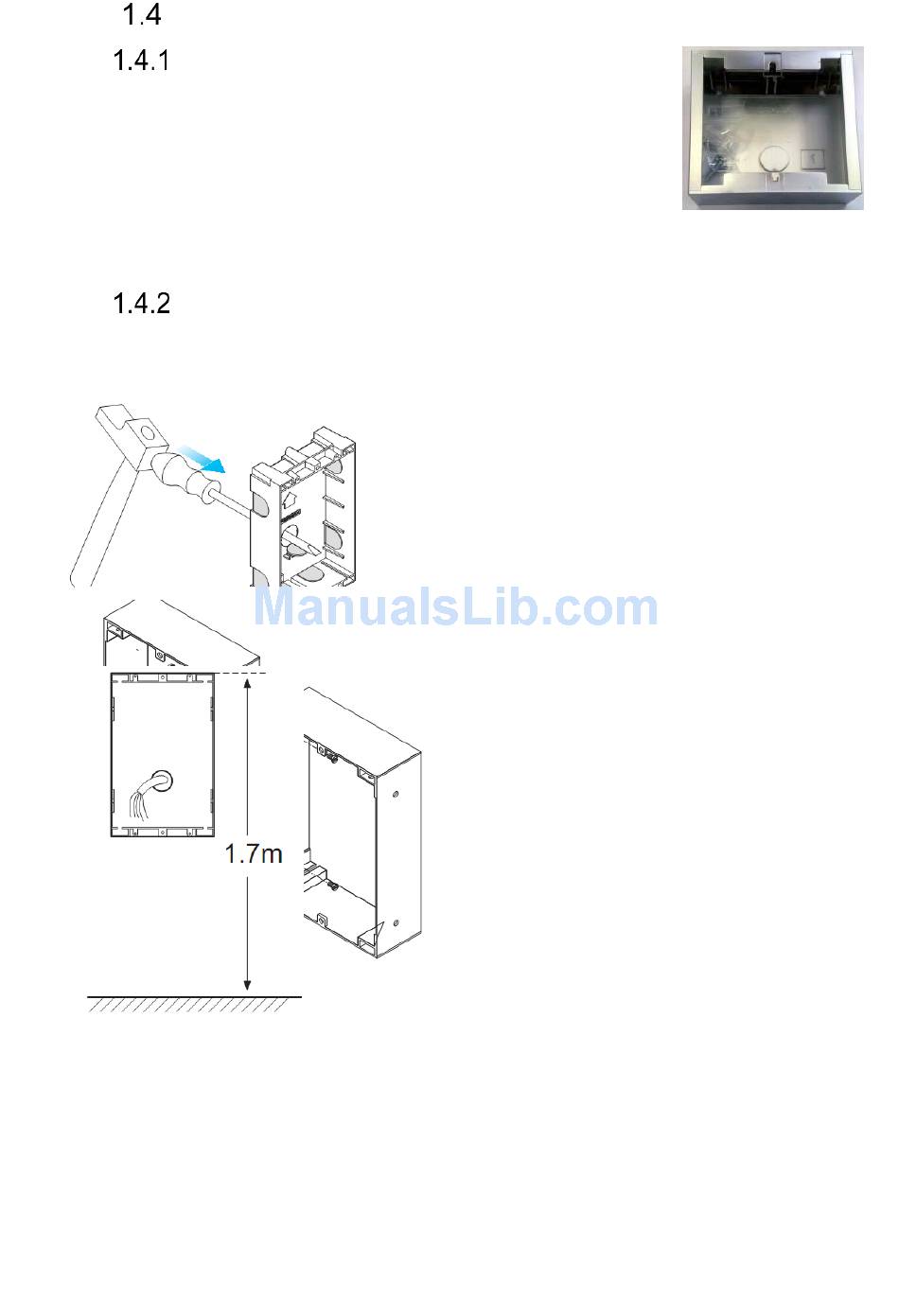

Mounting on the wall

For surface mounting on the wall use the original
Fermax Cityline or Fermax Skyline series of mounting boxes.
Mounting is done by screwing on the wall, for example with
anchors. As an example, the figure shows a surface
mounting box for 1 module. Mount the surface box at the
correct height of 1,7m above the floor/ground.

Mounting into the wall

For flush mounting into the wall use the original Fermax Cityline or Fermax
Skyline series of mounting boxes.
IP VarioBell
12
- installation and operating instructions

Mounting of IP Fermax

1. Prepare the flush mounting box
2. Principe of connecting flush mounting
boxes next to each other. Use the original
Fermax joining bolts (ref. 8829) to connect
the flush mounting boxes.
3. Mount the flush box at the
correct height of 1,7m above the
floor/ground.
