Option 07: Inlet Power Supply Description

C.7.1 85 to 264 Vac, 47 to 440 Hz, 110 to 370 Vdc, IEC–320 Connector
Option 07 provides an ac/dc power module, which includes an IEC-320 type inlet and mating ac
cord. Input voltages are 85 to 264 Vac, 47 to 440 Hz or 110 to 370 Vdc, less than 20 Volt-Amps
maximum. Various plug styles are available as Options P01 through P10. See Section 3.2.1 for a
list of available cordsets.

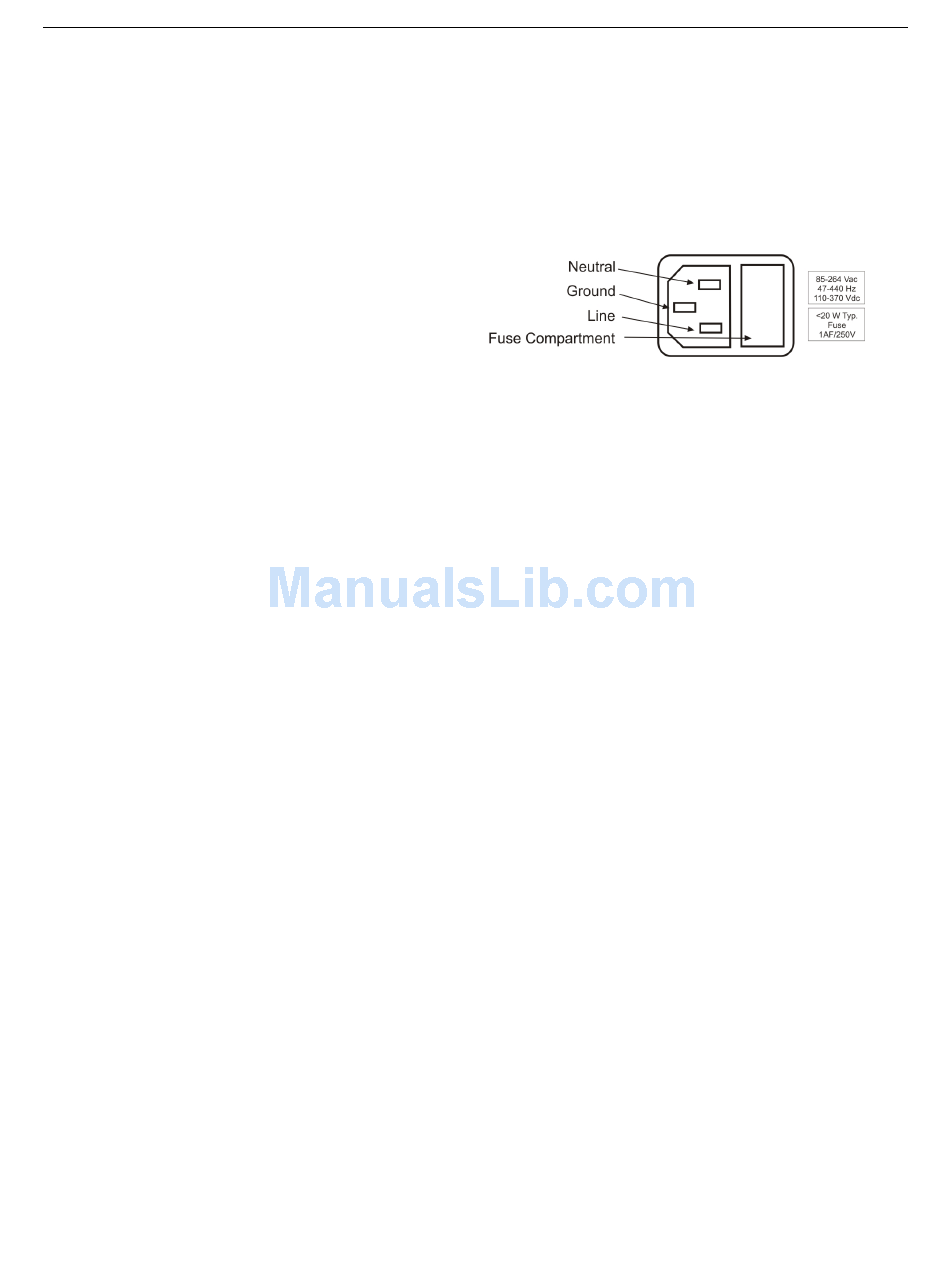

Figure C.7: Option 07 Power Supply Inlet
Connector
C.7.2 Specifications
Fuse
Type:
Current Rating:
Voltage Rating:
Size:
Input Power
AC Voltage Range: 85 to 264 Vac.
Frequency Range:
DC Voltage Range: 110 to 370 Vdc.
Input Power:
Bussman GBD-1A
1 Ampere, fast-acting.
250 Volts.
5 mm x 20 mm.
47 to 440 Hz.
< 20 Watts
