AEMC Simple Logger II L104 User Manual

Bluetooth edition, ac current, ac / dc voltage, ac voltage
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

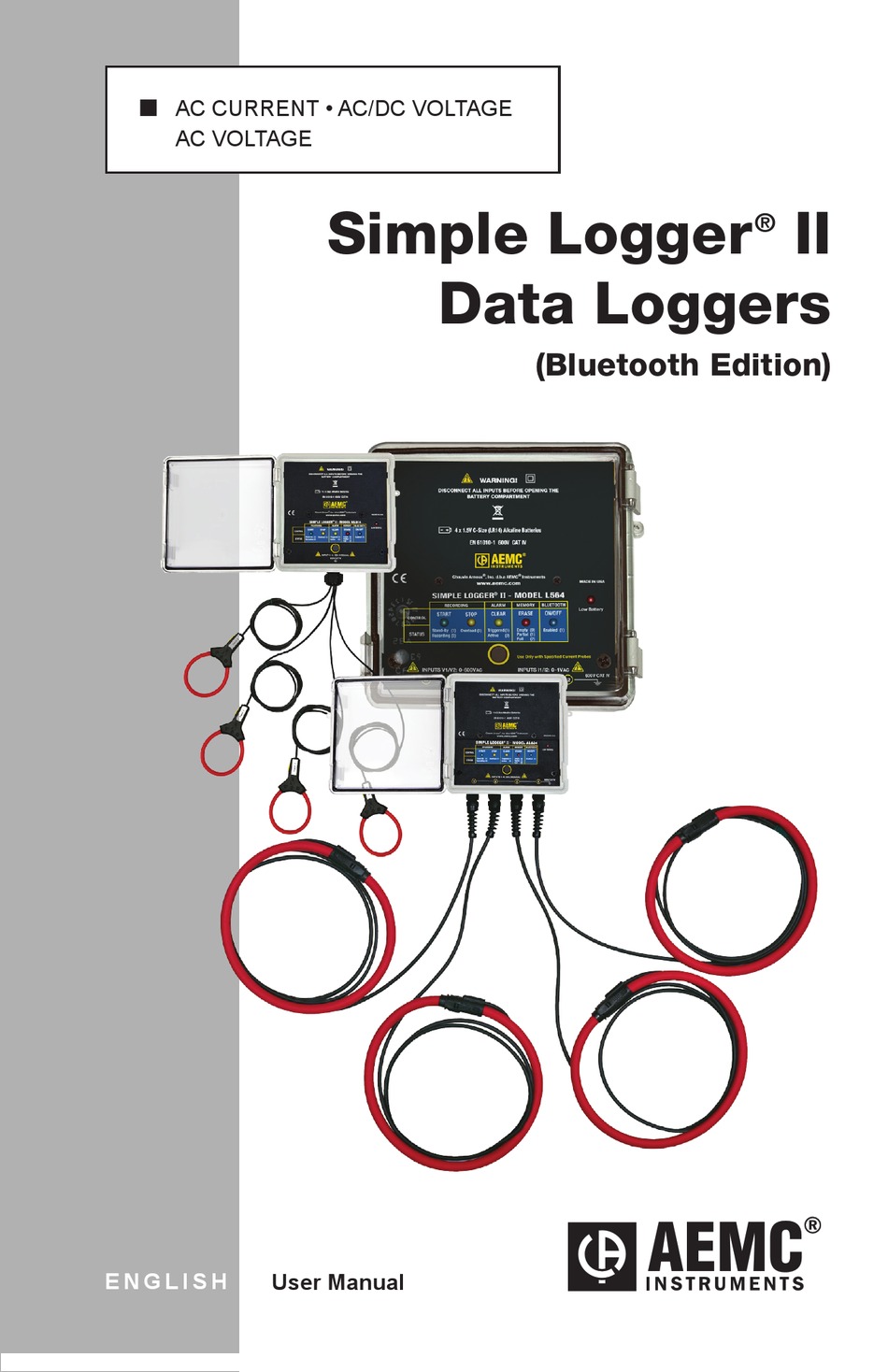

AC CURRENT • AC/DC VOLTAGE
AC VOLTAGE
Simple Logger
II
®
Data Loggers
(Bluetooth Edition)
E N G L I S H
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Simple Logger II L104 and is the answer not in the manual?

Questions and answers

Related Manuals for AEMC Simple Logger II L104

Summary of Contents for AEMC Simple Logger II L104

  • Page 1 AC CURRENT • AC/DC VOLTAGE  AC VOLTAGE Simple Logger ® Data Loggers (Bluetooth Edition) E N G L I S H User Manual...
  • Page 3 The recommended calibration interval for this instrument is 12 months and begins on the date of receipt by the customer. For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: _______________________________ Model #: ________________________________...

  • Page 4: Table Of Contents

    Table of Contents 1. INTRODUCTION ................4 1.1 Symbols Used ................5 1.2 Definition of Measurement Categorie ........5 1.3 Receiving Your Shipment ............6 1.4 Ordering Information ..............6 1.4.1 Recommended Probes for Models L104 & L564 ..6 1.4.2 Accessories and Replacement Parts ......7 2.
  • Page 5 3.10 Reset Switch Operation ............21 3.11 Flash Upgrade Switches ............22 4. SOFTWARE INSTALLATION............23 4.1 Installing DataView ..............23 ® 4.2 Simple Logger II Control Panel..........25 5. MAINTENANCE ................26 5.1 Replacing the Batteries ............26 5.2 Cleaning ..................26 6. SPECIFICATIONS................27 APPENDIX: TROUBLESHOOTING ............

  • Page 6: Introduction

    CHAPTER 1 INTRODUCTION WARNING These instruments comply with safety standard EN 61010-1 (Ed 2-2010) or EN 61010-2-032 (2002) for voltages and categories of installation, at an altitude below 2000m and indoors, with a degree of pollution at most equal to 2. •...

  • Page 7: Symbols Used

    Symbols Used Signifies that the instrument is protected by double or reinforced insulation. CAUTION - Risk of Danger! Indicates a WARNING and that the operator must refer to the user manual for instructions before operating the instrument in all cases where this symbol is marked. Risk of electric shock.

  • Page 8: Receiving Your Shipment

    Receiving Your Shipment Upon receiving your shipment, make sure that the contents are consistent with the ordering information. Notify your distributor of any missing items. If the equipment appears to be damaged, file a claim immediately with the carrier and notify your distributor at once, giving a detailed description of any damage.

  • Page 9: Accessories And Replacement Parts

    5 ft with Color-coded Alligator Clips (L564) ......Cat. #2152.03 Lead - Replacement Set of 5, Color-coded (4-Red/1-Black) 5 ft with Color-coded Alligator Clips (L264) ......Cat. #2152.04 Order Accessories and Replacement Parts Directly Online Check our Storefront at www.aemc.com/store for availability Simple Logger II (Bluetooth Edition) Series ®...

  • Page 10: Product Features

    CHAPTER 2 PRODUCT FEATURES Throughout the content of this user manual, the Simple Logger II may be ® referred to as the “SLII”. Description The Simple Logger II Bluetooth Series of loggers are four channel ® recording devices powered by alkaline batteries. Frequency tracking is performed such that 64 samples over one line cycle are taken.

  • Page 11: Control Features

    Control Features DISCONNECT ALL INPUTS BEFORE OPENING BATTERY COMPARTMENT RECORDING ALARM MEMORY BLUETOOTH Low Battery ON/OFF ERASE START CLEAR STOP CONTROL Empty (0) Stand-By (1) Triggered (1) Enabled (1) Overload (1) STATUS Partial (1) Recording (2) Active Full 600V CAT IV Figure 2-1 1.
  • Page 12 There are two thresholds for the battery voltage: • The first is used to indicate low battery. The low battery indicator (Red LED single blink) will blink when the battery voltage drops below 2.2V. • The second is used to determine when to terminate recording and turn the unit off.

  • Page 13: Operation

    CHAPTER 3 OPERATION LED Control Operation and Status Indication The ON/SLEEP state of the SLII can be determined by pressing the CONTROL button for less than 0.5 seconds. If the instrument is ON, the status of the instrument will be shown by the LEDs. If the instrument is in the SLEEP mode, all the status LEDs will light until the CONTROL button is released.
  • Page 14 The Control and Status Operation of each LED is as follows: GREEN LED CONTROL Starts a Recording Single-blink Logger is in Standby Mode (and not recording) STATUS Double-blink Logger is in Record Mode AMBER LED CONTROL Stops a Recording Logger is not in an Overload condition STATUS Single-blink One or more inputs are in an Overload condition...

  • Page 15: Connecting The Simple Logger ® Ii To A Computer

    Overload occurs when any input is 10% above its input range. When the battery voltage goes below 1.7 volt the instrument will shut down (termi- nating and saving the recording, if it is recording). SLEEP mode: The instrument enters the low power state if the button •...

  • Page 16: 3.2.2 Pairing

    USB port on your computer. The default Windows driver will automatically install the device. The pairing procedure varies depending on your operating system, Bluetooth equipment and driver software. NOTE: The information in the following sections are only necessary the first time an instrument is connected, or when the Bluetooth USB adapter has been removed then reconnected.

  • Page 17: Turning Bluetooth On/Off

    Turning Bluetooth ON/OFF By default, Bluetooth is enabled. To conserve battery power, Bluetooth can be turned OFF. To turn Bluetooth OFF, press and hold the Control button until the Blue LED turns on solid, then release the button. Repeat this step to turn Blue- tooth back ON.

  • Page 18: Stopping A Recording Session

    3.4.2 Stopping a Recording Session 1. Press and hold the CONTROL button. When the STOP (AMBER) LED lights up, release the button. 2. The GREEN LED will change from a double-blink to a single-blink, indicating STANDBY mode. The data will be retained, even if the instrument is in SLEEP mode. The recorded data is stored in Flash memory (maintained even in the absence of batteries).

  • Page 19: Erasing Data From Memory

    Erasing Data from Memory Erasing data from the instrument’s memory can only be performed while in the STANDBY mode. There are two ways to erase the memory: Erasing the Memory using the Control Button: 1. Press and hold the CONTROL button. When the ERASE (RED) LED lights up, release the button.

  • Page 20: Data Storage

    Data Storage The logger captures Trend measurements. The following are definitions of terms used in this section: Input Channel: Source for the measurement channel of the instrument. Measurement Channel: Measurement of input. This can be a simple direct measurement, the result of complex mathematical operations on a single or multiple input, or other channels.

  • Page 21: Recording With Memory Cleared

    3.9.1 Recording with Memory Cleared When a recording starts, the logger will continue to record until one of the following occurs: • The Session is complete. • The Memory is full and the recording mode is Start/Stop or Alarm. • The CONTROL button is pushed until the STOP (AMBER) LED lights up and is released before the next LED lights.

  • Page 22: Battery Power Insufficient For A Full Recording

    • A new recording can be started or scheduled once memory is erased. If in either the XRM or FIFO mode, the recording will continue even after memory becomes full. Memory will be freed to make room for new samples. The method of freeing memory will depend on the recording mode.

  • Page 23: 3.10 Reset Switch Operation

    3.10 Reset Switch Operation CAUTION: Risk of electric shock. Disconnect the unit from any input source before opening the battery cover. Resetting the instrument takes about 10 seconds, at which time the instru- ment will be non responsive. The RESET button resets the CPU and is located under the battery cover. To access it, remove the battery compartment cover.

  • Page 24: 3.11 Flash Upgrade Switches

    Failure to set the Flash Upgrade Switches OFF after the upgrade will pre- vent the instrument from operating properly and deplete the batteries. Check for firmware and software updates at www.aemc.com. Download and read instructions before proceeding. Simple Logger II (Bluetooth Edition) Series ®...

  • Page 25: Software Installation

    CHAPTER 4 SOFTWARE INSTALLATION Installing DataView ® DO NOT CONNECT THE INSTRUMENT TO THE PC BEFORE INSTALLING THE SOFTWARE AND DRIVERS. Minimum Computer Requirements: • Microsoft Windows 7, 8, 8.1, or 10 (32 or 64 bit) • 1GB of RAM for Windows 7, 8, 8.1, 10 (32 bit) 2GB or RAM for Windows 7, 8, 8.1, 10 (64 bit) •...
  • Page 26 Complete and then click Next. 8. You are now prompted to select the Control Panel(s) you want to install. Each AEMC product family has its own specially designed Control Panel. By default, all available Control Panels are selected. Control Panels take up disk space on the computer, so unless you have other types of AEMC instruments, we recommend that you select Simple Logger II and deselect the rest.

  • Page 27: 4.2 Simple Logger Ii Control Panel

    Click Finish to leave the InstallShield Wizard. You are now asked whether or not you would like to view instructions about how to connect the AEMC instrument or cable to the USB port on the computer. Click Yes to view these instructions, or No to proceed.

  • Page 28: Maintenance

    CHAPTER 5 MAINTENANCE Use only factory specified replacement parts. AEMC will not be held ® responsible for any accident, incident, or malfunction following a repair done other than by its service center or by an approved repair center. Replacing the Batteries CAUTION: Risk of electric shock.

  • Page 29: Specifications

    CHAPTER 6 SPECIFICATIONS Reference Conditions: 23°C ± 3°C, 30-50% RH, 50/60 Hz, no AC external magnetic field, DC mag- netic field ≤ 40A/m, centered conducto , battery voltage: 3V ± 10%. MODEL ML914 ELECTRICAL Channels Four Input Captive MiniFlex AC Current Flexible Sensors ®...
  • Page 30 MODEL AL834 ELECTRICAL Channels Four Input Captive AmpFlex AC Current Flexible Sensors ® Range 300A 3000A Accuracy 0 to 5A unspecified 0 to 15A unspecified (50/60Hz) 5 to 300A: 15 to 3000A: ±(1% of Reading + 0.5A) ±(1% of Reading + 1A) Resolution 0.1A 0.5A...
  • Page 31 NOTE: The native measurement of the Model L104 is voltage. This voltage is scaled to displace current by a factor that corresponds to the users probe selection. This accuracy specification does not account for probe errors. MODEL L104 ELECTRICAL Channels Four Input One connector per channel...
  • Page 32 NOTE: The native measurement of the Model L564 is voltage. This voltage is scaled to displace current by a factor that corresponds to the users probe selection. This accuracy specification does not account for probe errors. MODEL L564 ELECTRICAL Channels Four (two voltage and two current) Input Three Recessed Banana Jacks...
  • Page 33 MODEL L264 ELECTRICAL Channels Four Input Five Recessed Banana Jacks Range 0 to 600V AC/DC Resolution 0.1V Accuracy 0 to 5V unspecified (50/60Hz) 5 to 50V: ±(0.5% of Reading + 1V) 50 to 600V: ±(0.5% of Reading + 0.5V) Maximum Input Voltage*** 1.2 x 600V Input Impedance 16MW...
  • Page 34 NOTE: When installing probes, face the arrow on the probe in the direc- tion of the load. Model SR193 for f ≤1kHz Nominal Range 1000A Measurement Range 1A to 1000A max (I >1000A not continuously) Probe Output Signal Maximum Clamping Diameter 2"...

  • Page 35: Appendix: Troubleshooting

    APPENDIX A TROUBLESHOOTING Symptom: After being in a damp, cold environment, the logger does not function. Cause, Correction: Condensation may have formed inside the logger, shorting out the circuitry and discharging the battery. Allow the circuit board to dry thoroughly in a warm location. Symptom: Simple Logger II does not start recording.

  • Page 36: Appendix: Glossary

    APPENDIX B GLOSSARY Some general terminology associated with the data collection process is listed here for convenience. Bps: Bits Per Second, a unit of signal transfer speed equal to the num- ber of elements per second. The Simple Logger II transfers data at the ®...

  • Page 37: Repair And Calibration

    If the instrument is returned for calibration, we need to know if you want a standard calibration, or a calibration traceable to N.I.S.T. (Includes calibration certificate plus recorded calibration data). Ship To: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ®...

  • Page 38: Limited Warranty

    Instruments, not by the distributor from whom it was ® purchased. This warranty is void if the unit has been tampered with, abused or if the defect is related to service not performed by AEMC Instruments. ® Full warranty coverage and product registration is available on our website at www.aemc.com/warranty.html.
  • Page 40 07/17 99-MAN 100357 v8 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
