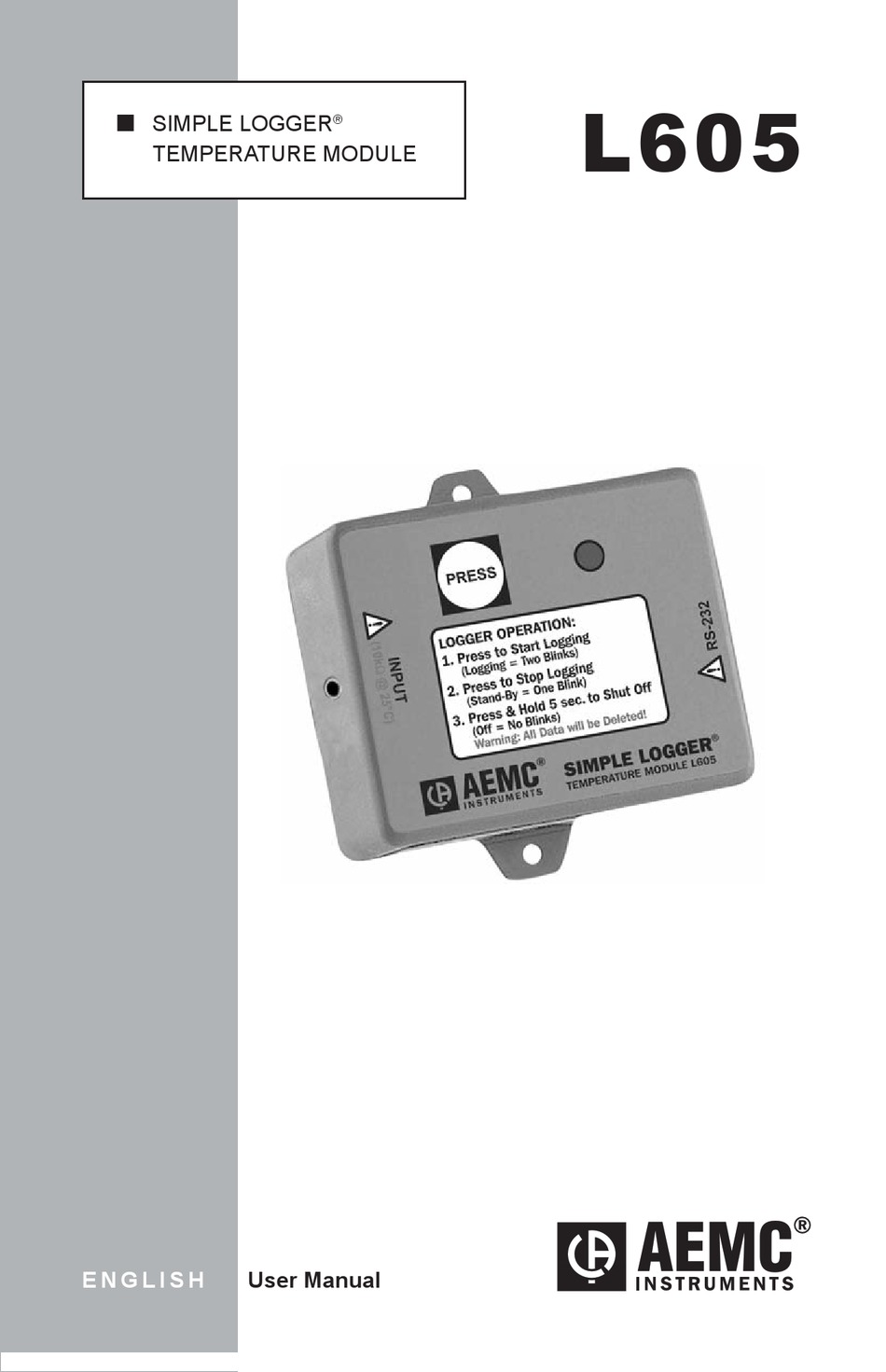

- Page 1 L605 SIMPLE LOGGER ® TEMPERATURE MODULE E N G L I S H User Manual...
- Page 2 Owner’s Record The serial number for the Models L605 is located on the side of the case. Please record this number and purchase date for your records. SIMPLE LOGGER MODEL L605 ® CATALOG #: 2114.17 SERIAL #: _______________________________________________ PURCHASE DATE: ________________________________________ DISTRIBUTOR: ___________________________________________...
-
Page 3: Table Of Contents
Table of Contents 1. INTRODUCTION ................2 1.1 International Electrical Symbols ..........2 1.2 Definition of Measurement Categories ........3 1.3 Receiving Your Shipment ............3 1.4 Ordering Information ..............3 1.4.1 Accessories and Replacement Parts ......3 2. PRODUCT FEATURES ..............4 2.1 Indicators and Buttons ..............4 2.2 Inputs and Outputs ..............5 2.3 Mounting ...................5 3. SPECIFICATIONS................6 3.1 Electrical Specifications ............6 3.2 Mechanical Specifications ............7 3.3 Environmental Specifications . -
Page 4: Introduction
This symbol on the instrument indicates a WARNING and that the operator must refer to the user manual for instructions before operating the instrument. In this manual, the symbol preceding instructions indicates that if the instructions are not followed, bodily injury, installation/sample and product damage may result. Risk of electric shock. The voltage at the parts marked with this symbol may be dangerous. Simple Logger® Temperature Module Model L605... -
Page 5: Definition Of Measurement Categories
Includes software (CD-ROM), 6 ft DB-9 RS-232 serial cable, 9V Alkaline battery and user manual. 1.4.1 Accessories and Replacement Parts Thermistor Probe with Epoxy bead, 6 ft ......Cat. #2114.19 Thermistor Probe with 4" Stainless Steel Sheath, 6 ft ..Cat. #2114.20 Order Accessories and Replacement Parts Directly Online Check our Storefront at www.aemc.com/store for availability Simple Logger® Temperature Module Model L605... -
Page 6: Product Features

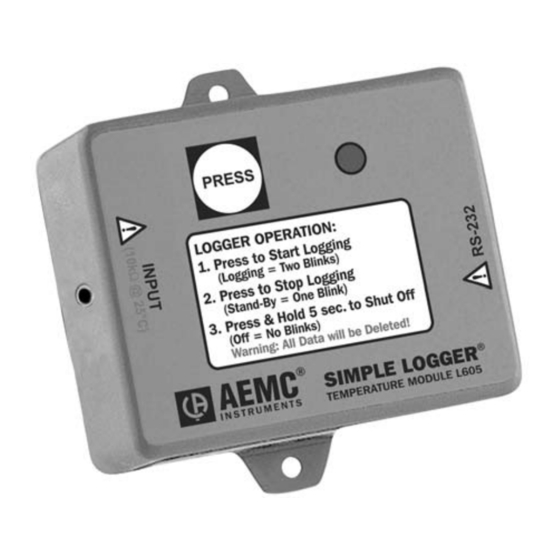

(3) LED Indicator (2) Inline Connector for External Sensor (4) RS-232 Interface Indicators and Buttons The Simple Logger has one button and one indicator. Both are located ® on the front panel. The PRESS button is used to start and stop recordings and to turn the logger on and off. The Red LED indicates the status of the logger: • Single Blink: STAND-BY mode • Double Blink: RECORD mode • Continuously On: OVERLOAD condition • No Blinks: OFF mode Simple Logger® Temperature Module Model L605... -
Page 7: Inputs And Outputs
Inputs and Outputs The Model L605 has an inline connector on the left side and an internal thermistor sensor. The right side of the logger has a female 9-pin “D” shell serial connector used for data transmission from the data logger to your computer. Mounting Your Simple Logger is equipped with mounting holes in the base plate ® tabs for mounting. For less permanent mounting, the Velcro pads (sup- ® plied loose) can be attached to the logger and the surface to which it will be mounted. Simple Logger® Temperature Module Model L605... -
Page 8: Specifications
Temperature Reference condition: 23°C ± 3K, 20 to 70% RH, Frequency 50/60Hz, No AC external mag- netic Field, DC magnetic field ≤ 40A/m, battery voltage 9V ± 10%. Accuracy: 1% of Readings ± 0.25°C Simple Logger® Temperature Module Model L605... -
Page 9: Mechanical Specifications
Weight (with battery): 5 oz (140g) Mounting: Base plate mounting holes or Velcro pads ® Case Material: Polystyrene UL V0 Environmental Specifications Operating Temperature: -4 to 158°F (-20 to 70°C) Storage Temperature: -4 to 176°F (-20 to 80°C) Relative Humidity: 5 to 95% non-condensing Temperature Influence: 5cts max Safety Specifications Working Voltage: EN 61010, 30V, Cat III *All specifications are subject to change without notice Simple Logger® Temperature Module Model L605... -
Page 10: Operation
CD into your CD-ROM drive. ® If auto-run is enabled, the Setup program will start automatically. If auto-run is not enabled, select Run from the Start menu and type in D:\SETUP (if your CD-ROM drive is drive D. If this is not the case, substitute the appropriate drive letter). 2. The Set-up window will appear. Figure 1 Simple Logger® Temperature Module Model L605... -
Page 11: Recording Data
*Acrobat Reader - Links to the Adobe web site to download the ® most recent version of Adobe Acrobat Reader. Acrobat Reader is ® required for viewing PDF documents supplied on the CD-ROM. • *Check for Available Software Updates - Opens the AEMC Software update web site, where updated software versions are available for downloading, if necessary. • View User Guide and Manuals - Opens Windows Explorer for ® viewing of documentation files. 3. To install the software, select Simple Logger Software Setup in the top section of the Set-up window, then select Simple Logger, Version 6.xx in the Options section. -
Page 12: Using The Software
(ID number of the logger and number of points recorded displayed). 4.3.1 The Function Command The Function command allows you to select the correct units for the recorded data. When you click on Function, a pull-down window will appear with two choices: °C or °F. This menu will only appear if a logger is connected to the COM port. Simply click and select the proper units from the menu that opens. Future downloads will use the unit selected here for graphing as well. Simple Logger® Temperature Module Model L605... -
Page 13: Maintenance
5. If the unit is not in record mode after installing the new battery, dis- connect it and press the button twice then reinstall the battery. 6. Reattach the base plate using the four screws removed in Step 2. Your logger is now recording (LED blinking). Press the PRESS button for five seconds to stop the instrument. NOTE: For long-term storage, remove the battery to prevent discharge effects. Cleaning The body of the logger should be cleaned with a cloth moistened with soapy water. Rinse with a cloth moistened with clean water. Do not use solvent. Simple Logger® Temperature Module Model L605... -
Page 14: Importing .Txt Files Into A Spreadsheet
3. Next, change the file type to “Text Files” in the field labeled Files of Type. All the .TXT files in the logger directory should now be visible. 4. Double-click on the desired file to open the Text Import Wizard. 5. Review the selections in the first wizard screen and make sure that the following choices are selected: Original Data Type: Delimited Start Import at Row: 1 File Origin: Windows (ANSI) 6. Click the “NEXT” button at the bottom of the Wizard dialog box. The second wizard screen will appear. 7. Click on “Comma” in the Delimiters box. A check mark should appear. 8. Click the “NEXT” button at the bottom of the Wizard dialog box. The third wizard screen will appear. 9. A view of the actual data to be imported should appear in the lower section of the window. Column 1 should be highlighted. In the Column Data Format window, select “Date”. 10. Next, click on “Finish” to complete the process and import the data. 11. The data will now appear in your spreadsheet in two columns (A and B) and will look similar to that shown in Figure A-1. Simple Logger® Temperature Module Model L605... -
Page 15: Formatting The Date And Time
23.5 35401.49 27.5 35401.49 35401.49 34.5 35401.49 Figure A-1. Sample Data Imported into Excel. Formatting the Date and Time Column ‘A’ contains a decimal number that represents both date and time. Excel can convert this number directly as follows: 1. Click on column ‘B’ at the top of the column to select the data, then click on “Insert” from the main menu and select “Columns” from the drop-down menu. 2. Next, click on column ‘A’ at the top of the column to select the data, then click on “Edit” from the main menu and select “Copy” to copy the entire column. 3. Click on cell 1 of column ‘B’ and then click on “Edit” and select “Paste” to insert a duplicate of column ‘A’ into column ‘B’. This is necessary if you want to show the date and time in two separate columns. 4. Next, click on the top of column ‘A’, then click on “Format” and select “Cells” from the drop-down menu. Simple Logger® Temperature Module Model L605... - Page 16 12/02/04 11:45 AM 12/02/04 11:45 AM 12/02/04 11:45 AM 23.5 12/02/04 11:45 AM 27.5 12/02/04 11:45 AM 12/02/04 11:45 AM 34.5 12/02/04 11:45 AM 12/02/04 11:45 AM 41.5 12/02/04 11:45 AM 45.5 12/02/04 11:46 AM 12/02/04 11:46 AM Figure A-2. Shows Date, Time and Value Simple Logger® Temperature Module Model L605...
-
Page 17: Repair And Calibration
NOTE: You must obtain a CSA# before returning any instrument. Technical and Sales Assistance If you are experiencing any technical problems, or require any assistance with the proper operation or application of your instrument, please call, mail, fax or e-mail our technical support team: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 200 Foxborough Boulevard Foxborough, MA 02035 USA Phone: (800) 343-1391 (508) 698-2115 Fax: (508) 698-2118 E-mail: techsupport@aemc.com www.aemc.com NOTE: Do not ship Instruments to our Foxborough, MA address. Simple Logger® Temperature Module Model L605... -
Page 18: Limited Warranty
Limited Warranty The Simple Logger Model L605 is warranted to the owner for a period of ® two years from the date of original purchase against defects in manufacture. This limited warranty is given by AEMC Instruments, not by the distributor ® from whom it was purchased. This warranty is void if the unit has been... - Page 20 08/18 99-MAN 100213 v10 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com...
