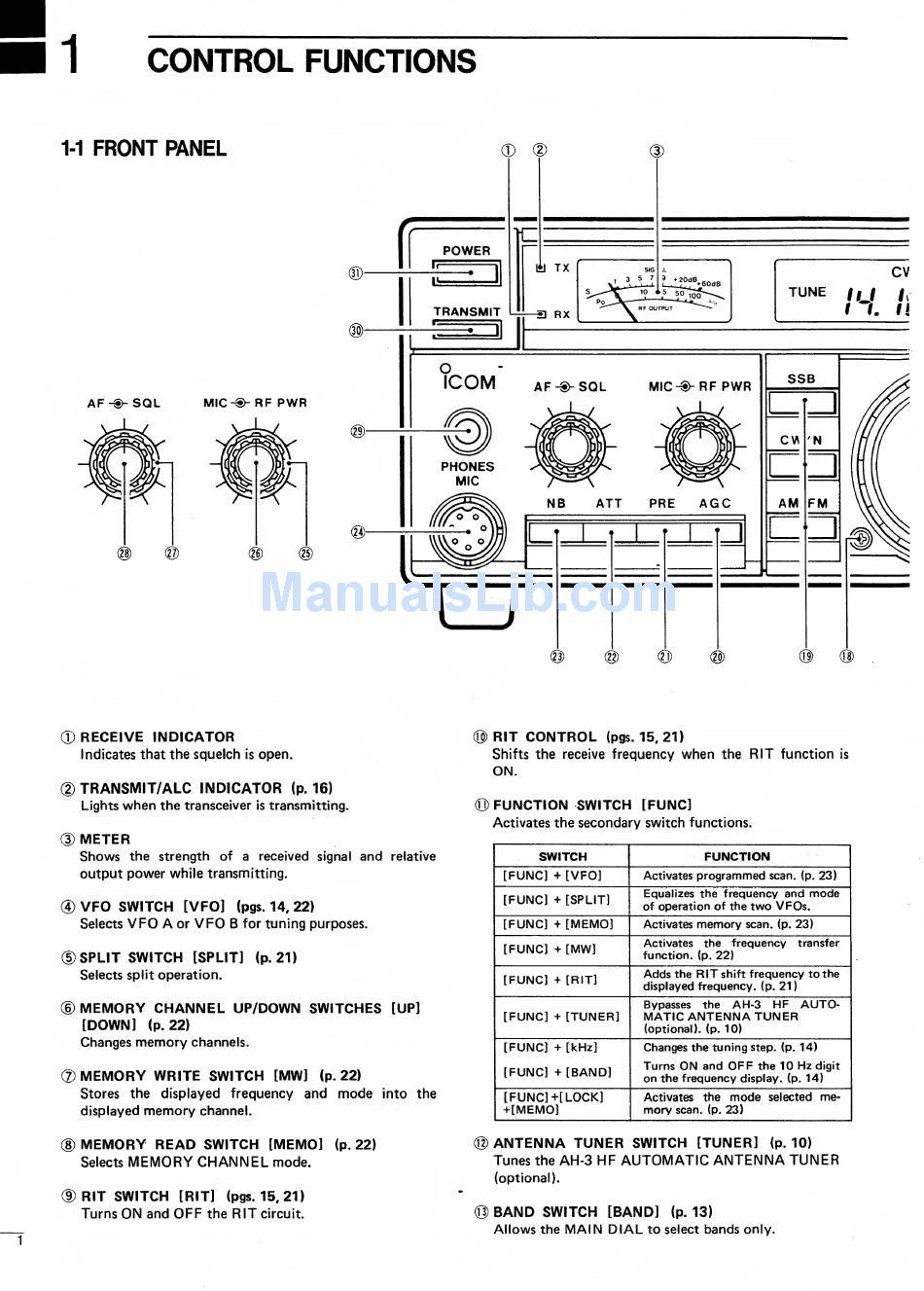

CONTROL
FUNCTIONS
1-1
FRONT
PANEL
(D <D
AF-§>-SQL MIC
-§>-
RF
PWR
(D
RECEIVE INDICATOR
Indicates that the squelch
is
open.
(D
TRANSMIT/ALC INDICATOR
(p.
16)
Lights
when
the transceiver
is
transmitting.
©
METER
Shows
the strength
of a received signal
and
relative
output
power
while
transmitting.
@
VFO
SWITCH
[VFO]
(pgs. 14,
22)
Selects
VFO A
or
VFO
B
for
tuning purposes.
©SPLIT SWITCH
[SPLIT]
(p.
21)
Selects split
operation.
©
MEMORY
CHANNEL UP/DOWN
SWITCHES
[UP]
[DOWN]
(p.
22)
Changes
memory
channels.
(7)
MEMORY
WRITE SWITCH
[MW]
(p.
22)
Stores
the displayed frequency
and
mode
into
the
displayed
memory
channel.
®
MEMORY
READ
SWITCH [MEMO]
(p.
22)
Selects
MEMORY
CHANNEL
mode.
©RIT
SWITCH
[RIT]
(pgs.
15,21)
Turns
ON
and
OFF
the
RIT
circuit.
>
RIT
CONTROL
(pgs.
15,21)
Shifts
the receive
frequency
when
the
RIT
function
is
ON.
)
FUNCTION SWITCH
[FUNC]
Activates the secondary switch functions.
SWITCH FUNCTION
[FUNC] + [VFO]
Activates
programmed
scan.
(p.
23)
[FUNC] +
[SPLIT]
Equalizes the
frequency and
mode
of operation of the
two VFOs.
[FUNC] + [MEMO]
Activates
memory
scan.
(p.
23)
[FUNC] +
[MW]
Activates the
frequency
transfer
function,
(p.
22)
[FUNC] +
[RIT]
Adds
the
RIT
shift
frequency to the
displayed frequency,
(p.
21
[FUNC] +
[TUNER]
Bypasses the
AH-3
HF AUTO-
MATIC
ANTENNA TUNER
(optional),
(p.
10)
[FUNC]
+
[kHz]
[FUNC] + [BAND]
Changes
the tuning
step.
(p.
14)
Turns
ON
and
OFF
the
10
Hz
digit
on
the
frequency
display,
(p.
14)
[FUNC]
+[
LOCK]
+[MEMO]
Activates
the
mode
selected
me-
mory
scan.
(p.
23)
©
ANTENNA TUNER
SWITCH [TUNER]
(p.
10)
Tunes
the
AH-3
HF
AUTOMATIC
ANTENNA TUNER
(optional).
(0)
BAND
SWITCH [BAND]
(p.
13)
Allows
the
MAIN DIAL
to select
bands
only.
