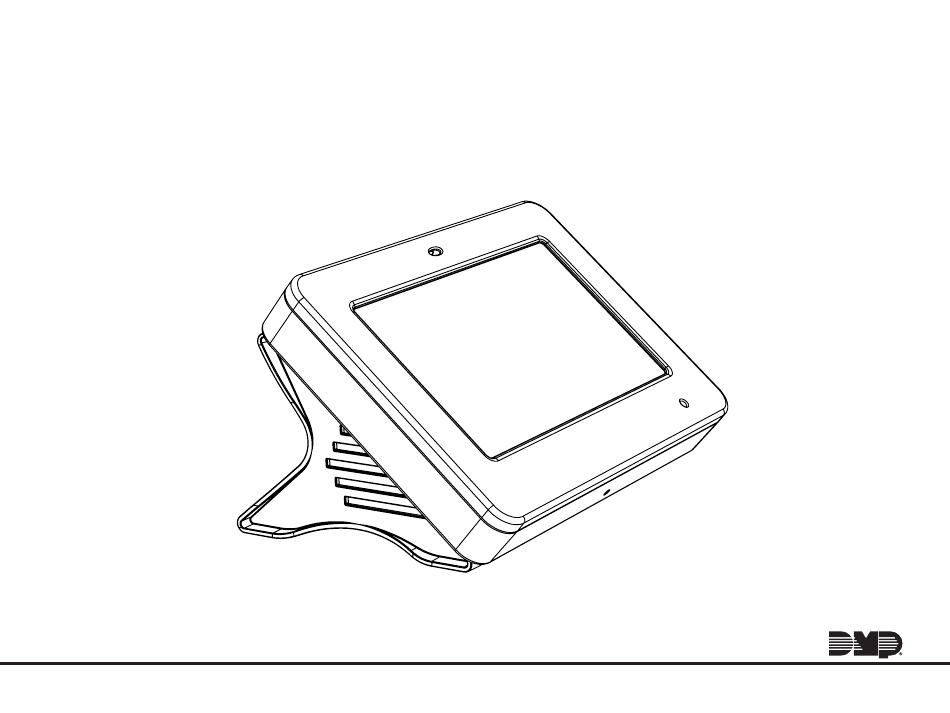

  • Page 1 XTLtouch INSTALLATION GUIDE...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS About the XTLtouch ....1 Install the Backbox ......... 12 Install the XTLtouch in the Backbox 14 Install the XTLtouch ....2 Wall Mount (XTLtouch) ......2 Additional Information ..15 Desk Stand (XTLtouchUSB) ....2 Secondary Power Supply...... 15 In-Wall............
  • Page 4 Information furnished is believed to be accurate and reliable. This information is subject to change without notice.

  • Page 5: About The Xtltouch

    The XTLtouch offers flexible features and functionality. It’s composed of an XTLplus panel with an integrated 7872 Graphic Touchscreen Keypad, providing a simple device to control and operate a system. The XTLtouch can be wall- mounted, in wall mounted, or it can provide a simple deskstand option for tabletop use.

  • Page 6: Install The Xtltouch

    For desk stand installations, you will use the included legs for tabletop use. In-Wall For in-wall installations, you will use an in wall backbox to mount the XTLtouch into the wall, creating a flush wall mount look. Pro Tip: Mount the XTLtouch near a wall outlet for the plug-in power supply.

  • Page 7: Wall Mount Installation

    WALL MOUNT INSTALLATION Mount the Backplate Press the tab and remove the backplate from the XTLtouch. See Figure 1. Backplate Figure 1: Removing the Backplate Digital Monitoring Products XTLtouch Installation Guide...
  • Page 8 Use the include mounting template, level, and #6 screws to mount the backplate to the wall. See Figure 2 for mounting hole locations. Level Figure 2: Mounting Hole Locations XTLtouch Installation Guide Digital Monitoring Products...

  • Page 9: Install The 265Lte-V-Gw

    Install the 265LTE-V-GW Cellular Communicator (Optional) Remove the set screw from the bottom of the XTLtouch. Remove the four screws from the back of the XTLtouch. Separate the base from the panel and keypad. See Figure 3. Figure 3: Installing the 265LTE-V-GW...
  • Page 10 Snap the end of the antenna on to the 265LTE-V-GW antenna patch. Insert the 265LTE-V-GW into the eight- pin CELL MODULE header, keeping it parallel to the XTLtouch. Snap the 265LTE-V-GW on to the standoff and secure it in place. Replace the base and secure it with the four screws and the one set screw.

  • Page 11: Wire For Power

    Wire for Power See Figure 5 for wire routing instructions before wiring the XTLtouch for power. Connect the XTLtouch +DC terminal to the positive terminal on the power supply. Connect the XTLtouch -DC terminal to the negative terminal on the power supply.
  • Page 12 Figure 5: Routing Wires XTLtouch Installation Guide Digital Monitoring Products...

  • Page 13: Desk Stand Installation

    265LTE-V-GW. Install the Desk Stand Legs Insert one leg into the holes in the back of the XTLtouch. Slide the leg upwards until the leg firmly snaps into place. Repeat steps 1 and 2 to install the other leg. See Figure 6.

  • Page 14: Power The Xtltouch

    Power the XTLtouch Plug the micro USB end of the cable into the back of the keypad. If desired, insert the cable into the strain relief to secure the XTLtouch from being unattached from its power source. Plug the power supply into an outlet. See Figure 7.

  • Page 15: In Wall Installation

    Place the two included #6 screws approximately 1/4” into the two locking tab holes on the rear wall of the backbox. Figure 8: Screw Locations Digital Monitoring Products XTLtouch Installation Guide...

  • Page 16: Install The Backbox

    Route the 22 AWG wires through the bottom slot in the backbox. Place the backbox in the wall space you created with the locking tabs in a vertical position. See Figure 9. Vertical Locking Figure 9: Placing the Backbox in the Wall XTLtouch Installation Guide Digital Monitoring Products...
  • Page 17 To do this, place the backbox in the wall space you created and secure it to the wall stud by using the side mounting holes. See Figure 10. Figure 10: Securing the Backbox Digital Monitoring Products XTLtouch Installation Guide...

  • Page 18: Install The Xtltouch In The Backbox

    Install the XTLtouch in the Backbox See Wall Mount Installation to wire the XTLtouch. Insert the top of the XTLtouch into the backbox at a slight angle until the XTLtouch slots connect to the backbox tabs. Push the bottom of the keypad into the backbox until the lower slots snap in to place.

  • Page 19: Additional Information

    ADDITIONAL INFORMATION SECONDARY POWER SUPPLY The XTLtouch’s 2400mAh rechargeable standby battery is used to provide four hours of battery power when DC power is not available. The battery is intended for back power only and should not operate the panel on a daily basis.
  • Page 20 3.8V 4800mAh Rechargeable Battery (required for 24 hour standby) 3.8V 2400mAh Rechargeable Battery Figure 12: Replacing the Battery XTLtouch Installation Guide Digital Monitoring Products...

  • Page 21: Accessories

    Keypad Cover 777 Protective Keypad Cover Transformer 372-500-W 12 VDC Nominal Power Supply (STC-12500W) 371-500U-W Replacment Transformer, Cable, and Strap Cellular Communicator 265LTE-V-GW Cellular Communicator (Compatible with XTLplus Series panels with Version 171 or higher) Digital Monitoring Products XTLtouch Installation Guide...

  • Page 22: Certifications

    FCC ID: CCKPC0199 IC: 5251A-PC0199 FCC Wi-Fi Network Approvals FCC ID: VW4-ATWINC1500 IC: 20266-WINC1500PB Intertek (ETL) Listed ANSI/UL 985 Household Fire ANSI/UL 1023 Household Burglar ANSI/UL 1610 Central Station Burglar ANSI/UL 1635 Digital Burglar XTLtouch Installation Guide Digital Monitoring Products...

  • Page 23: Fcc Information

    Digital Monitoring Products XTLtouch Installation Guide...
  • Page 24 Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. XTLtouch Installation Guide Digital Monitoring Products...

  • Page 25: Industry Canada

    L’exploitation est autorisée aux deux conditions suivantes: l’appareil ne doit pas produire de brouillage, et l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Digital Monitoring Products XTLtouch Installation Guide...
  • Page 28 LT-1788 1.01 18203 © 2018 Digital Monitoring Products, Inc.
