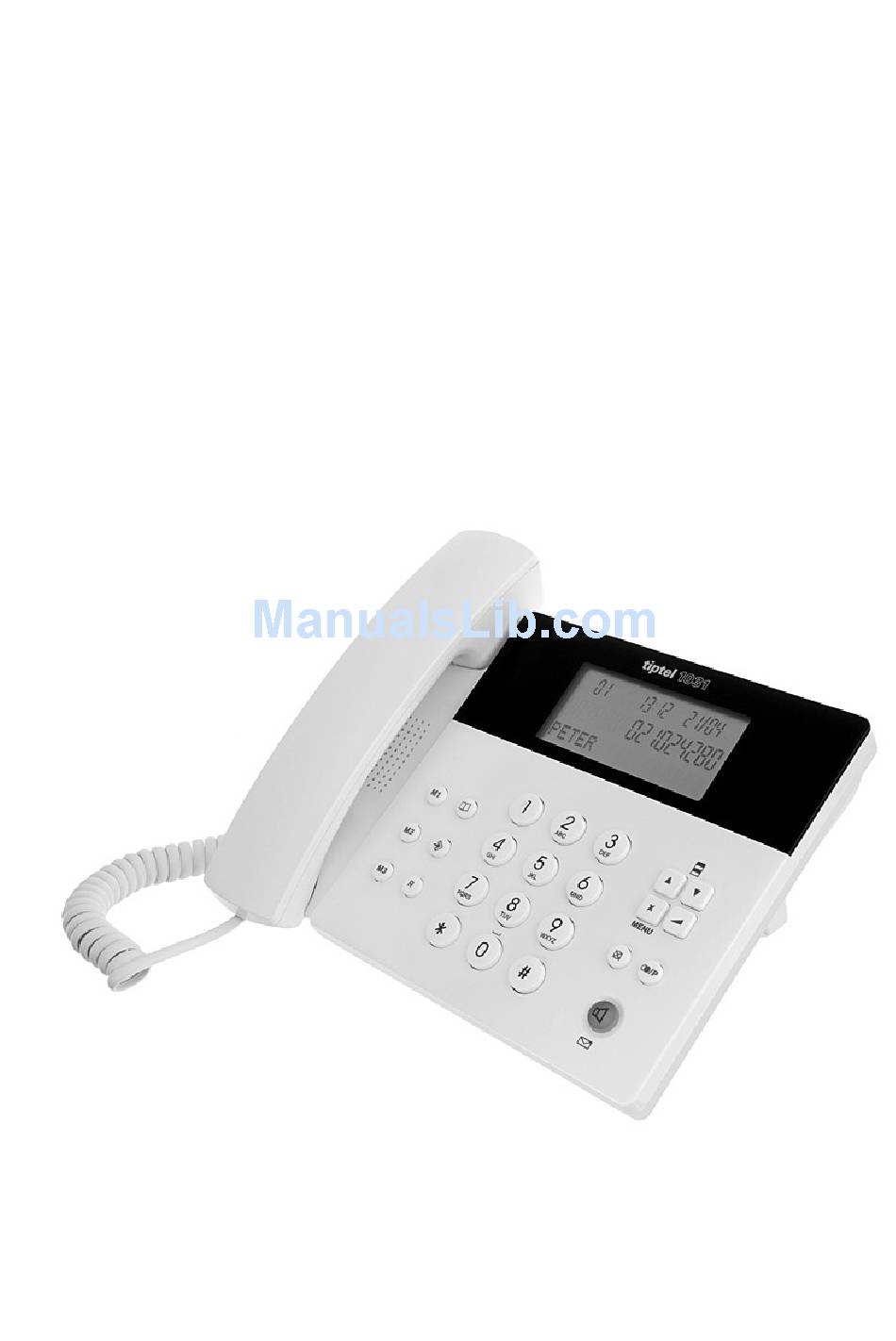

- Page 1 Manual (en) Feature Phone with hands-free operation and telephone book tiptel 1030 tiptel 1031 tiptel...
-
Page 3: Table Of Contents
Contents Contents Contents ......................3 Safety notices ....................5 Product features ....................6 Scope of delivery ..................6 Button allocation ..................... 7 Installation ....................... 9 Function setup ....................10 Set the Language ..................10 Set the Contrast ..................10 Set Year, Date and Time ................10 PABX prefix .................... - Page 4 Contents Appendix ......................16 Troubleshooting ..................16 Power failure ....................17 Technical data ..................... 17 Warranty ...................... 17 Guarantee ....................18 Declaration of conformity ................18 Disposal ...................... 18...
-
Page 5: Safety Notices
Safety notices Safety notices Please observe the following very closely when setting up, connecting and using the telephone: Only plug the connection cables into sockets designated for this use. Lay the connection cables such that they do not pose any risk of accidents. Connected cables must not be subjected to excessive mechanical stress. -
Page 6: Product Features
4 levels adjustable for handset receiver Scope of delivery Telephone device with coil cord and handset Telephone connection cable Telephone socket adapters (some country versions only) Manuals in German and English language (more languages are available at http://www.tiptel.com/) -
Page 7: Button Allocation
Button allocation Button allocation LCD Display Displays the phone number, date and time and other information. X / MENU a. Press to delete or edit the phone book and one-touch memories. b. Press for min. 3 secs to enter the main function settings. c. - Page 8 Button allocation a. In on-hook status press to review the outgoing number. b. In off-hook status press to dial the last dialed number. c. Insert a pause of 1.2 / 2.4 or 3.6 secs while editing the phone book or pre-dialing a number.
-
Page 9: Installation
Installation Installation Connect one end of the coil cord to the jack of the handset (15), connect the other end to the jack of the base unit. Plug one end of the flat cable to the line jack (16) of this phone, plug the other end to the telephone wall socket. -
Page 10: Function Setup
Function Setup Function setup Every function setup is available by using just a single key. In on-hook status, press X/MENU for a minimum of 3 seconds to enter the function menu. Pressing the very same key X/MENU repeatedly will show the different functions available one after another. -
Page 11: Set The Ring Melodies
Function Setup Set the Ring Melodies After set up the EXT. NO., press X/MENU to access the RING MELODIES setup. Press to select the melody (1-16) and press X/MENU to confirm. Set the Ring Volume After set up the RING MELODIES, press X/MENU to access the RING VOLUME setup. -
Page 12: Operation
Operation Operation Make a Call Pick up the handset or press to get dial tone and dial the number. Use X/MENU to edit the number. When the called party answers the phone, the LCD will time the call automatically. In pulse dialing mode it is possible to temporarely switch to DTMF (tone dialing) mode during a call pressing * . -
Page 13: Pre-Dial
Operation Note: Please, check flash timing in case of problems. PABX setting usually is 100 ms while network providers may use 100 ms or 300 ms. Please, ask your network provider or PBX installer (in case this device is used behind a PABX) for the appropriate setting. -
Page 14: Caller Id List
Operation Caller ID list Review In on-hook status, press to review the caller’s phone number and the time they called. Delete When you check the incoming calls, press to find the call you wish to de- lete. Press X/MENU once shortly to delete a single call. When you check the incoming calls, press to go to any call data. -
Page 15: Reset Complete Device Back To Factory Settings
Operation Dial from Phone Book In on-hook status, when reviewing the phone book and finding the number you wish to dial, press or pick up the handset to dial the stored phone number. Reset complete device back to factory settings In on-hook mode, press R for more than 8 seconds. -
Page 16: Appendix
Appendix Appendix Troubleshooting If you have difficulties on your phone’s operation, the suggestions below should solve the problems: Problem Possible cause Solution/recommendation No display, no dial tone Connector cable not making Check all cables and plug contact. connections. Display too light or too dark. Contrast not set correctly. Adjust the contrast. -
Page 17: Power Failure
Appendix Power failure The internal clock stops if there is a power failure in the telephone network. All set- tings are retained however, meaning the settings stay as they were before when power is restored. All you need to do is reset the clock. Technical data Dimensions (W x H x D): 210 x 153 x 100 mm Weight:... -
Page 18: Guarantee
Appendix Guarantee Tiptel provides a voluntary guarantee on the device, the conditions of which are published on http://www.tiptel.com. The guarantee conditions applicable at the time of purchase apply. The original sales slip (receipt, bill) with serial number and/or IMEI number is used as proof of purchase. Please keep these documents in a safe place. - Page 20 2351 Wiener Neudorf 40880 Ratingen Österreich Deutschland Tel.: 02236 677 464-0 Tel.: 0900 100–84 78 35* Fax: 02236 677 464-22 Vanity Tel.: 0900 100–TIPTEL* E-Mail: office@tiptel.at Internet: www.tiptel.de Internet: www.tiptel.at International: www.tiptel.com *(1,49 Euro/Min. aus dem Festnetz der Deutschen Telekom, abweichende Mo- bilfunkpreise möglich)
