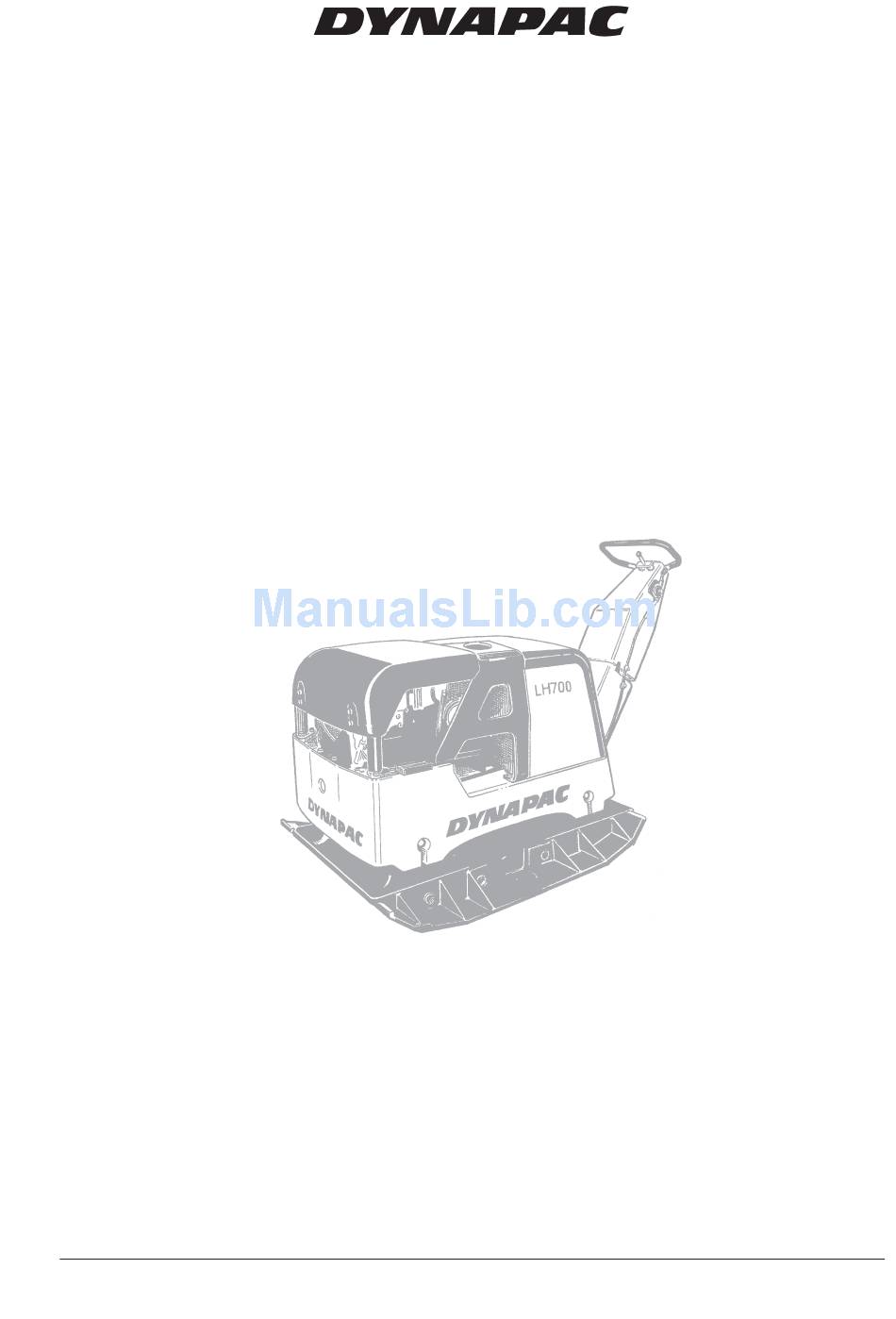

Forward and Reversible Vibrating Plates
LH700
Operation & Maintenance
ILH700EN1,March 2004
Diesel Engine:
LH700: Hatz 1D90V
These instructions apply from:
LH700 PIN (S/N) *70030170*
The Dynapac LH700 forward and reversible plate compactors are
heavy-duty plates for soil applications, ideally used for compaction of backfill in pipe
and cable trenches, as well as road repair and maintenance work.
They are fully hydraulic, which greatly improves the engine plate's devibration.
The LH design includes a strong cover that withstands severe shock and also protects all vital
parts of the machine. The engine cover is foldable for easier access and service. The LH plates
are designed for operation in well ventilated spaces, as all combustion engine machines.
Reservation for changes.
Printed in Sweden.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LH700 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynapac LH700

  • Page 1 These instructions apply from: LH700 PIN (S/N) *70030170* The Dynapac LH700 forward and reversible plate compactors are heavy-duty plates for soil applications, ideally used for compaction of backfill in pipe and cable trenches, as well as road repair and maintenance work.
  • Page 2: Table Of Contents

    Read through the entire manual before its constituents are known to the State starting any maintenance operations. of California to cause cancer, birth defects, and other reproductive harm. WARNING Ensure good ventilation (air extraction) if the engine is run indoors. LH700 ILH700EN1...
  • Page 3: General

    There are additional instructions relating to the engine, for which the manufacturer’s instructions are detailed in the engine manual. MACHINE PLATE Fill in all data below, when delivering and commissioning the machine. L000473A L000474A Serial number on frame ................Engine Model Engine Number LH700 ILH700EN1...
  • Page 4: Safety Instructions (For All Light Products)

    Use only the accessories recom- • High-visibility clothing mended by Dynapac. If modifications • Protective gloves not approved by Dynapac are carried • Protective shoes out, these could result in serious in- Avoid wearing loosely fitting clothing that might jury to yourself or other personnel.
  • Page 5 There is a risk of carbon monoxide poisoning. Use the machine only for the purpose for which it is intended. Make sure you know how to stop the machine quickly in the event of an emer- gency situation. LH700 ILH700EN1...
  • Page 6 In all cases of uncertainty with regard to durability or wear, replace the hoses with new original hoses from Dynapac. Working with battery The battery contains poisonous and corrosive sulphuric acid.
  • Page 7: Safety When Driving

    Be careful when driving on slopes. Remember that L000264A loose ground, vibration switched ON, and driving speed Driving on slopes can all cause the machine to topple even on a smaller slope than specified here. WARNING Never leave the machine unattended with the engine running. LH700 ILH700EN1...
  • Page 8: Safety Decals, Location/Description

    SAFETY DECALS, LOCATION/DESCRIPTION L000630A LH700 ILH700EN1...
  • Page 9 Lock the handle during Keep your hands at a safe transport. distance from the danger zone. Alt. 2 Alt. 1 Bio-Hydr. 281898 904601 Diesel Use ear Lifting Hydraulic Hydraulic protectors point fluid bio-fluid 791297 Guaranteed Sound Power level LH700 ILH700EN1...
  • Page 10: Fuel And Lubricants

    Service parts P/N Hatz 1D90V Engine air filter element 23 94 23 Engine oil filter 23 93 26 Engine fuel filter 93 74 30 Hydraulic filter 28 41 79 Hydraulic filter, biodegradable. oil 38 15 51 LH700 ILH700EN1...
  • Page 11: Technical Data

    EU directive 2000/14/EC. Guaranteed acoustic power level dB (A) Sound-pressure level at the operator’s ear (ISO 6396) dB (A) Hand and arm vibration (ISO 5349-1) During operation these values may differ because of the actual operational conditions. LH700 ILH700EN1...
  • Page 12: Technical Data - Dimensions

    795 (31) mm (inch) 1180 (46) mm (inch) 1050 (41) Contact area, (sq feet) 0,290 (3,12) Accessories LH700 Extension plates Width, mm 2x75=150 2x150=300 Weight, kg 14,6 / 24,6 Contact area, m Width 150: 0,356 Width 300: 0,422 LH700 ILH700EN1...
  • Page 13: Handle Position

    When transport- ing the machine, raise the handle and push it to locked position. WARNING Hold the handle while releasing the catch. L000437 Working position LH700 ILH700EN1...
  • Page 14: Handle Adjustments

    (2). CAUTION The charging and oil pressure lamps must be extinguished during normal operation. If the lamps do not go out, stop the machine and take corrective action. L000441 1. Oil pressure lamp 2. Charging lamp LH700 ILH700EN1...
  • Page 15: Operation - Hatz 1D90V, El.start

    CAUTION If the engine fails to start, turn the key to zero and wait 5 to 10 seconds before making a new attempt to start (Fitted with electronic starting protection module). LH700 ILH700EN1...
  • Page 16: Operation – Hatz 1D90V, El.start

    WARNING Always remove the key when you leave the machine, and keep it in a safe place. This will make it difficult for any unauthorized person L000458 to start and drive the machine. LH700 ILH700EN1...
  • Page 17: Operation

    3. Forward (slowly move the hydraulic lever forward). L000441 4. Reverse (slowly move the hydraulic lever back- wards). 5. Stationary (slowly move the hydraulic lever in the opposite direction until the machine stops). WARNING In an emergency—press the emergency knob. L000644 LH700 ILH700EN1...
  • Page 18: Lifting And Transportation

    The operating mass is printed on the machine plate. Add weight of extensioners if mounted. L000631 Transportation WARNING Always secure the machine firmly during all transportation. Place lashing band in a U shape around the bottom plate and secure both front and rear. L000632 LH700 ILH700EN1...
  • Page 19: Maintenance - Service Points

    Clean / replace oil filter See engine manual. Clean / replace air cleaner elements See engine manual. Check and adjust the engine valve clearance See engine manual. Monthly Item in fig.1 Maintenance see page Comments Check fluid level in hydraulic reservoir LH700 ILH700EN1...
  • Page 20: Maintenance – Service Points

    See engine manual. Every 1000 hours of operation Item in fig.1 Maintenance see page Comments Change eccentric element oil 10, 11 Change hydraulic fluid and filter Lap intake and exhaust valves See engine manual. Replace piston rings See engine manual. LH700 ILH700EN1...
  • Page 21: Maintenance - Every 10 Hours Of Operation

    When washing the machine, do not aim a jet of water jet directly at the fuel cap. This is especially important when using a high-pressure jet. Put a plastic bag over the filler cap of the fuel tank and secure with an elastic band. L000467 LH700 ILH700EN1...
  • Page 22: Maintenance - Every 100 Hours Of Operation

    1. Oil dipstick manner. 2. Oil filter 3. Oil drain plug/drain hose 2. Lubricate controls. 3. Check fluid level (1) in hydraulic reservoir. Volume: 28.0 lit. (7.4 gal) Shell Tellus TX68 Biodegradable oil: Shell Naturelle HF-E46 L000469 1. Sight glass LH700 ILH700EN1...
  • Page 23: Maintenance - Every 500 Hours Of Operation

    2. Change engine oil (See engine manual). 3. Replace oil filter (See engine manual). 4. Replace air cleaner element (See engine manual). L000466 Save the oil and dispose of it in an approved manner. Also dispose of used oil filters properly. LH700 ILH700EN1...
  • Page 24: Maintenance - Every 1000 Hours Of Operation

    3. Grease the surfaces between the eccentric element and the bottom plate. 4. Refill with 0,5l oil. 5. Mount a new O-ring (3), P/N: 904923. 6. Torgue the screws(4) crosswise dry to 320 Nm. L000587A 1. Eccentric element 2. Oil basin 3. O-ring 4. Screws LH700 ILH700EN1...
  • Page 25 Dynapac Compaction Equipment AB Box 504, SE-371 23 Karlskrona, Sweden Phone: +46 455 30 60 00 Fax: +46 455 30 60 30 www.dynapac.com...
