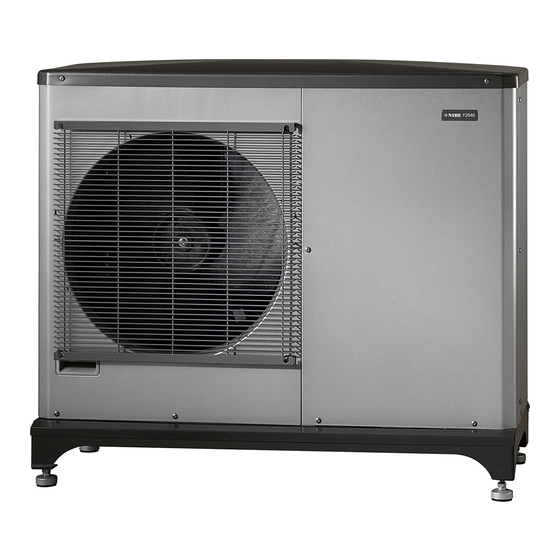

Nibe F2040 User Manual
Air/water heat pump 6, 8, 12, 16 – uk 1x230v
Hide thumbs
Also See for F2040:
- Technical manual (116 pages) ,
- Service manual (96 pages) ,
- Installer manual (92 pages)
Subscribe to Our Youtube Channel
Related Manuals for Nibe F2040
Summary of Contents for Nibe F2040
-

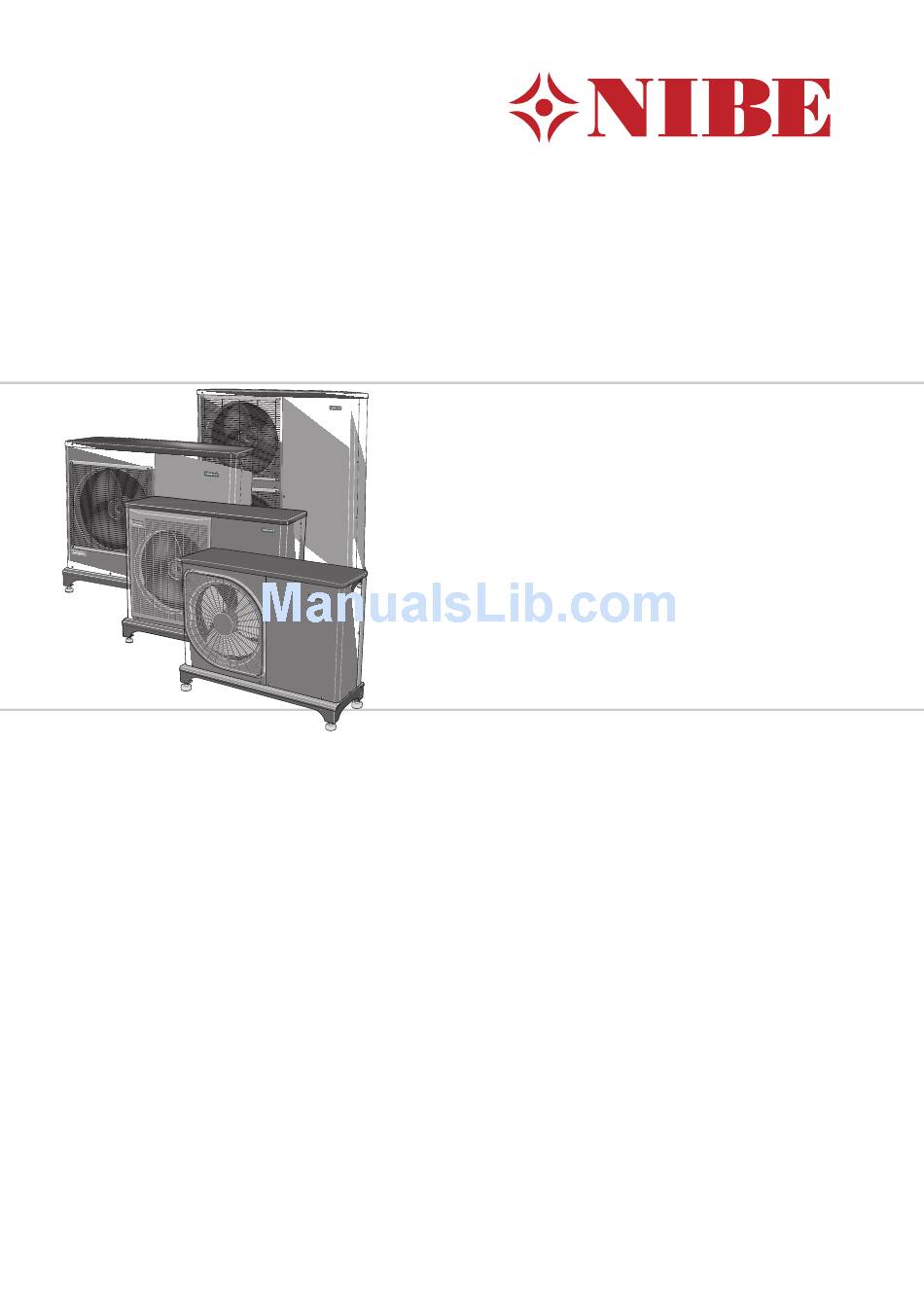

Page 1: User Manual
User manual F2040 6, 8, 12, 16 – UK 1x230V Air/water heat pump UHB EN 1746-4 231847... -
Page 2: Table Of Contents
1 Important information Installation data Safety information Serial number Country specific information F2040 – An excellent choice 2 The heat pump – the heart of the house Heat pump function Contact with F2040 Maintenance of F2040 3 Disturbances in comfort... -
Page 3: Important Information
Product F2040 Serial number Installation date Installer Serial number must always be given Certification that the installation is carried out according to instructions in NIBE's installer manual and applicable regulations. Date __________________ Signed _________________________ Chapter 1 | Important information F2040... -
Page 4: Safety Information
Rights to make any design or technical modifications are reserved. ©NIBE 2017. NOTE F2040 must be installed via an isolator switch with a minimum breaking gap of 3 mm. NOTE If the supply cable is damaged, only NIBE, its service representative or similar authorised person may replace it to prevent any danger and damage. - Page 5 The CE mark is obligatory for most products sold in the EU, regardless of where they are made. IP24 Classification of enclosure of electro-technical equipment. Danger to person or machine. Read the User Manual. Chapter 1 | Important information F2040...
-
Page 6: Serial Number
Serial number The serial number for F2040 can be found on the side of the foot. Serial number Caution You need the product's (14 digit) serial number for servicing and support. Chapter 1 | Important information F2040... -
Page 7: Country Specific Information
Authority of intention to install. Use only manufacturer’s recommended replacement parts. Nibe is a licensed member of the Benchmark Scheme which aims to im- prove the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance. -
Page 8: F2040 - An Excellent Choice
The material has been chosen for a long service life. ■ Many possibilities F2040 is intended to be combined with NIBE indoor module VVM / NIBE control module SMO. There is a wide range of system solutions and ac- cessories for indoor modules and control modules. -
Page 9: The Heat Pump - The Heart Of The House
5 °C -3 °C -3 °C 0 °C 2 °C Heat source Värmekälla The temperatures are only examples and may vary between different installations and time of year. Chapter 2 | The heat pump – the heart of the house F2040... - Page 10 The heating medium circulates in a closed system and transports the heated water's heating energy to the house water heater and radiators/heating coils. The temperatures are only examples and may vary between different installations and time of year. Chapter 2 | The heat pump – the heart of the house F2040...
-
Page 11: Contact With F2040
Contact with F2040 F2040 is controlled in various ways depending on your system. Your contact with the heat pump takes place via your indoor module (VVM) or control module (SMO). See relevant manual for more information. During installation, the installation engineer adjusts the necessary settings for the heat pump in the indoor module or control module, so that the heat pump works optimally in your system. -
Page 12: Maintenance Of F2040
When your heat pump is located outdoors some external maintenance is required. NOTE Insufficient maintenance can cause serious damage to F2040, which is not covered by the guarantee. Checking grilles and bottom panel Check that the inlet grille is not clogged by leaves, snow or anything else regularly throughout the year. - Page 13 Silent mode The heat pump can be set to "silent mode", which reduces the heat pump's noise level. The function is useful when F2040 must be placed in noise sensitive areas. The function should only be used for limited periods as F2040 may not reach its dimensioned output.
- Page 14 (kWh) Opera- Standby tion TV (Operation: 5 h/day, Standby: 19 h/day) Digital box (Operation: 5 h/day, Standby: 19 h/day) DVD (Operation: 2 h/week) Chapter 2 | The heat pump – the heart of the house F2040...
- Page 15 Check the accommodation's energy meter regularly, preferably once a month. This will indicate any changes in power consumption. Newly built houses usually have twin energy meters, use the difference to calculate your domestic electricity. Chapter 2 | The heat pump – the heart of the house F2040...
- Page 16 After 1-2 years the heating curve should be adjusted again, as well as the offset heating curve and the building's thermostat valves, because the heating system, as a rule, requires a lower temperature once the drying process is complete. Chapter 2 | The heat pump – the heart of the house F2040...
-
Page 17: Disturbances In Comfort
NOTE F2040 communicates all alarms to the indoor module/control module (VVM / SMO). Basic actions Make sure that the air flow to F2040 is not blocked by foreign objects. ■ Check that F2040 does not have any external damage. ■... -
Page 18: Technical Data
4 Technical data Detailed technical specifications for this product can be found in the in- stallation manual (www.nibe.co.uk). Chapter 4 | Technical data F2040... -
Page 19: Glossary
Charge coil A charge coil heats the domestic hot water (tap water) in the water heater with heating water (heating medium) from F2040. Charge pump See "Circulation pump". Circulation pump Pump that circulates liquid in a pipe system. -
Page 20: Domestic Hot Water
Evaporator Heat exchanger where the refrigerant evaporates by retrieving heat energy from the air which then cools. Chapter 5 | Glossary F2040... -
Page 21: Expansion Valve
A low pressure pressostat trips if the evaporation pressure is too low. Radiator Another word for heating element. They must be filled with water in order to be used with F2040. Chapter 5 | Glossary F2040... -
Page 22: Safety Valve
Supply temperature The temperature of the heated water sent by the heat pump to the heating system. Water heater Container where domestic water is heated. Is located somewhere outside the heat pump. Chapter 5 | Glossary F2040... -
Page 23: Item Register
Safety information, 4 Serial number, 6 In event of long power cuts, 13 Installation data, 3 Large amount of water below F2040, 17 Maintenance of F2040, 12 In event of long power cuts, 13 Regular checks, 12 Saving tips, 13... - Page 28 WS name: -Gemensamt WS version: a423 WS release date: 2017-09-25 11:38 Publish date: 2017-11-24 08:33 NIBE Energy Systems Ltd 3C Broom Business Park Bridge Way Chesterfield S41 9QG Phone 0845 095 1200 Fax 0845 095 1201 info@nibe.co.uk www.nibe.co.uk 231847...
