Summary of Contents for Nibe F2040
-

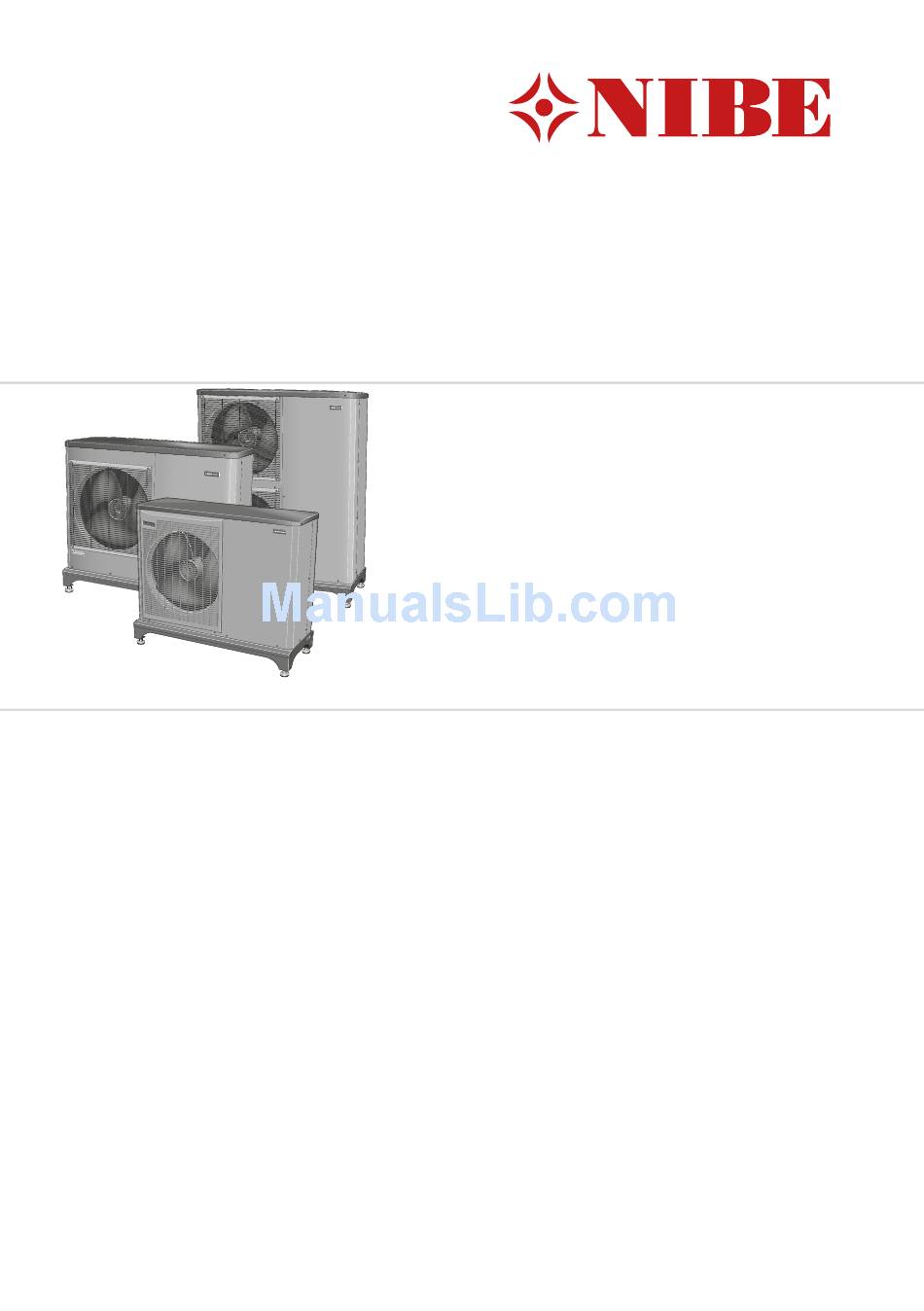

Page 1: User Manual
User manual NIBE™ F2040 8, 12, 16 kW Air/water heat pump UHB GB 1335-2 231845... -
Page 3: Table Of Contents
Table of Contents 1 Important information Installation data Safety information Serial number Contact information F2040 - An excellent choice 2 The heat pump – the heart of the house Heat pump function Contact with F2040 Maintenance of F2040 3 Disturbances in comfort... -
Page 4: Important Information
Product F2040 Serial number Installation date Installer Serial number must always be given Certification that the installation is carried out according to instructions in NIBE's installer manual and applicable regulations. Date __________________ Signed _________________________ Chapter 1 | Important information NIBE™ F2040... -
Page 5: Safety Information
This symbol indicates tips on how to facilitate using the product. Marking The CE marking means that NIBE ensures that the product meets all regu- lations that are placed on it based on relevant EU directives. The CE mark is obligatory for most products sold in the EU, regardless where they are made. -
Page 6: Serial Number
Serial number The serial number for F2040 can be found on the side of the foot. F2040-8 Serial number Chapter 1 | Important information NIBE™ F2040... - Page 7 F2040-12 Serial number Chapter 1 | Important information NIBE™ F2040...
- Page 8 F2040-16 Serial number Caution Always give the product's serial number when reporting a fault. Chapter 1 | Important information NIBE™ F2040...
-
Page 9: Contact Information
Puh: 09-274 697 0 Fax: 09-274 697 40 E-mail: info@nibe.fi www.nibe.fi AIT France, 10 rue des Moines, 67000 Haguenau Tel : 03 88 06 24 10 Fax : 03 88 06 90 15 E-mail: info@nibe.fr www.nibe.fr NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QG Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: info@nibe.co.uk... - Page 10 NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 Markaryd Tel: +46-(0)433-73 000 Fax: +46-(0)433-73 190 E-mail: info@nibe.se www.nibe.se For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information. Chapter 1 | Important information...
-
Page 11: F2040 - An Excellent Choice
Nordic outdoor conditions. The material has been chosen for a long service life. Many possibilities F2040 can with a NIBE hot water module, be used together with most electric boilers, oil boilers or similar. Silent operation F2040 has a silent operation function that allows scheduling when F2040 must operate at an even quieter noise level. -
Page 12: The Heat Pump - The Heart Of The House
Expansionsventil Kompressor Förångare 0 °C 5 °C -3 °C 2 °C The temperatures are only examples and may vary between different installations and time of year. Chapter 2 | The heat pump – the heart of the house NIBE™ F2040... - Page 13 The temperatures are only examples and may vary between different installations and time of year. Chapter 2 | The heat pump – the heart of the house NIBE™ F2040...
-
Page 14: Contact With F2040
Contact with F2040 F2040 has an integrated control system that controls and monitors the heat pump operation. At installation the installation engineer makes the necessary settings of the control system on the indoor module, so that the heat pump works optimally in your system. -
Page 15: Maintenance Of F2040
When your heat pump is located outdoors some external maintenance is required. NOTE Insufficient oversight can cause serious damage to F2040 which is not covered by the guarantee. Checking grilles and bottom panel Check that the inlet grille is not clogged by leaves, snow or anything else regularly throughout the year. -
Page 16: In Event Of Long Power Cuts
Care must be exercised so that the heat pump is not scratched when cleaning. Avoid spraying water into the grilles or the sides so that water penetrates into F2040. Prevent F2040 coming into contact with alkaline cleaning agents. In event of long power cuts In the event of prolonged power failures it is recommended that the part of the heating system located outdoors is drained. - Page 17 Flat-screen (Operation: 5 h/day, Standby: 19 h/day) Digital box (Operation: 5 h/day, Standby: 19 h/day) DVD (Operation: 2 h/week) TV games console (Operation: 6 h/week) Radio/stereo (Operation: 3 h/day) Chapter 2 | The heat pump – the heart of the house NIBE™ F2040...
- Page 18 Check the accommodation's energy meter regularly, preferably once a month. This will indicate any changes in power consumption. Newly built houses usually have twin energy meters, use the difference to calculate your domestic electricity. Chapter 2 | The heat pump – the heart of the house NIBE™ F2040...
- Page 19 After 1-2 years the heating curve should be adjusted again, as well as the heating curve offset and the building's thermostat valves, because the heating system, as a rule, requires a lower temperature once the drying process is complete. Chapter 2 | The heat pump – the heart of the house NIBE™ F2040...
-
Page 20: Disturbances In Comfort
The following tips can be used to rectify comfort disruption: Basic actions Start by checking the following possible fault sources: That the heat pump is running or that the supply cable to F2040 is connected. Group and main fuses of the accommodation. -
Page 21: Low Room Temperature
See the manual for the indoor module. F2040 is not operational F2040 communicates all alarms to the indoor module. Ensure that the F2040 is connected to the power source. Check the indoor module. See section "Disturbances in comfort" in the installation manual for the indoor module. -
Page 22: Technical Data
4 Technical data Detailed technical specifications for this product can be found in the in- stallation manual (www.nibe.eu). Chapter 4 | Technical data NIBE™ F2040... -
Page 23: Glossary
Charge coil A charge coil heats the domestic hot water (tap water) in the heater with heating water from F2040. Charge pump See "Circulation pump". Circulation pump Pump that circulates liquid in a pipe system. -
Page 24: Domestic Hot Water
(to the house radiators/elements). The heat pump heats the boiler water, which in addition to going out to the all the house radiators/elements, heats the domestic hot water in the inner vessel. Chapter 5 | Glossary NIBE™ F2040... -
Page 25: Expansion Valve
Another term for this is COP. Heating medium Hot liquid, usually normal water, which is sent from the heat pump to the house climate system and makes the accommodation warm. The heating medium also heats the hot water. Chapter 5 | Glossary NIBE™ F2040... -
Page 26: Heating Medium Side
Radiator Another word for heating element. They must be filled with water in order to be used with F2040. Refrigerant Substance that circulates around a closed circuit in the heat pump and that, through pressure changes, evaporates and condenses. During evap- oration, the refrigerant absorbs heating energy and during condensing, gives off heating energy. - Page 27 Supply temperature The temperature of the heated water sent by the heat pump to the heating system. Chapter 5 | Glossary NIBE™ F2040...
-
Page 28: Item Register
Contact information, 7 Contact with F2040, 12 Control module's function, 10 Disturbances in comfort Troubleshooting, 18 F2040 – An excellent choice, 9 Glossary, 21 Heat pump function, 11 Important information, 2 Contact information, 7 F2040 – An excellent choice, 9... - Page 29 Chapter 6 | NIBE™ F2040...
- Page 30 Chapter 6 | NIBE™ F2040...
- Page 32 NuTech Renewables Ltd Unit 11, Warrenpoint Enterprise Centre Newry Road, Warrenpoint Co.Down, BT34 3LA Tel: + 44 28 417 53031 Email: info@nutechrenewables.com www.nutechrenewables.com NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd info@nibe.se www.nibe.eu 231845...
