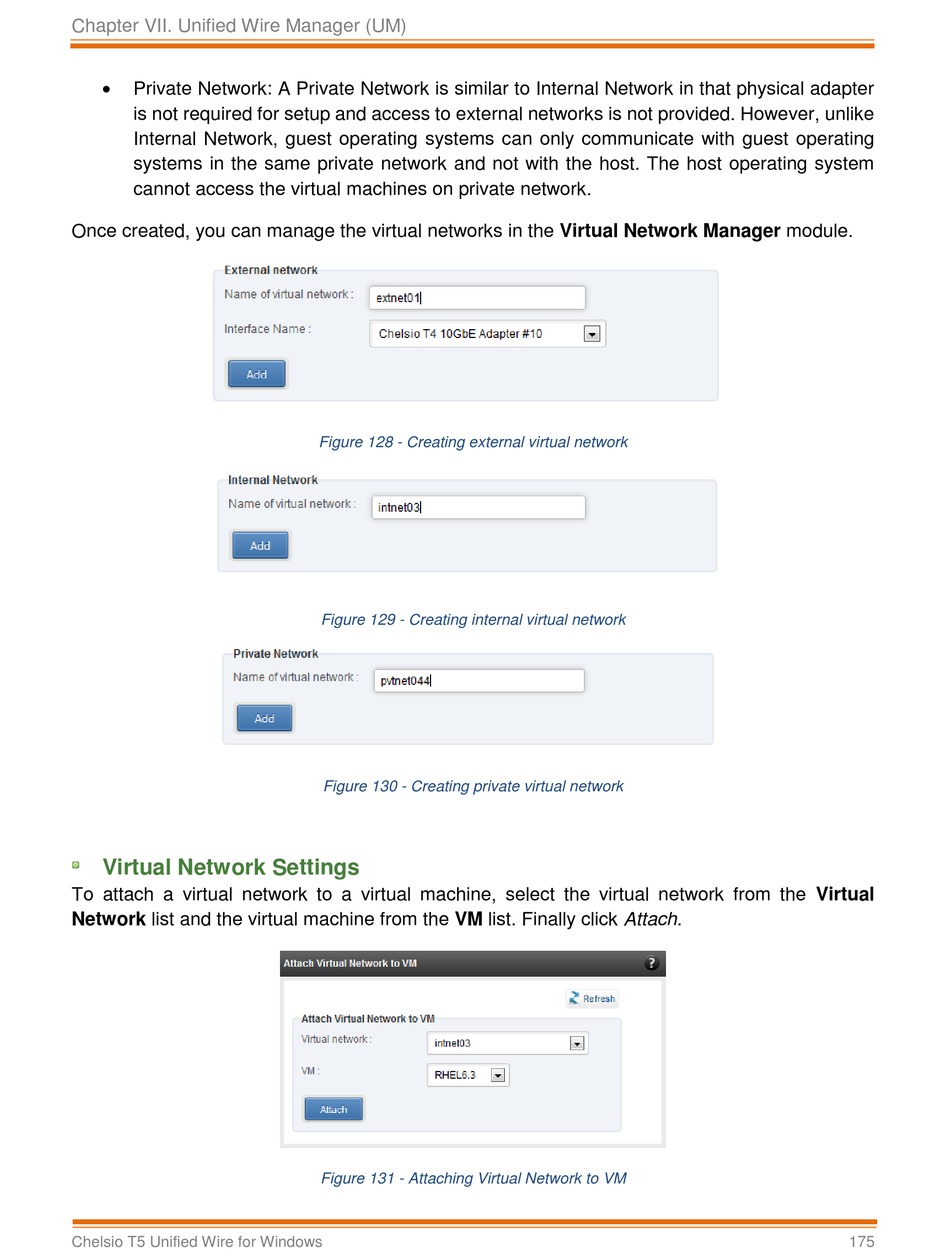

Chapter VII. Unified Wire Manager (UM)

Private Network: A Private Network is similar to Internal Network in that physical adapter
is not required for setup and access to external networks is not provided. However, unlike
Internal Network, guest operating systems can only communicate with guest operating
systems in the same private network and not with the host. The host operating system
cannot access the virtual machines on private network.
Once created, you can manage the virtual networks in the Virtual Network Manager module.
Virtual Network Settings
To attach a virtual network to a virtual machine, select the virtual network from the Virtual
Network list and the virtual machine from the VM list. Finally click Attach.
Chelsio T5 Unified Wire for Windows
Figure 128 - Creating external virtual network
Figure 129 - Creating internal virtual network
Figure 130 - Creating private virtual network
Figure 131 - Attaching Virtual Network to VM
