Chapter VII. Unified Wire Manager (UM)
System Diagnostics
Using this module, you can run various diagnostic tests on Chelsio adapters to troubleshoot
adapter related issues. Select the adapter(s) from the list for which you want to run the test, select
the operation (type of test; you can run more than one test at a time) and click Run Test. After
the tests are completed, the results will be displayed in a tabular format.

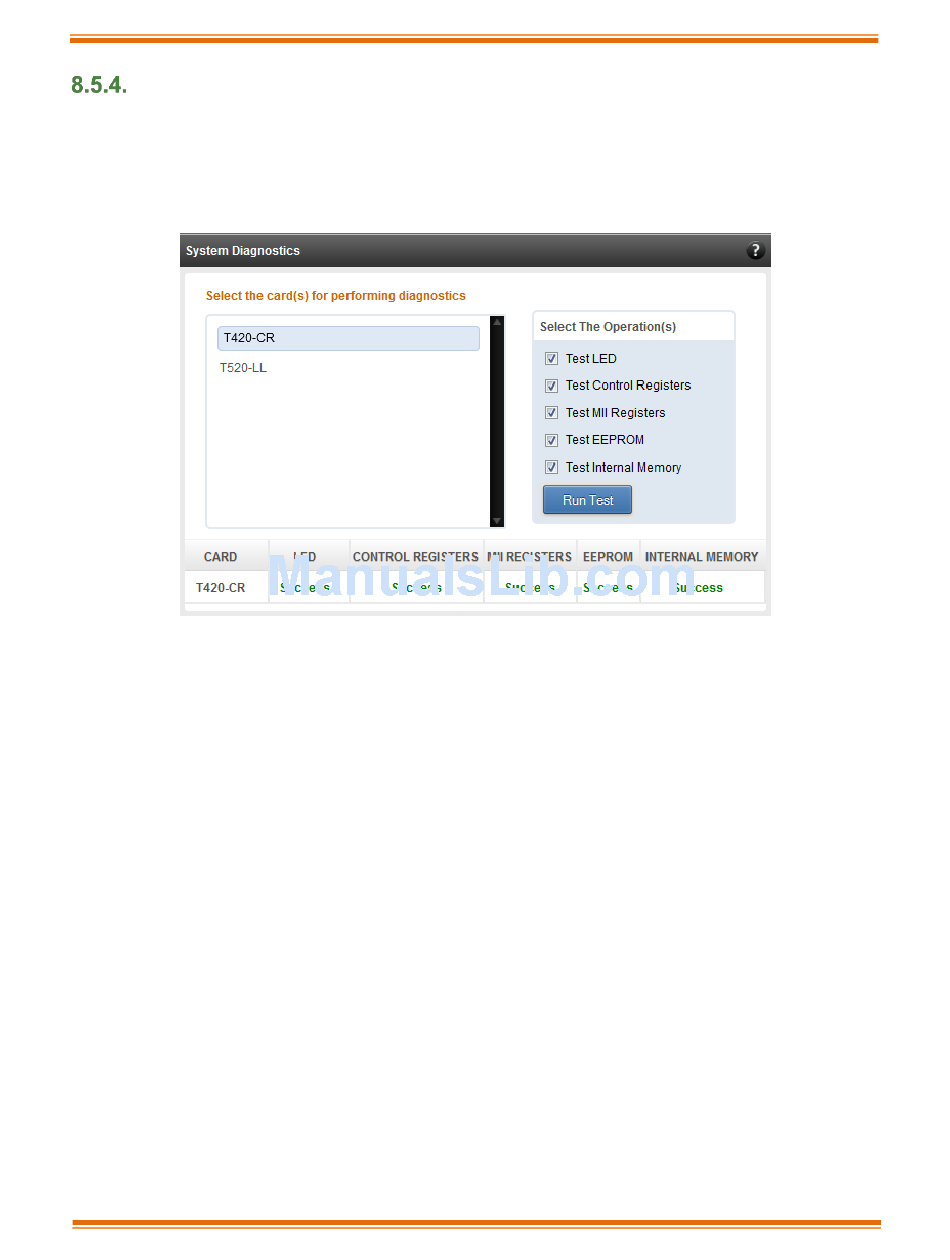

Figure 105 - System Diagnostics module for a T4 CNA
Chelsio T5 Unified Wire for Windows 161
