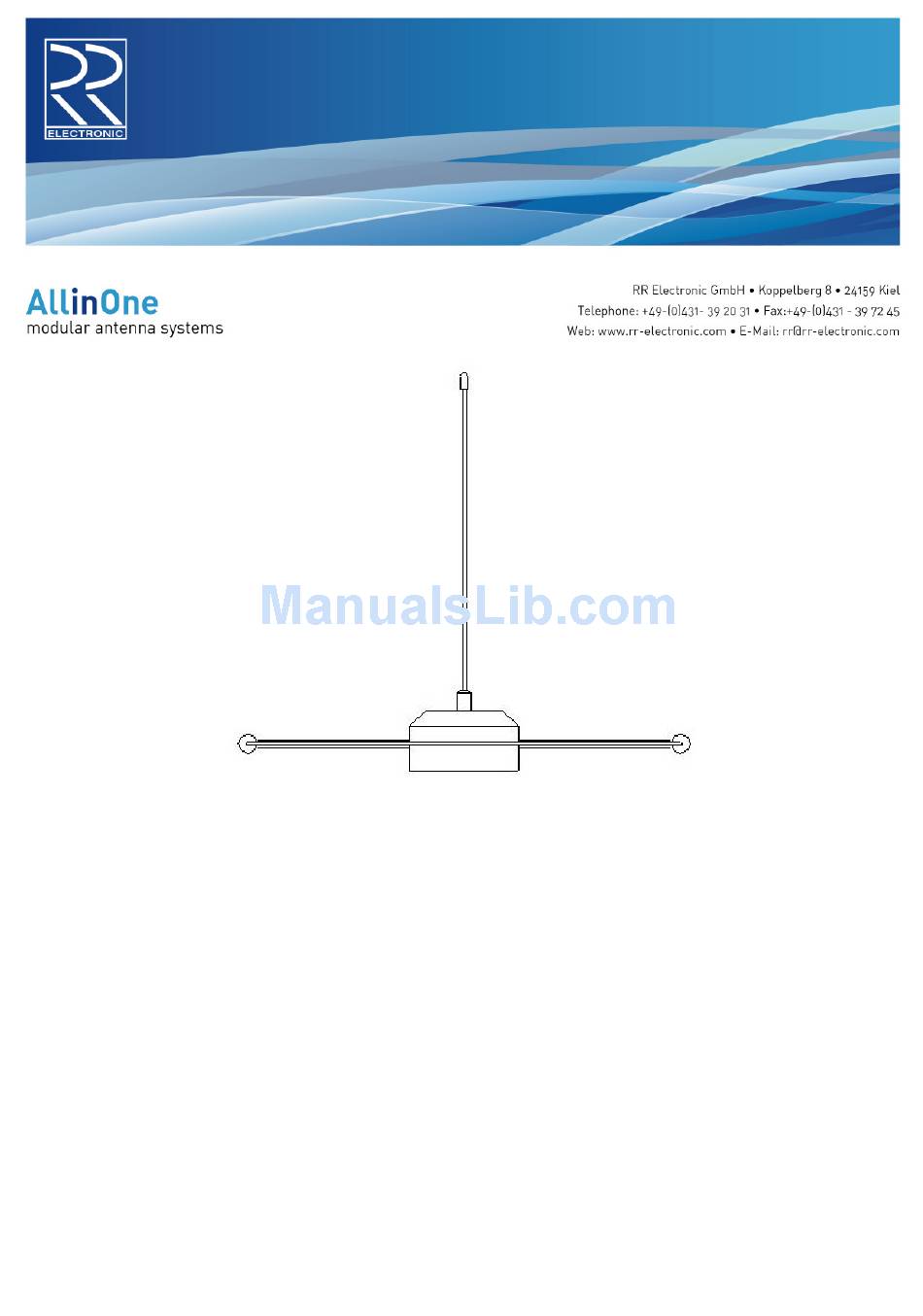

- Page 1 Alpha Antenne für Antenna for UKW Seefunk, VHF Marine Radio, DVB-T(2), FM, DAB+ DVB-T(2), FM, DAB+ Einbauanleitung Mounting Instructions...
- Page 2 Seiten einen SMA-Stecker. Es wird mit dem Anschluss „Input Alpha 1C Alpha 2T Alpha 3V“ des Verteilers DB2C verbunden. Die Ausgänge „Output 1“ und „Output 2“ des Veteilers werden mit einem DVB-T Empfänger oder einem FM- oder T-DAB-Radio verbunden.
- Page 3 Antenne ein Widerstand von ca. 3,5 kOhm gemessen. 5. Überprüfen der Ausgangsspannung vom DB2C zur Antenne: 5 V 6. Ist die Antenne Alpha 3V direkt an den TV-Empfänger angeschlossen, prüfen, dass die Antennenspannung in den TV-Einstellungen eingeschaltet ist.
- Page 4 TV / Radio at the DB2C side of the cable. Connect the cable to the „Input Alpha 1C Alpha 2T Alpha 3V“ of the DB2C. Connect the DVB-T receiver or FM / T-DAB radio to „Output 1“ and „Output 2“ of the DB2C using 75 Ohm cables with F connectors at the DB2C output. If only one of the outputs is used, screw the supplied 75 Ohm termination resistor to the unused output.
- Page 5 Any faults caused from neglecting these instructions are excluded from the manufacturers warranty. In case of doubt consult a specialist. Trouble shooting of antenna system Alpha 3V a) No TV / Radio reception Check that the LED “Power ON” is iluminated. Otherwise check that the power supply to the DB2C is available and check the fuse inside the DB2C (0.125A medium blow;...
- Page 6 Antenna system Alpha 3V Installation diagram (with DB2C) Alpha 3V Option Antenna holder AH3V RP-SMA Plug SMA Plug H-155 max. 20m SMA female Plug SMA Plug SMA Plug SMA female Plug SMA Plug Distribution Box DB 2C +Batt. Input Alpha 1C...
- Page 7 Antenna Alpha 3V Installation diagram (without DB2C) Alpha 3V Option Antenna holder AH3V RP-SMA Plug SMA Plug H-155 max. 20m SMA female Plug SMA Plug SMA Plug SMA female Plug IEC Plug TV (with antenna supply) VHF / AIS-Splitter Specifications subject to change without notice...
