Summary of Contents for Schmidt OS8000

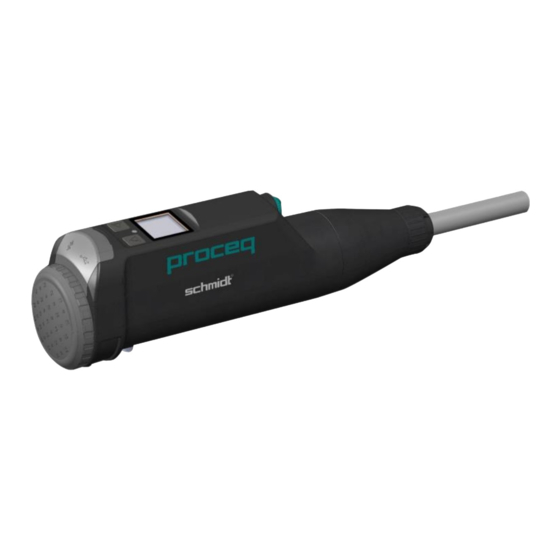

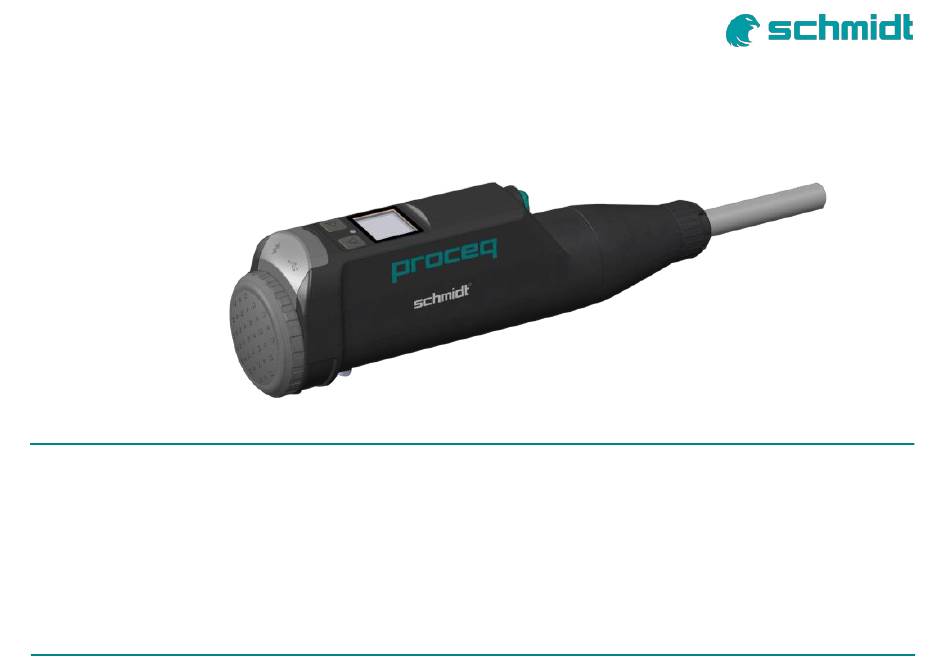

- Page 1 Original Schmidt OS8000 Quick Reference...
-
Page 2: Instrument Overview
Instrument Overview On/Off, Navigation buttons Screen Plunger Micro USB slot and Bluetooth dongle Battery slot Rebound number scale... -
Page 3: Buttons - Overview
BUTTONS - Overview Device ON/OFF Device ON/OFF Short push Power ON Short push Power ON Long push Power OFF Long push Power OFF (>5s) (>5s) Operation Operation Short push Scroll right, select, adjust Short push Scroll down Long push Start new series Long push Backlight on/off (>1.4s) -
Page 4: Main Screen Overview
MAIN SCREEN - Overview MODE Battery indicator Standard / Last impact Impact No. Series ID... -
Page 5: Main Menu Overview
MAIN MENU - Overview Configuration of operation mode Mode LIVE using the app PRINT using a BT printer (Print versions only) Select standard MEAN → Arithmetic mean of the rebound values (min 3 impacts) Standard EN → Rebound value according to EN 12504-2 ASTM →... -
Page 6: Menu Navigation
MENU - Navigation HOME/MEASUREMENT screen MAIN MENU Mode Selection SCROLL SELECT Standard selection SCROLL SELECT/ADJUST Clear Memory SCROLL SELECT Unsynchronized data will be lost Info SCROLL SELECT HOME/MEASUREMENT screen... - Page 7 Measurements Rebound value Rebound value Mean rebound value SCROLL Delete last measurement SELECT/ADJUST Delete whole series Series ID Auto-switch off Current series is saved No activity > 5 minutes Current series is closed Power off...
-
Page 8: Viewing Results
Viewing Results Scroll through results Return to series Delete whole series SCROLL Start new series SELECT/ADJUST... -
Page 9: Printing Results
Printing Results Scroll through results Return to series Print series SCROLL Delete whole series SELECT/ADJUST Start new series Further Information Requires a BT printer → available as accessory Configuration for printing → Mode selection... - Page 10 JSCE (Japan) - Settings HOME/MEASUREMENT screen MAIN MENU Standard selection SCROLL SELECT/ADJUST Concrete age correction 28 days to 10 days Surface moisture correction R1 = 0 Surface is dry R1 = +3 Black mark on surface after impact R1 = +5 Surface is wet )] x α...
- Page 11 M3 Mode (Japan) – JSCE/JIS JSCE 20x Invalid result Invalid impact JIS 9x Return to series Invalid impacts Valid result removed...
- Page 12 Compressive strength estimation with the App Further Information See Quick Start Guide for app installation and connection to hammer...
- Page 13 Select conversion curve Further Information See Product FAQ on www.screeningeagle.com for more information on the conversion curves...
- Page 14 Select unit and form factor Further Information Form factor conversions are based on the recommendations in the EN standards...
-
Page 15: Measurement Screen
Measurement screen Standard (Set on hammer) Valid limits for conversion curve Conversion curve Compressive strength unit and form factor Last impact LEFT - Rebound number (calculated according to selected standard) RIGHT – Compressive strength (Calculated from rebound number, average impact angle and selected conversion curve) GREEN –... - Page 16 For more information on the use of the product, please refer to the OS8000 documentation It is available for download on https://www.screeningeagle.com/en/products/original-schmidt-os8000 For safety and liability information, please download at https://www.screeningeagle.com/en/about-us/gtc-and-certificates Subject to change. Copyright © 2022 by Proceq SA, Schwerzenbach. All rights reserved.
- Page 17 SIA-PACIFIC EUROPE USA, CANADA & CENTRAL AMERICA Proceq Asia Pte Ltd. Proceq AG Screening Eagle USA Inc. 1 Fusionopolis Way Ringstrasse 2 14205 N Mopac Expressway Suite 533 Connexis South Tower #20-02 8603 Schwerzenbach Austin, TX 78728 | United States Singapore 138632 Zurich | Switzerland T +65 6382 3966...
