Basic Operation
Automatic Voltage Regulation Icon: Indicates that the AC input is either low
or high and that the AVR function is actively boosting or cutting the line. The
AVR icon is also used in conjunction with the EVENTS icon to indicate AVR
events.
BATTERY CAPACITY Icon: Used to better describe the battery capacity bar
graph.

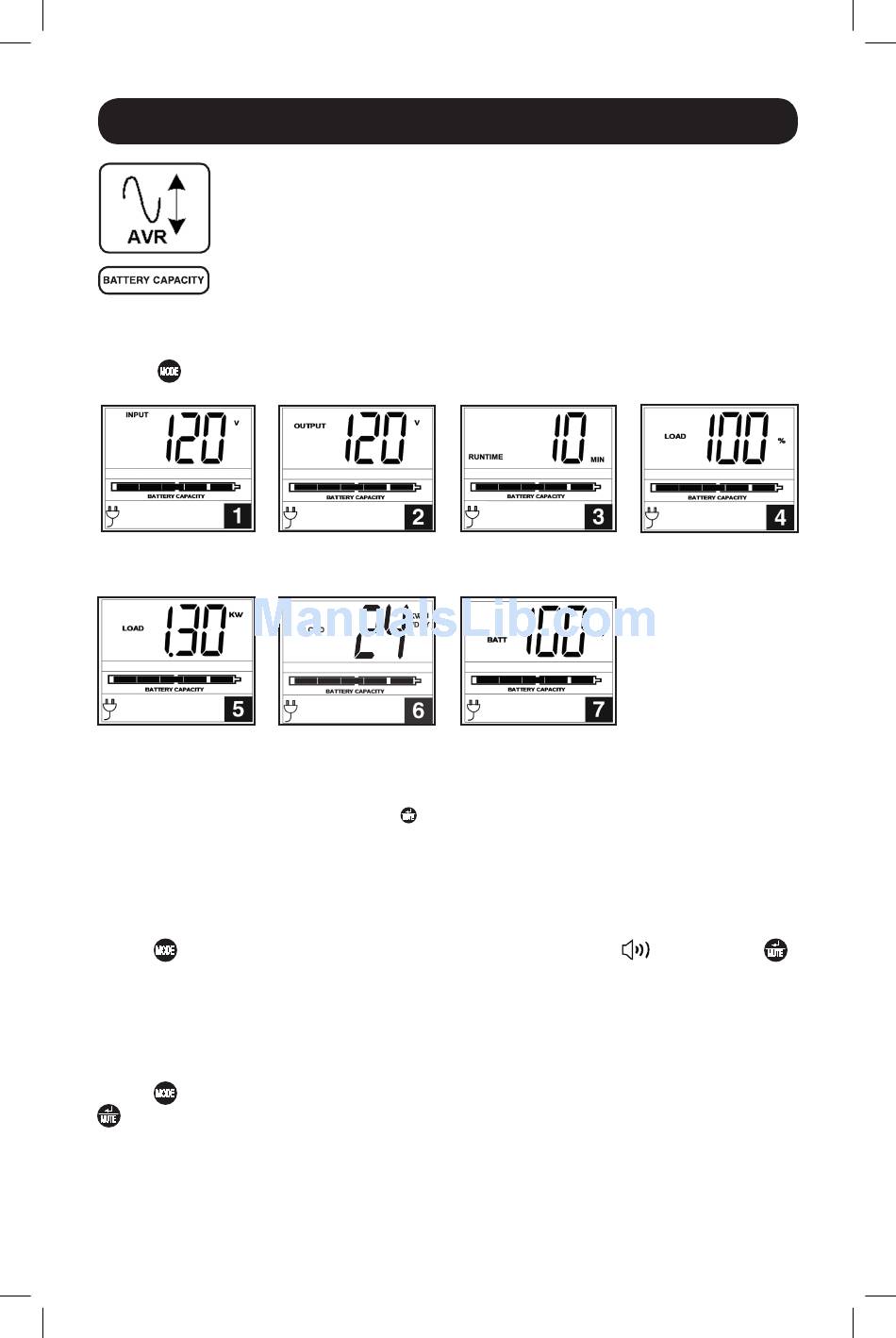

Display Power Conditions

Use the button to advance through power conditions.
1. Voltage In
5. Load Wattage*
* Load Wattage is displayed in watts up to "999", and then will be displayed in Kilowatts.
** The Kilowatt Hour usage per day reports daily power consumption of equipment connected to the UPS in
KWH in a 24-hour cycle. Press and hold the
Note: When the UPS is in Battery Mode (power is supplied to the output from the batteries), the BATTERY icon
will be lit in the display instead of the AC INPUT icon.
Control Menu Options
Enable/Disable Alarm
Tap the button repeatedly to advance to the LCD display featuring the
button to select ON or OFF alarm mode settings. The last option displayed before navigating away
from this menu option will be the selected setting.
Note: Disabling the alarm via this control menu option will silence the alarm under all conditions, including low
battery conditions.
LCD Brightness
Tap the button repeatedly to advance to the LCD Brightness display marked "LCD". Press the
button to select Medium Backlight (default), High Backlight or Dim Backlight. The last option
displayed before navigating away from this menu option will be the selected setting.
Note: The default brightness is set at medium. Any time a button is pressed, the LCD will engage the high
brightness setting. After 2 minutes of inactivity, the backlight will revert to the selected setting until a button is
pressed.
16-12-138-933440.indb 12
2. Voltage Out
6. KWH/Day**
button for 4 seconds to reset the accumulator to "0".
12
3. Estimated Runtime
(in minutes)
7. Battery Capacity %
4. Load %
icon. Press the
