Basic Operation

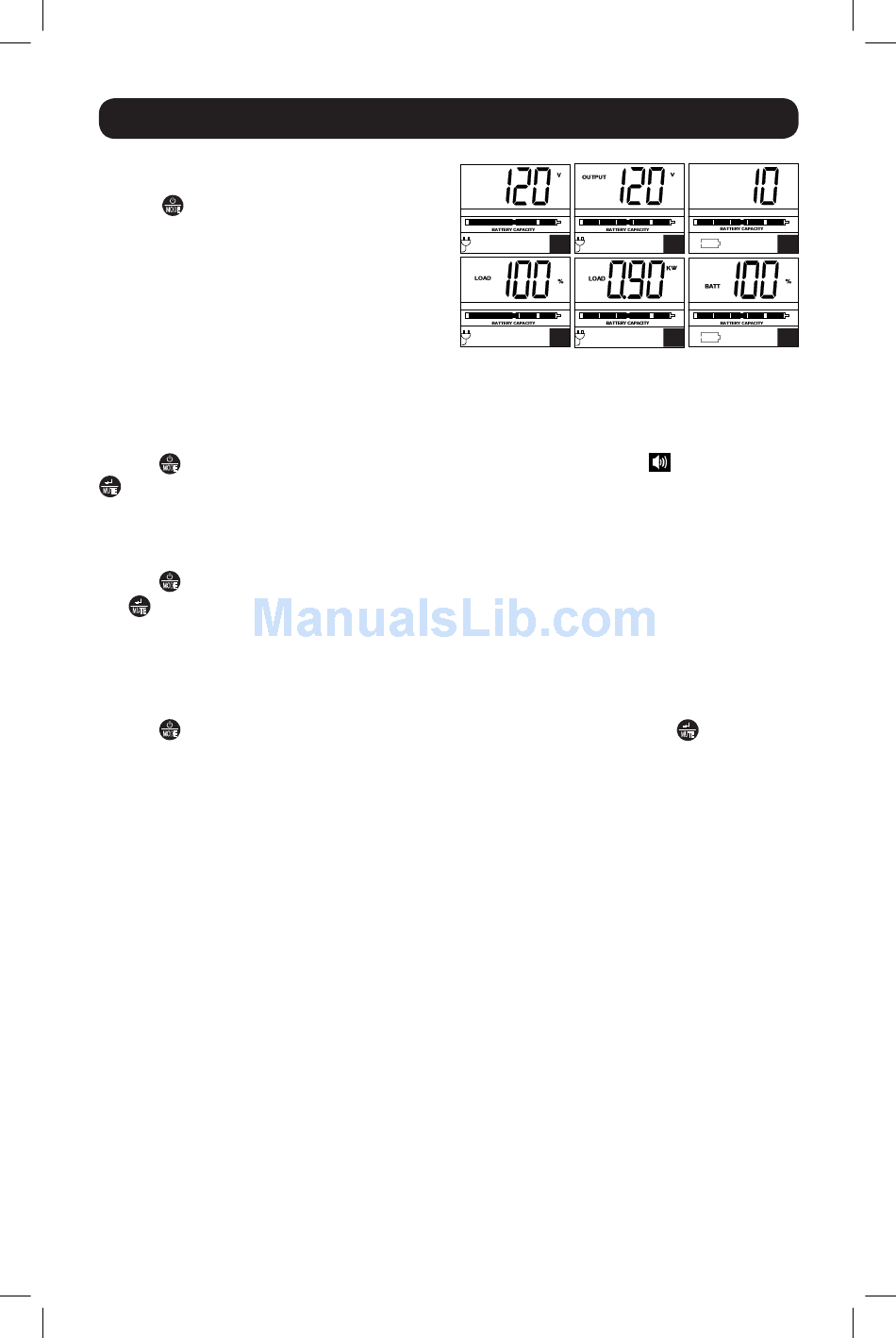

Display Power Conditions

Use the button to advance through
MODE
power conditions.
1. Voltage In
2. Voltage Out
3. Estimated Runtime (in minutes)
4. Load %
5. Load Wattage*
6. Battery Capacity %
* Load Wattage is displayed in watts up to "999", and then will be displayed in Kilowatts.

Enable/Disable Alarm

Tap the button repeatedly to advance to the LCD display featuring the
MODE
button to select ON or OFF alarm mode settings. The last option displayed before
MUTE
navigating away from this menu option will be the selected setting.

LCD Brightness

Tap the button repeatedly to advance to the LCD Brightness display marked "LCD". Press
MODE
the button to select Medium Backlight (default), High Backlight or Dim Backlight. The last
MUTE
option displayed before navigating away from this menu option will be the selected setting.
Note: After 2 minutes of inactivity, the backlight will revert to the Dim setting until a button is pressed.
Self-test
Tap the button repeatedly to advance to the TEST BATT display. Press the
MODE
initiate the test. The test will last approximately 10 seconds as the UPS switches to battery to
test the capacity with a load. Upon completion of the test, the display will indicate PAS or
BAD (pass or bad) for 20 seconds, then return to the home screen. Connected equipment
can remain on during the test. Do not unplug your UPS, this will remove safe electrical
grounding.
