Summary of Contents for ResMed AirFit F10

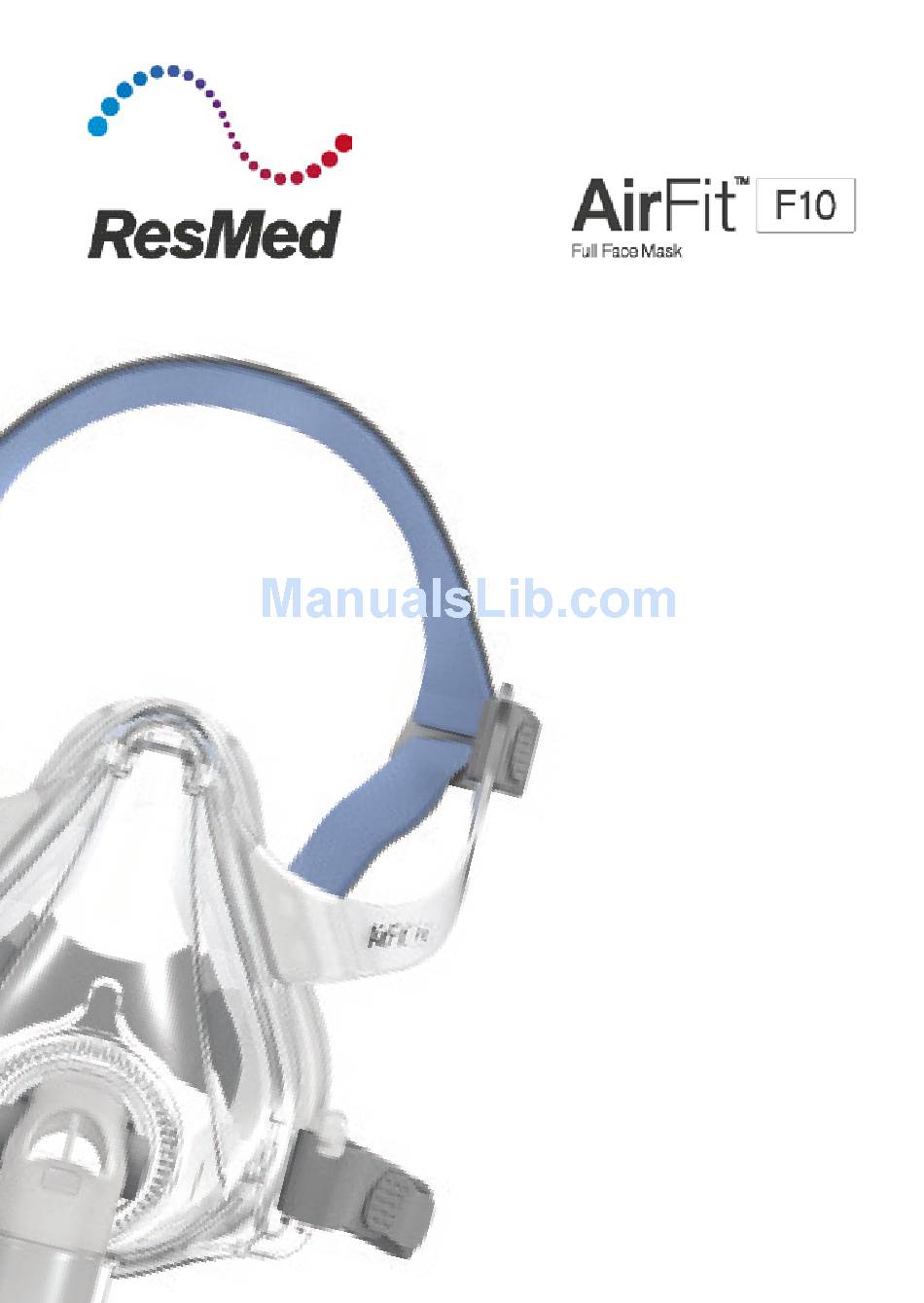

- Page 1 User Guide English...
- Page 2 Fitting / 配戴步骤 / 配戴步驟...
- Page 3 Removal / 取下面罩 / 取下面罩 Disassembly / 拆卸 / 拆卸...
- Page 4 Reassembly / 重新组装 / 重新組裝...
-
Page 5: Using This Guide

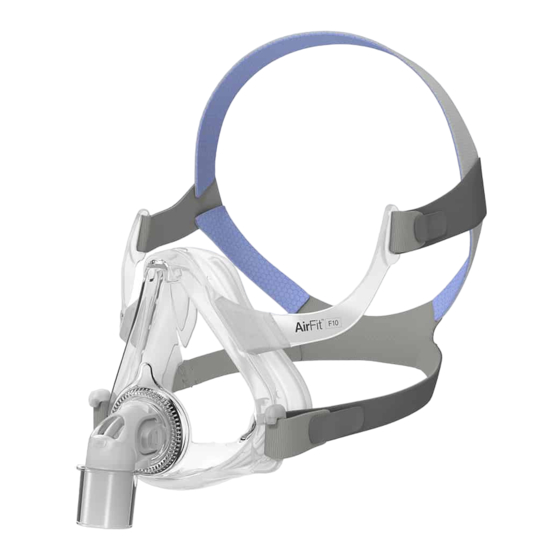

Full Face Mask Thank you for choosing the AirFit F10. This document provides the user instructions for the AirFit F10 and AirFit F10 for Her masks referred to collectively as AirFit F10 throughout this manual. AirFit F10 has blue headgear while AirFit F10 for Her has pink headgear. - Page 6 CPAP and bilevel devices are intended to be used with special masks (or connectors) which have vent holes to allow continuous flow of air out of the mask. When the device is turned on and functioning properly, new air from the device flushes the exhaled air out through the mask holes.
-
Page 7: Using Your Mask
Using your mask When using your mask with ResMed CPAP or bilevel devices that have mask setting options, refer to the Technical specifications section in this user guide for mask selection options. For a full list of compatible devices for this mask, see the Mask/Device Compatibility List on www.resmed.com on the Products page under... -
Page 8: Removing Your Mask
16. Attach the top headgear straps to the frame by looping through each of the upper headgear hooks. Ensure that the ResMed logo on the headgear is facing outward and right side up. 17. Attach the elbow to the air tubing. Attach the elbow and air tubing to the mask by pressing the side buttons and pushing the elbow into the mask. -
Page 9: Cleaning Your Mask In Your Home
Cleaning your mask in your home Your mask and headgear should only be handwashed by gently rubbing in warm (approximately 30°C) water using mild soap. All components should be rinsed well with drinking quality water and allowed to air dry out of direct sunlight. -
Page 10: Reprocessing The Mask Between Patients
Reprocessing the mask between patients This mask should be reprocessed when used between patients. Cleaning, disinfection and sterilisation instructions are available from the ResMed website, www.resmed.com/masks/sterilization. If you do not have internet access, please contact your ResMed representative. Troubleshooting Problem/possible cause... -
Page 11: Technical Specifications
Technical specifications Pressure-flow curve The mask contains passive venting to protect against rebreathing. As a result of manufacturing variations, the vent flow rate may vary. Pressure Flow (cm H (L/min) Dead space information Physical dead space is the empty volume of the mask to the end of the swivel. - Page 12 Sound DECLARED DUAL-NUMBER NOISE EMISSION VALUES in accordance with ISO 4871. The A-weighted sound power level of the mask is 28 dBA, with uncertainty of 3 dBA. The A-weighted sound pressure level of the mask at a distance of 1 m is 20 dBA, with uncertainty of 3 dBA.
-
Page 13: Consumer Warranty
Caution, consult accompanying documents. Consumer Warranty ResMed acknowledges all consumer rights granted under the EU Directive 1999/44/EC and the respective national laws within the EU for products sold within the European Union. - Page 14 Mask components / 面罩组件 / 面罩組件 AirFit F10 AirFit F10 for Her — — Elbow / 弯头 / 彎頭 Valve / 阀门 閥門 Side buttons / 侧边按钮 / 側邊按鈕 63137 (XS/S) 63137 (XS/S) Frame / 框架 / 框架 63138 (M/L) 63138 (M/L) Lower headgear hooks / 下半部头带扣...
- Page 15 AirFit F10 AirFit F10 for Her A+B+C Frame system / 63161 (S) 63160 (XS) 框架系统 / 框架系統 63161 (S) 63162 (M) 63162 (M) 63163 (L) Soft sleeves / / 软套 軟套 A+B+C+D APAC APAC Complete system / 完整系统 / 完整 63117 (S) 63151 (XS) 系統...
- Page 16 Global leaders in sleep and respiratory medicine www.resmed.com 628062 Manufacturer: ResMed Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia. See www.resmed.com for other ResMed locations worldwide. For patent information, see www.resmed.com/ip. AirFit is a trademark of ResMed Ltd.
