Turbo Air TSR-23SD-N6 Installation And Operation Manual

Super deluxe series reach-in solid door refrigerators & freezers
Hide thumbs Also See for TSR-23SD-N6:
Table of Contents

Advertisement

Quick Links

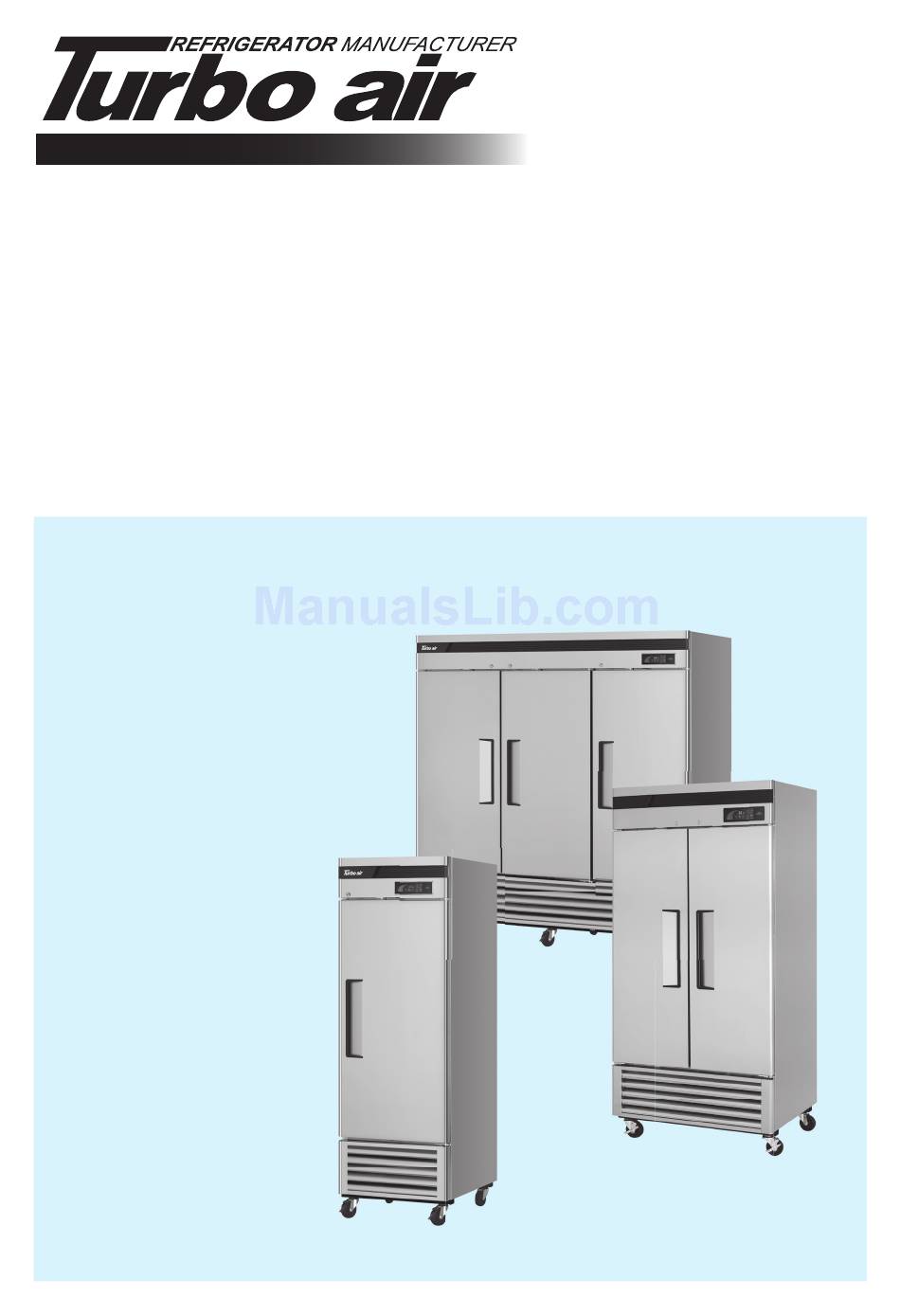

Turbo Air Speeds up the Pace of Innovation
Super Deluxe Series Reach-In
Refrigerators & Freezers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment.
SOLID DOOR REFRIGERATORS
TSR-23SD-N6
TSR-35SD-N
TSR-49SD-N6
TSR-72SD-N
SOLID DOOR FREEZERS
TSF-23SD-N
TSF-35SD-N
TSF-49SD-N
TSF-72SD-N
www.turboairinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSR-23SD-N6 and is the answer not in the manual?

Questions and answers

Related Manuals for Turbo Air TSR-23SD-N6

Summary of Contents for Turbo Air TSR-23SD-N6

  • Page 1 Turbo Air Speeds up the Pace of Innovation Super Deluxe Series Reach-In Refrigerators & Freezers Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment. SOLID DOOR REFRIGERATORS TSR-23SD-N6 TSR-35SD-N TSR-49SD-N6 TSR-72SD-N SOLID DOOR FREEZERS...

  • Page 2: Table Of Contents

    CONTENTS PAGE NOTICE FOR HYDROCARBON REFRIGERATION UNITS 4- 5 IMPORTANT SAFETY INFORMATION 6 - 9 SPECIFICATIONS / SERIAL NUMBER NOTICE TO CUSTOMER INSTALLATION CLEANING / CAUTION BASIC OPERATION 13-16 FOR REFRIGERATORS FOR FREEZERS 17-20 TROUBLESHOOTING STAINLESS STEEL EQUIPMENT CARE & CLEANING 22-23 WARRANTY INFORMATION 24-25...

  • Page 3: Notice

    NOTICE • This equipment is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of this equipment and the hazards involved by a person responsible for their safety. •...

  • Page 4: For Hydrocarbon Refrigeration Units

    FOR HYDROCARBON REFRIGERATION UNITS WARNING This unit uses R-290 (propane), or R-600a (isobutane) as a refrigerant. These hydrocarbon refrigerants are highly environmentally compatible but also are flammable and combustible. Please read this manual thoroughly before installing and operating the unit. Please take cautious measures to avoid risk of fire or explosion. PLEASE REFER TO THE LABEL INSIDE THE CABINET TO CHECK REFRIGERATION TYPE AND VOLUME.
  • Page 5 FOR HYDROCARBON REFRIGERATION UNITS WARNING • Handle the unit with care in order to avoid any serious damage to the refrigeration system. • The refrigerant tubing, condenser, and evaporator coils are prone to damage while handling, moving, installing, and cleaning the unit, which may lead to fire or even explosion.

  • Page 6: Important Safety Information

    IMPORTANT SAFETY INFORMATION SAFETY PRECAUTIONS To avoid any risk of fire, explosion, electric shock, personal injury, material damage or incorrect use of the appliance, be sure to observe the following safety precautions (After reading these owner’s manual instructions, please keep the manual booklet in a safe place for reference.
  • Page 7 IMPORTANT SAFETY INFORMATION INSTALLATION & USAGE WARNING • Do not install the unit in a damp place where it could be splashed with water. Incorrect insulation of the electrical parts may cause fire or electric shock. • Do not plug several appliances into the same sockets. This could cause fire due to overheating.
  • Page 8 IMPORTANT SAFETY INFORMATION INSTALLATION & USAGE CAUTION • There is a risk of death from suffocation if a child puts the packing materials on his or her head. • Do not store any articles on top of the appliance. Articles may fall while opening or closing the door, and could cause personal injury or material damage.
  • Page 9 IMPORTANT SAFETY INFORMATION PROPER DISPOSAL OF OLD APPLIANCE For environmental purposes, refrigeration appliances must be properly disposed. This applies to your old appliance, and at the end of its service life, for your new appliance as well. WARNING Before disposing of old appliances, make them inoperable. Remove plug from mains, severe the power cable, and remove or destroy any snap or latch closures.

  • Page 10: Specifications / Serial Number

    SPECIFICATIONS Solid Door Refrigerators MODEL COMP H.P V/Hz RERIGERANT AMPS WEIGHT TSR-23SD-N6 115V/60Hz R-600a 274 lbs. TSR-35SD-N 115V/60Hz R-290 357 lbs. TSR-49SD-N6 115V/60Hz R-600a 427 lbs. TSR-72SD-N 115V/60Hz R-290 602 lbs. Solid Door Freezers MODEL COMP H.P V/Hz RERIGERANT AMPS...

  • Page 11: Notice To Customer

    Insufficient space causes vibration noise, inefficient refrigeration, damage to the refrigeration system, and the waste of electricity (Turbo Air recommends that the rear of the unit should be no less than 5 inches from the wall).

  • Page 12: Cleaning / Caution

    CLEANING Before cleaning, unplug the unit and disconnect the power. Wipe and clean the inside and outside of appliance with a damp cloth. 1. CLEANING THE INTERIOR AND EXTERIOR - The interior and exterior of the unit can be cleaned using warm water and soap. - Do not use an abrasive cleaner because it will scratch the surface.

  • Page 13: Basic Operation

    FOR REFRIGERATORS BASIC OPERATION TSR-23SD-N6 TSR-35SD-N REFRIGERATORS TSR-49SD-N6 TSR-72SD-N 1. Plug in and turn on the power switch located on the bottom of the top grille right side. The Display panel will be lighted and make a beep sound. The compressor will begin to run.
  • Page 14 FOR REFRIGERATORS DISPLAY PANEL OF REFRIGERATOR TEMP. SETTING TEMP. CONTROL BUTTON (SEE PAGE 15) INNER TEMP. (SEE PAGE 15) ˚F TEMPERATURE TEMPERATURE DOOR TURBO POWER COOLING TURBO COOLING TURBO COOLING BUTTON (SEE PAGE 15) FAN RUNNING DOOR OPENING...
  • Page 15 FOR REFRIGERATORS TURBO COOLING 1. If you push the T.C. (Turbo Cooling) button, the compressor will run continuously until D-Sensor detects 14˚F (-10˚C) to bring down the temperature more quickly.(max.comp.run time = 120 min.) 2. If you push the T.C. button again during Turbo Cooling mode, the compressor will return to normal operation.

  • Page 16: For Refrigerators

    FOR REFRIGERATORS FAN RUNNING INDICATOR 1. If the fan motor is running, fan running indicator will be turned on. 2. Evaporator fan motor is activated when the door (both doors for TSR-49SD-N6, all three doors for TSR-72SD-N) is closed. DOOR OPENING INDICATOR 1.

  • Page 17: For Freezers

    FOR FREEZERS BASIC OPERATION TSF-23SD-N TSF-35SD-N FREEZERS TSF-49SD-N TSF-72SD-N 1. Plug in and turn on the power switch located on the bottom of the top grille right side. The Display panel will be lighted and make a beep sound. The compressor will begin to run.
  • Page 18 FOR FREEZERS DISPLAY PANEL OF FREEZER TEMP. SETTING TEMP. CONTROL BUTTON (SEE PAGE 19) INNER TEMP. (SEE PAGE 19) ˚F TEMPERATURE TEMPERATURE T. F. DOOR TURBO POWER FREEZE TURBO FREEZE TURBO FREEZE BUTTON (SEE PAGE 19) FAN RUNNING DOOR OPENING...
  • Page 19 FOR FREEZERS TURBO FREEZE 1. Once you press the T.F.(Turbo Freeze) button, the compressor will run for 120 minutes to quickly bring down the temperature. 2. If you push the T.F. button again during Turbo Freeze mode, the compressor will return to the normal operation. 3.
  • Page 20 FOR FREEZERS FAN RUNNING INDICATOR 1. If the fan motor is running, fan running indicator will be turned on. 2. Evaporator fan motor is activated when the door (both doors for TSF-49SD-N, all three doors for TSF-72SD-N) is closed. DOOR OPENING INDICATOR 1.

  • Page 21: Troubleshooting

    TROUBLESHOOTING SYMPTOMS CAUSES SOLUTIONS • Thermostat set too cold. • Turn the thermostat setting Cooler is freezing to a higher temperature food. position The unit does not • There is a power connection • Check the power cord and refrigerate at all. failure problem.

  • Page 22: Stainless Steel Equipment Care & Cleaning

    STAINLESS STEEL EQUIPMENT CARE AND CLEANING CAUTION : Do not use any steel wool, abrasive or chlorine based products to clean stainless steel surfaces. There are three basic things which can break down your stainless steel’s passivity layer and allow corrosion to occur.

  • Page 23: Stainless Steel Equipment Care & Cleaning

    STAINLESS STEEL EQUIPMENT CARE AND CLEANING 4. Water Treatment To reduce deposits, soften the hard water when possible. Installation of certain filters can remove corrosive and distasteful elements. Salts in a properly maintained water softener can be to your advantage. Contact a treatment specialist if you are not sure of the proper water treatment.

  • Page 24: Warranty Information

    Air and upon proper installation* (indoor building only) and start-up in accordance with the instruction packet supplied with each Turbo air unit. Turbo Air s obligation under this warranty is limited to a period of three (3) years from the date of original installation or thirty nine (39) months after shipment date from Turbo Air, whichever occurs first.
  • Page 25 WARRANTY INFORMATION What is Not Covered by This Warranty... Turbo Air’s sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty.
  • Page 26 NOTE...

  • Page 27: Warranty Registration Card

    Address: (Street / Unit #) (City) (State) (Zip Code) hereby inform and certify to Turbo Air Inc. (Manufacturer) that the product model (Owner’s Name) and serial number mentioned above was purchased on from (Date of Purchase) (Name of the Dealer) Turbo Air Inc.
  • Page 28 4184 E. Conant St., Long Beach, CA 90808 Toll Free: 1-800-381-7770 Fax: 310-900-1033 Email: warranty@turboairinc.com www.turboairinc.com...
