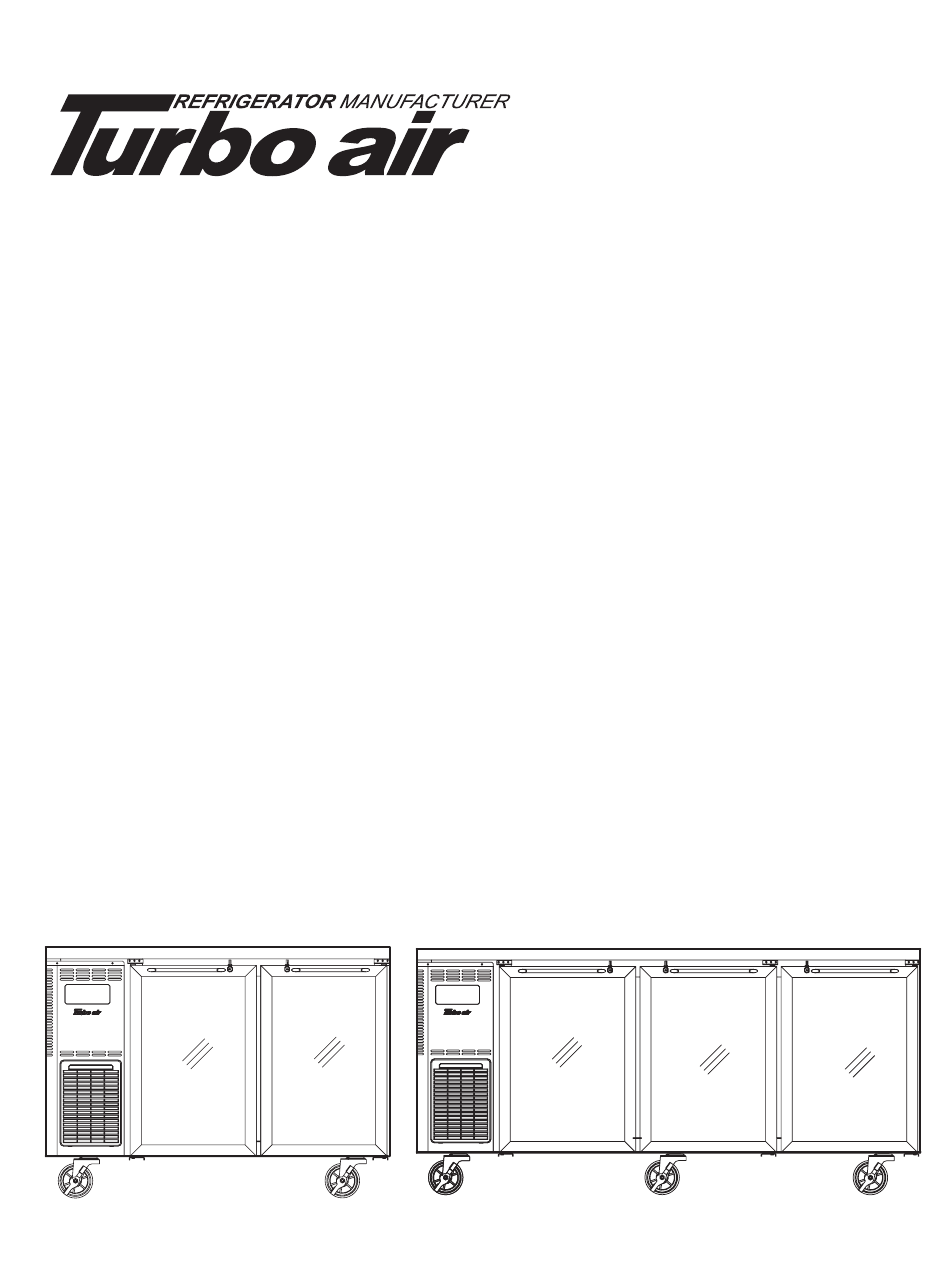

- Page 1 J Series Glass Door Undercounter Refrigerators Service Manual JUR-48-G-N JUR-60-G-N JUR-72-G-N www.turboairinc.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS EXPLODED VIEW JUR-48-G-N EXPLODED VIEW JUR-60-G-N EXPLODED VIEW JUR-72-G-N EXPLODED VIEW WIRING DIAGRAMS MAIN COMPONENTS PARTS LIST TEMPERATURE CONTROL INSTRUCTION REPLACEMENT OF MAIN COMPONENTS REPLACING DOOR REFRIGERATION COMPARTMENT PARTS COMPRESSOR COMPARTMENT PARTS... -
Page 3: Jur-48-G-N Exploded View
JUR-48-G-N EXPLODED VIEW PART NAME MAIN PCB COVER AIR GUIDE (L/R) COMPRESSOR FRONT PCB EVAP DUCT DRYER ASSY UNIT FRONT COVER EVAP FAN MOTOR DRAIN PAN BOTTOM HINGE (L) EVAP ASSY CONDENSER FAN MOTOR COUNTERTOP UNIT BRACKET (A) TOP HINGE (L) EVAP FAN AIR GUIDE CASTER GLASS DOOR (L)-1200... -
Page 4: Jur-60-G-N Exploded View
JUR-60-G-N EXPLODED VIEW PART NAME MAIN PCB COVER AIR GUIDE (L/R) COMPRESSOR FRONT PCB EVAP DUCT DRYER ASSY UNIT FRONT COVER EVAP FAN MOTOR DRAIN PAN EVAP ASSY CONDENSER FAN MOTOR BOTTOM HINGE (L) COUNTERTOP UNIT BRACKET (A) TOP HINGE (L) EVAP FAN AIR GUIDE CASTER GLASS DOOR (L)-1500... -
Page 5: Jur-72-G-N Exploded View
JUR-72-G-N EXPLODED VIEW PART NAME MAIN PCB COVER EVAP DRAIN GUIDE SUCTION PIPE FRONT PCB AIR GUIDE (L/R) COMPRESSOR ASSY UNIT FRONT COVER EVAP DUCT DRYER EVAP FAN MOTOR DRAIN PAN BOTTOM HINGE (L) CONDENSER FAN MOTOR TOP HINGE (L) EVAP ASSY GLASS DOOR (L)-1800 COUNTERTOP... -
Page 6: Wiring Diagrams
WIRING DIAGRAMS JUR-48-G-N, JUR-60-G-N, JUR-72-G-N FRONT -PCB COOLING FAN MOTOR D-SENSOR PROTECTOR DRAIN HEATER R-SENSOR MAIN CONDENSER CONDENSER POWER EVAP STARTER MOTOR MOTOR CORD MOTOR RUNNING CAPACITOR EARTH... -
Page 7: Main Components
MAIN COMPONENTS COMPRESSOR PART NO. CAPACITY TYPE OF INPUT MAKER PART NAME MODEL JUR-48-G-N C-BHR200L2Y 115V 60HZ JUR-60-G-N JUR-72-G-N COMPRESSOR CAPACITOR PART NO. RUNNING PART NO. MAKER NOTE MODEL STARTING JUR-48-G-N 160V/100㎌ 200V/20㎌ JUR-60-G-N JUR-72-G-N CONDENSER FAN MOTOR PART NO. POLE INPUT TYPE... -
Page 8: Parts List
PARTS LIST MODEL PART NAME PART CODE DESCRIPTION JUR-48-G-N JUR-60-G-N JUR-72-G-N COUNTERTOP ASSY KGR1200101 COUNTERTOP ASSY KGR1500101 COUNTERTOP ASSY KGR1820101 GLASS DOOR ASSY(L)-1200 JG2AF00111 GLASS DOOR ASSY(R)-1200 JG2AF00211 GLASS DOOR ASSY(L)-1500 JG5AF00110 GLASS DOOR ASSY(R)-1500 JG5AF00210 GLASS DOOR ASSY(L)-1800 JG8AF00110 GLASS DOOR ASSY(R)-1800 JG8AF00210 DOOR GASKET... - Page 9 PARTS LIST MODEL PART NAME PART CODE DESCRIPTION JUR-48-G-N JUR-60-G-N JUR-72-G-N DRYER BR84100101 CONDENSER ASSY JUR600105 CONDENSER ASSY JUR601105 CONDENSER FAN MOTOR 4511003050 EVAP FAN MOTOR 4511003050 DISPLAY PCB JR85400101 MAIN PCB BR85400100 POWER CORD M721300202 R SENSOR K3F5102100 D SENSOR K3F5102001 MAIN PCB COVER (B) KR81400100...
-
Page 10: Temperature Control Instruction
TEMPERATURE CONTROL INSTRUCTION BASIC OPERATION 1. Plug in and the Display panel will be lighted and make a beep sound. The compressor will begin to run. 2. The compressor is automatically cycled by the electronic controller (PCB). 3. The Defrost cycle is automatically controlled by the PCB. 4. -
Page 11: Replacement Of Main Components
REPLACEMENT OF MAIN COMPONENTS REPLACING DOOR A. Unscrew the top hinge B. Lift the door REFRIGERATION COMPARTMENT PARTS A. Disassemble the evaporator duct assembly B. Disassemble the harness motor C. Remove the evaporator fan motor D. Remove the air guide (L/R) E. -
Page 12: Compressor Compartment Parts
REPLACEMENT OF MAIN COMPONENTS COMPRESSOR COMPARTMENT PARTS A. Disassemble the unit front cover assembly B. Disassemble the unit side cover C. Remove the mech cover D. Remove the comp base E. Disassemble the condensing unit... - Page 13 4184 E. Conant St., Long Beach, CA 90808 Toll Free: 1-800-381-7770 Fax: 310-900-1033 Email: warranty@turboairinc.com www.turboairinc.com...
