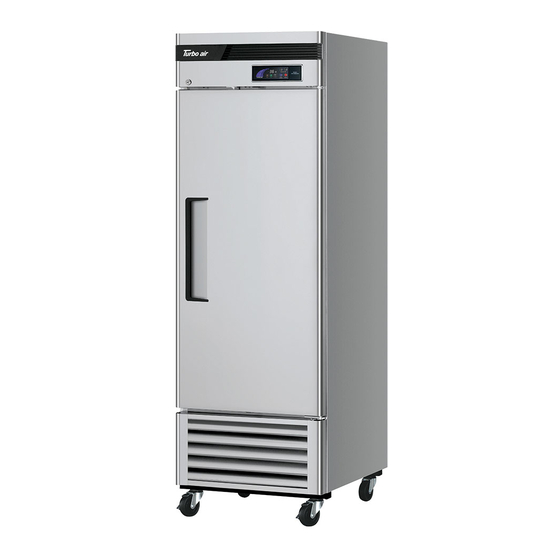

Turbo Air TSR-23SD Service Manual

Turbo Air TSR-23SD Service Manual

Commercial refrigerator & freezer

Advertisement

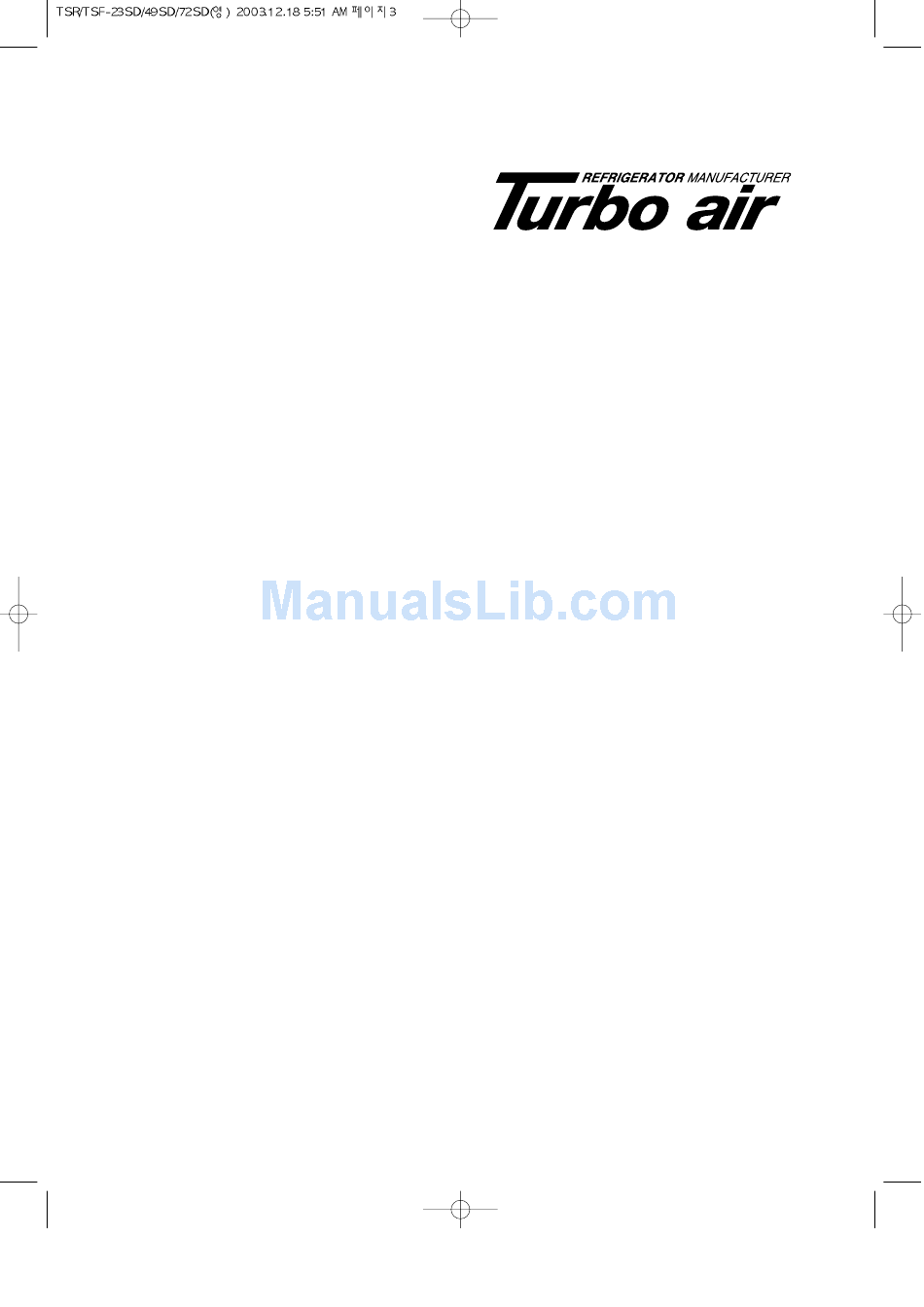

Commercial
Refrigerator & Freezer
Service Manual
Solid Door
Model No.: TSR-23SD
TSR-72SD
TSF-72SD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSR-23SD and is the answer not in the manual?

Questions and answers

Summary of Contents for Turbo Air TSR-23SD

  • Page 1 Commercial Refrigerator & Freezer Service Manual Solid Door Model No.: TSR-23SD TSR-49SD TSR-72SD TSF-23SD TSF-49SD TSF-72SD...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. FEATURE CHART 1-1. FRONT VIEW 1-2. SIDE VIEW 2. WIRING DIAGRAM 2-1. REFRIGERATOR (1DOOR) : TSR-23SD 2-2. FREEZER (1DOOR) : TSF-23SD 2-3. REFRIGERATOR (2DOOR) : TSR-49SD 2-4. FREEZER (2DOOR) : TSF-49SD 2-5. REFRIGERATOR (3DOOR) : TSR-72SD 2-6.
  • Page 3: Feature Chart

    1. FEATURE CHART 1-1. FRONT VIEW 2 3 4 5 6 7 89 TOP GRILLE PANEL TOP GRILLE TOP GRILLE FIXTURE DOOR SWITCH DOOR LOCK MAIN PCB TRANSFORMER DISPLAY PCB CONTROL BOARD HOUSING BRAND LOGO DOOR HINGE TOP ASSEMBLY DOOR HINGE SPRING DOOR ASSEMBLY DOOR HANDLE DOOR HINGE BOTTOM ASSEMBLY...
  • Page 4: Side View

    FEATURE CHART 1-2. SIDE VIEW c v b n DOOR BUMPER DOOR GASKET LAMP BULB LAMP SOCKET ! @ # EVAPORATOR FAN MOTOR BLADE EVAPORATOR FAN MOTOR EVAPORATOR COIL SUCTION PIPE EVAPORATOR DRAIN PAN EVAPORATOR DRAIN ELBOW DRAIN HOSE SHELF STANDARD LAMP SHIELD EVAPORATOR FAN MOTOR GUARD...
  • Page 5 2. WIRING DIAGRAM 2-1. TSR-23SD WIRING DIAGRAM 2-2. TSF-23SD WIRING DIAGRAM...
  • Page 6: Wiring Diagram

    WIRING DIAGRAM 2-3. TSR-49SD WIRING DIAGRAM 2-4. TSF-49SD WIRING DIAGRAM...
  • Page 7 WIRING DIAGRAM 2-5. TSR-72SD WIRING DIAGRAM 2-6. TSF-72SD WIRING DIAGRAM...
  • Page 8: Part Details

    3. PART DETAILS 3-1. TOP GRILLE Door Lock, Switch Door Lock Door Switch Transformer, Main P.C.B Harness Transformer Main PCB 3-2. Refrigeration Compartment Cycle Assembly Condenser Fan Motor Assembly Condenser Coil Shroud Suction Pipe Condenser Coil Compressor Condenser Pipe Condenser Dryer...
  • Page 9: Electrical Box

    PART DETAILS Drain Pan Assembly Drain Wicking Bar Drain Pan Drain Wicking Pads Condenser Fan Motor Assembly Condenser Fan Motor Condenser Fan Bracket Motor Blade 3-3. Electrical Box Power Bushing Power Relay (Comp. Relay)
  • Page 10: Cooling Compartment

    PART DETAILS 3-4. Door Gasket Gasket 3-5. Cooling Compartment Freezer Duct & Refrigerator Duct (TSR-49SD, TSF-49SD, TSR-72SD, TSF-72SD Type) Duct (A) Evaporator Fan Motor Guard Duct (B) Freezer Evaporator, Fan (TSF-49SD, TSF-72SD) Evaporator Fan Motor Blade Heater Connectors & Sensor Connectors Lamp Connector Evaporator Evaporator Thermal Fuse...
  • Page 11 PART DETAILS Freezer Duct & Refrigerator Duct (TSR-23SD, TSF-23SD Type) Evaporator Fan Motor Guard Duct (A) Duct (B) Freezer Evaporator, Fan (TSF-23SD) Lamp & Fan Motor Connectors Evaporator Fan Motor Blade Heater Connectors & Evaporator Sensor Connectors Thermal Evaporator Evaporator Coil Heater...
  • Page 12: Main Components

    4. MAIN COMPONENTS 4-1. COMPRESSOR Model TSR-23SD TSR-49SD TSF-23SD TSF-49SD TSR-72SD TSF-72SD Refrigerant R-134a R-404a R-134a R-404a Voltage 115V / 60Hz 208/230 Comp. Model HBL27YE-1 SK6A1C-H2Y AEA2411ZXA AJA2425ZXA AKA4476YXA CAJ2446Z Part code 3952127G10 3020014540 30200L0100 30200L0200 30200A4700 30206Q3600 Strating type...
  • Page 13: Main Pcb

    MAIN COMPONENTS 4-5. EVA FAN MOTOR Model TSR-23SD TSR-49SD TSF-23SD TSF-49SD TSR-72SD TSF-72SD Voltage 115V / 60Hz Motor Model IS4420DWSN-2A Part code 3963328120 4-6. CONDENSOR FAN MOTOR Model TSR-23SD TSR-49SD TSF-23SD TSF-49SD TSR-72SD TSF-72SD Voltage 115V / 60Hz 220V/60Hz Motor Model...
  • Page 14 6. PART-LIST OF SOLID DOOR MODEL Model Part name Code Material Description R-23S R-49S F-23S F-49S R-72S F-72S Caster CASTER 30265L0200 TP5040-22-HDP CASTER BRAKE 30265L0100 TP5040-22-HDP-TLB Compressor COMPRESSOR RUN CAPACITOR 400EL15130 230V/10µF COMPRESSOR START CAPACITOR 401RD35050 200V/100µF COMPRESSOR 3952127G10 HBL27YE-1 COMPRESSOR 3020014540 SK6A1C-H2Y...
  • Page 15 PART-LIST OF SOLID DOOR MODEL Model Part name Code Material Description R-23S R-49S F-23S F-49S R-72S F-72S CAPILLARY TUBE (A) 30244Q1000 C1220T L2263 IDø3.56 CAPILLARY TUBE (B) 30244Q1100 C1220T L3505 IDø2.0 CONDENSER DRYER 30268L0300 C1220T XH-9 50g ø3.1 CONDENSER DRYER 30268L0400 C1220T XH-9 50g ø3.5 CONDENSER DRYER...
  • Page 16 PART-LIST OF SOLID DOOR MODEL Model Part name Code Material Description R-23S R-49S F-23S F-49S R-72S F-72S DRAIN PAN 30211J0103 HIPS DRAIN WICKING BAR 30230J0700 PVC-H DRAIN WICKING BAR 30230L0100 PVC-H DRAIN WICKING PADS 30245L1000 PULP T2.5 DRAIN WICKING PADS 30245A0700 PULP T2.5 Evaporator...
  • Page 17 PART-LIST OF SOLID DOOR MODEL Model Part name Code Material Description R-23S R-49S F-23S F-49S R-72S F-72S DUCT (A) 30269L0304 SUS 304 DUCT (A) 30269L0404 SUS 304 DUCT (A) 30269Q0500 SUS 304 DUCT (B) 30269L0507 SUS 304 DUCT (B) 30269L0606 SUS 304 DUCT (B) 30269Q0400 SUS 304 Top Grille Panel...
  • Page 18 PART-LIST OF SOLID DOOR MODEL Model Part name Code Material Description R-23S R-49S F-23S F-49S R-72S F-72S BOTTOM GRILLE ASSEMBLY 30224L1400 STS304-HL BOTTOM GRILLE ASSEMBLY 30200Q4100 STS304-HL Lamp LAMP SHIELD 30214L3200 PP MILKY LAMP HARNESS 30227L0900 LAMP BULB 30236L0100 25W/120V LAMP SOCKET 30279L0100 MEDIUM BASE L-124B-PVC Shelf...
  • Page 19: Replacement Of Main Components

    7. REPLACEMENT OF MAIN COMPONENTS 7-1. TOP GRILLE PARTS - MAIN PCB or TRANSFORMER - DISPLAY PCB - DOOR LOCK or POWER SWITCH (ROCKER SWITCH) - DOOR SWITCH A. Unscrew the screw located both sides of top grille panel.
  • Page 20 REPLACEMENT OF MAIN COMPONENTS B. Unscrew the screws located on top of top grille panel.
  • Page 21 REPLACEMENT OF MAIN COMPONENTS C. Unscrew the screws located on bottom of top grille panel. * Caution : When unscrewing, hold the top grille panel. Falling down top grille may cause bruise. D. Place the top grille panel on the top of the cabinet. E.
  • Page 22 REPLACEMENT OF MAIN COMPONENTS F. Pull out the harness located back of top grille panel. You can separate top grille panel. You can replace power switch(rocker switch), door switches(lamp switch) and control board housing. G. To re-assemble, do reversed in order.
  • Page 23: Replacing Door

    REPLACEMENT OF MAIN COMPONENTS 7-2. REPLACING DOOR A. Disassemble top grille panel as described section 7-1 A.B.C.D. B. Remove Bottom Grille by unscrewing the four screws located on each side of the Bottom Grille. C. Open the electrical box. Then uncap the door heater wire. (Freezer model only)
  • Page 24 REPLACEMENT OF MAIN COMPONENTS D. The figure of the disassembled top grille E. Unscrew the hinge. panel. F. Unscrew the last screw with pushing the G. After unscrewing, the hinge will rotate hinge. about 90˚(CCW), of itself.
  • Page 25 REPLACEMENT OF MAIN COMPONENTS H. Lift the door and pull out the door heater’s lead wire. I. Replace the door with the new one. J. Ready the hinge as below. It is important to set initial position (angle).
  • Page 26 REPLACEMENT OF MAIN COMPONENTS K. Initial position of the hinge must be as below. L. Turn the hinge 90˚ CW. This turning causes torsion strength of the bar spring that shuts the door(s) automatically. M. Screw the hinge with pushing it. After installation of the door(s), assemble the top grille panel.
  • Page 27: Refrigeration Compartment's Parts

    REPLACEMENT OF MAIN COMPONENTS 7-3. REFRIGERATION COMPARTMENT’S PARTS A. Disassemble lamp shield. - LAMP BULB or LAMP SHIELD - EVAPORATOR FAN MOTOR - F/D SENSOR or R/D SENSOR - EVAPORATOR DEFROST HEATER - EVAPORATOR COIL B. Disassemble Duct (A). C. Pull out the lamp harness.
  • Page 28 REPLACEMENT OF MAIN COMPONENTS D. Disassembe duct (B). E. Pull-out the evaporator drain pan heater’s leadwire. F. Figure of disassembled refrigeration compartments. In this situation, you can replace fan motor, F/D-sensor, Evaporator coil, ETC.
  • Page 29 REPLACEMENT OF MAIN COMPONENTS G. Replacing evaporator fan motor F-1. Pull out the fan motor’s connector. F-2. Unscrew the four screws which located on bottom of fan motor. H. Replacing F/D-Sensor or R/D-Sensor H-1. F-Sensor of Freezer Unscrew as illustrated below and pull-out the F-Sensor from the cover. F-Sensor (Orange Color)
  • Page 30 H-2. D-Sensor of Freezer (Evaporator Defrost Sensor) Disassemble the D-Sensor from evaporator’s end plate. D-Sensor (Blue Color) H-3. R-Sensor of Refrigerator Unscrew as illustrated below and pull-out the R-Sensor from the cover. R-Sensor R-Sensor (White Color) (White Color) Unscrew Unscrew TSR-49SD TSR-23SD TSR-72SD...
  • Page 31 REPLACEMENT OF MAIN COMPONENTS H-4. D-Sensor of Refrigerator Remove the absorber pad at the end of thermo-pipe and pull-out the D-Sensor. D-Sensor (Blue Color) Thermo-Pipe H-5. F/D Sensor or R/D Sensor After unplug each sensor, pull-out the sensor’s lead wire. D-Sensor D-Sensor F-Sensor...
  • Page 32 REPLACEMENT OF MAIN COMPONENTS REPLACING EVAPORATOR DEFROST HEATER (FREEZER ONLY) A. After disassembling the duct(A) and the B. Pull out the pins from the bottom of the duct(B), get ready as below for replacing evaporator using the nipper, etc. the evaporator defrost heater. H.
  • Page 33 REPLACEMENT OF MAIN COMPONENTS D. After removing all pins, disconnect the connectors from the thermal fuse and the main E. Take apart the evaporator defrost heater from the evaporator.
  • Page 34 REPLACEMENT OF MAIN COMPONENTS F. Install the new evaporator defrost heater in original position. G. Pat the evaporator defrost heater with the soft hammer. H. Pinch the hooks of the evaporator.
  • Page 35 REPLACEMENT OF MAIN COMPONENTS I . Assemble the pins in original positions. J. Connect the connectors of the evaporator defrost heater to them of the thermal fuse * NOTE Why is always 115 voltage detected between connectors of the evaporator defrost heater in the main harness? The SNUBBER(located Main PCB) holds two AC power lines simultaneously.
  • Page 36: Condensing Unit

    REPLACEMENT OF MAIN COMPONENTS 7-4. CONDENSING UNIT - Condensing units : Compressor, Condenser Fan Motor, Condenser Coil, Condenser Dryer..- Others : Compressor Power Cord (Relay harness), Main Power Cord, Electrical Box, ETC. A. Disassemble Bottom Grille as described section 7-2. B. B.
  • Page 37 REPLACEMENT OF MAIN COMPONENTS D. Pull-out the condensing unit.
  • Page 38: Replacing Cabinet Frame Heater (And/Or) Mullion Heater

    REPLACEMENT OF MAIN COMPONENTS 7-5. REPLACING CABINET FRAME HEATER (and/or) MULLION HEATER A. Insert the and edge of ‘–’type screw B. Take apart the frame cover from the driver into the gap between the frame frame. and the frame cover. C.
  • Page 39 REPLACEMENT OF MAIN COMPONENTS E. Below picture shows the inlet of the F. Uncap connectors of the cabinet frame cabinet frame heater toward the heater. electrical box. G. Pull out the heater wire from the inlet. H. Insert the new cabinet frame heater wire to the inlet, after surrounding it along the frame.
  • Page 40 REPLACEMENT OF MAIN COMPONENTS I. Assemble the frame cover with the frame. J. Fit the end lines of the frame cover each Push and slide the frame cover toward other. corner. K. Fit the other side of the frame cover, too. L.
  • Page 41 REPLACEMENT OF MAIN COMPONENTS M. Do like above instructions in other parts (Left side, right side and top side).
  • Page 42 REPLACEMENT OF MAIN COMPONENTS N. Unscrew the screws from the mullion. O. Take apart the mullion cover from the P. Take care for the mullion heater not to mullion. be hurt. (It does not matter, if this heater is out of order).
  • Page 43 REPLACEMENT OF MAIN COMPONENTS Q. Pull out the insulator from inside. R. Uncap connectors of the mullion heater. S. Pull out the heater wire from the inlet.
  • Page 44 REPLACEMENT OF MAIN COMPONENTS T. Pull out the mullion cover(SUS) from the mullion cover (ABS). U. Change the old mullion heater and V. Insert the mullion cover(SUS) into the install the new one with the gap between original pisition. wires 1.2 inch.
  • Page 45 REPLACEMENT OF MAIN COMPONENTS W. Connect the heater wires with the main harness and the electrical box harness. X. Cover the caps on the connection parts and press them tightly.
  • Page 46 VISION CREATIVE, INC.
