J Series
Undercounter Refrigerators-Narrow
Service Manual
JUR-36S-N6
JUR-48S-N6
JUR-60S-N6
JUR-72S-N6
www.turboairinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J Series and is the answer not in the manual?

Questions and answers

Related Manuals for Turbo Air J Series

Summary of Contents for Turbo Air J Series

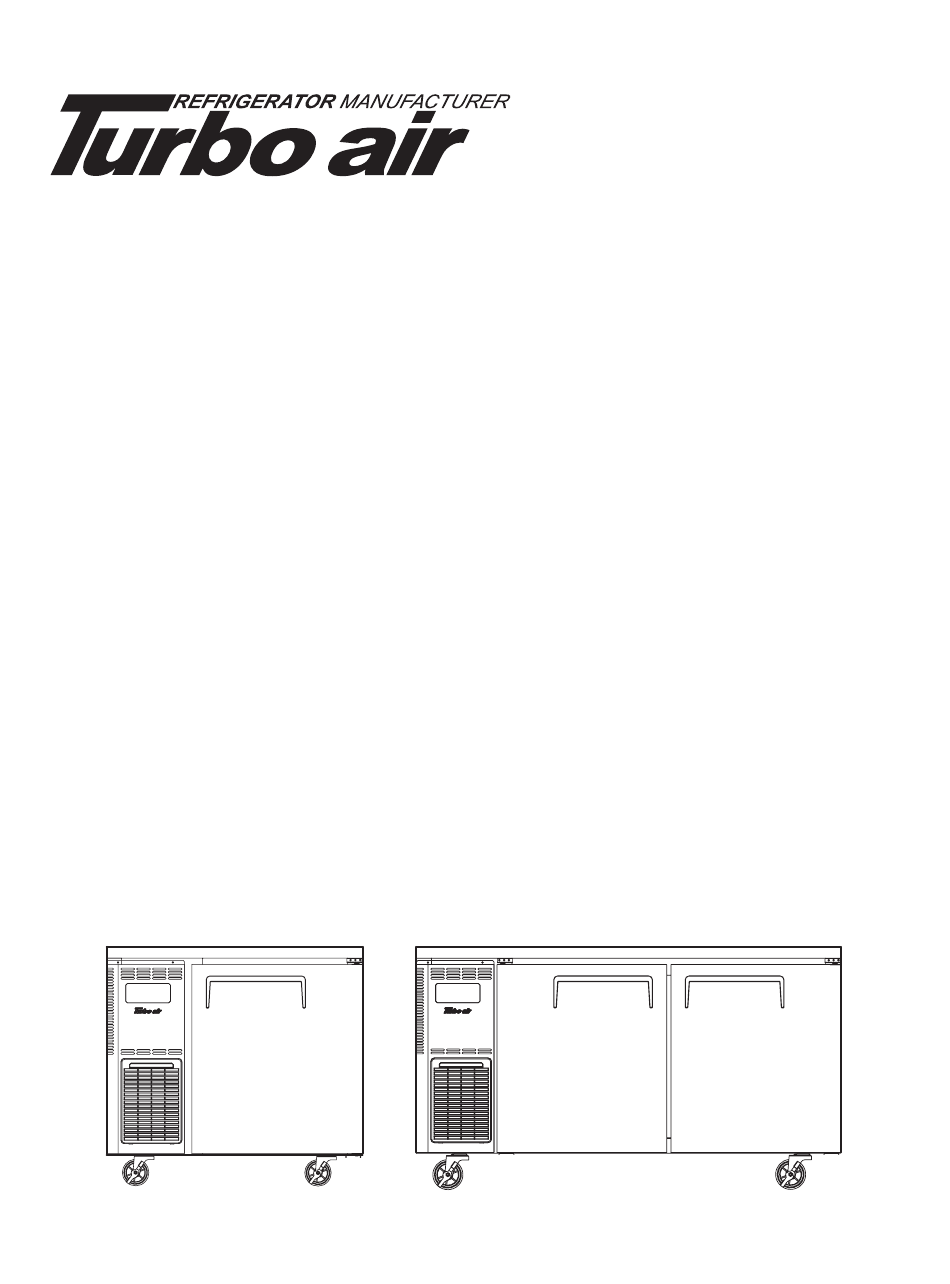

  • Page 1 J Series Undercounter Refrigerators-Narrow Service Manual JUR-36S-N6 JUR-48S-N6 JUR-60S-N6 JUR-72S-N6 www.turboairinc.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS EXPLODED VIEW JUR-36S-N6 EXPLODED VIEW JUR-48S-N6 EXPLODED VIEW JUR-60S-N6 EXPLODED VIEW JUR-72S-N6 EXPLODED VIEW WIRING DIAGRAMS MAIN COMPONENTS 10-11 PARTS LIST TEMPERATURE CONTROL INSTRUCTION REPLACEMENT OF MAIN COMPONENTS REPLACING DOOR REFRIGERATION COMPARTMENT PARTS COMPRESSOR COMPARTMENT PARTS...

  • Page 3: Jur-36S-N6 Exploded View

    JUR-36S-N6 EXPLODED VIEW PART NAME MAIN PCB COVER EVAP ASSY CONDENSER FAN MOTOR FRONT PCB COUNTERTOP UNIT BRACKET (A) ASSY UNIT FRONT COVER EVAP FAN AIR GUIDE CASTER CABINET ASSY BOTTOM HINGE (R) UNIT BRACKET DOOR (R)-900 UNIT SIDE COVER TOP HINGE (R) CONDENSER ASSY EVAP DRAIN GUIDE COVER...

  • Page 4: Jur-48S-N6 Exploded View

    JUR-48S-N6 EXPLODED VIEW PART NAME MAIN PCB COVER AIR GUIDE (L/R) COMPRESSOR FRONT PCB EVAP DUCT DRYER ASSY UNIT FRONT COVER EVAP FAN MOTOR DRAIN PAN EVAP ASSY CONDENSER FAN MOTOR BOTTOM HINGE (L) COUNTERTOP UNIT BRACKET (A) TOP HINGE (L) EVAP FAN AIR GUIDE CASTER DOOR (L)-1200...

  • Page 5: Jur-60S-N6 Exploded View

    JUR-60S-N6 EXPLODED VIEW PART NAME MAIN PCB COVER AIR GUIDE (L/R) COMPRESSOR EVAP DUCT DRYER FRONT PCB DRAIN PAN EVAP FAN MOTOR ASSY UNIT FRONT COVER CONDENSER FAN MOTOR EVAP ASSY BOTTOM HINGE (L) UNIT BRACKET (A) COUNTERTOP TOP HINGE (L) CASTER EVAP FAN AIR GUIDE DOOR (L)-1200...

  • Page 6: Jur-72S-N6 Exploded View

    JUR-72S-N6 EXPLODED VIEW PART NAME MAIN PCB COVER EVAP DRAIN GUIDE SUCTION PIPE FRONT PCB AIR GUIDE (L/R) COMPRESSOR ASSY UNIT FRONT COVER EVAP DUCT DRYER BOTTOM HINGE (L) EVAP FAN MOTOR DRAIN PAN TOP HINGE (L) EVAP ASSY CONDENSER FAN MOTOR DOOR (L)-1800 COUNTERTOP UNIT BRACKET (A)

  • Page 7: Wiring Diagrams

    WIRING DIAGRAMS JUR-36S-N6 FRONT -PCB COOLING FAN D-SENSOR MOTOR R-SENSOR PROTECTOR DRAIN HEATER MAIN CONDENSER CONDENSER POWER EVAP STARTER CORD MOTOR MOTOR MOTOR RUNNING CAPACITOR LAMP EARTH JUR-48S/60S-N6 FRONT -PCB COOLING FAN D-SENSOR MOTOR R-SENSOR PROTECTOR DRAIN HEATER MAIN CONDENSER CONDENSER POWER EVAP...
  • Page 8 WIRING DIAGRAMS JUR-72S-N6 FRONT -PCB COOLING FAN D-SENSOR MOTOR R-SENSOR PROTECTOR DRAIN HEATER MAIN CONDENSER CONDENSER POWER EVAP STARTER MOTOR MOTOR CORD MOTOR RUNNING CAPACITOR LAMP EARTH...

  • Page 9: Main Components

    MAIN COMPONENTS COMPRESSOR MODEL PART NO. CAPACITY TYPE OF INPUT MAKER PART NAME RSCR JUR-36S-N6 HYE90MGU72a 115V 60HZ RSCR JUR-48S-N6 HYE90MGU72a 115V 60HZ RSCR 115V 60HZ JUR-60S-N6 HYE105MGU72a RSCR 115V 60HZ JUR-72S-N6 HYE105MGU72a COMPRESSOR CAPACITOR MODEL PART NO. RUNNING PART NO. MAKER NOTE STARTING...

  • Page 10: Parts List

    PARTS LIST MODEL PART NAME PART CODE DESCRIPTION JUR-36S-N6 JUR-48S-N6 JUR-60S-N6 JUR-72S-N6 COUNTERTOP ASSY KR60680101 COUNTERTOP ASSY KR20680101 COUNTERTOP ASSY KR60680101 COUNTERTOP ASSY KR90680101 DOOR ASSY (L)-1200 JUR4805104 DOOR ASSY (R)-1200 JUR4805202 DOOR ASSY (L)-1500 JUR6005104 DOOR ASSY (R)-1500 JUR6005202 DOOR ASSY (L)-1800 JUR7205402 DOOR ASSY (M)-1800...
  • Page 11 PARTS LIST MODEL PART NAME PART CODE DESCRIPTION JUR-36S-N6 JUR-48S-N6 JUR-60S-N6 JUR-72S-N6 DRYER BR84100101 CONDENSER ASSY JUR600105 CONDENSER FAN MOTOR 4511003050 EVAP FAN MOTOR 4511003050 DISPLAY PCB JR85400101 MAIN PCB BR85400100 POWER CORD M721300202 R SENSOR K3F5102100 D SENSOR K3F5102001 MAIN PCB COVER (B) KR81400100 ASSY MULLION (90mm)

  • Page 12: Temperature Control Instruction

    TEMPERATURE CONTROL INSTRUCTION BASIC OPERATION 1. Plug in and the Display panel will be lighted and make a beep sound. The compressor will begin to run. 2. The compressor is automatically cycled by the electronic controller (PCB). 3. The Defrost cycle is automatically controlled by the PCB. 4.

  • Page 13: Replacement Of Main Components

    REPLACEMENT OF MAIN COMPONENTS REPLACING DOOR A. Unscrew the top hinge B. Lift the door REFRIGERATION COMPARTMENT PARTS A. Disassemble the evaporator duct assembly B. Disassemble the harness motor C. Remove the evaporator fan motor D. Remove the air guide (L/R) E.

  • Page 14: Compressor Compartment Parts

    REPLACEMENT OF MAIN COMPONENTS COMPRESSOR COMPARTMENT PARTS A. Disassemble the unit front cover assembly B. Disassemble the unit side cover C. Remove the mech cover D. Remove the comp base E. Disassemble the condensing unit...
