Turbo Air TSR-23SD Installation And Operation Manual

Hide thumbs Also See for TSR-23SD:

Advertisement

Table of Contents

See also: Service Manual

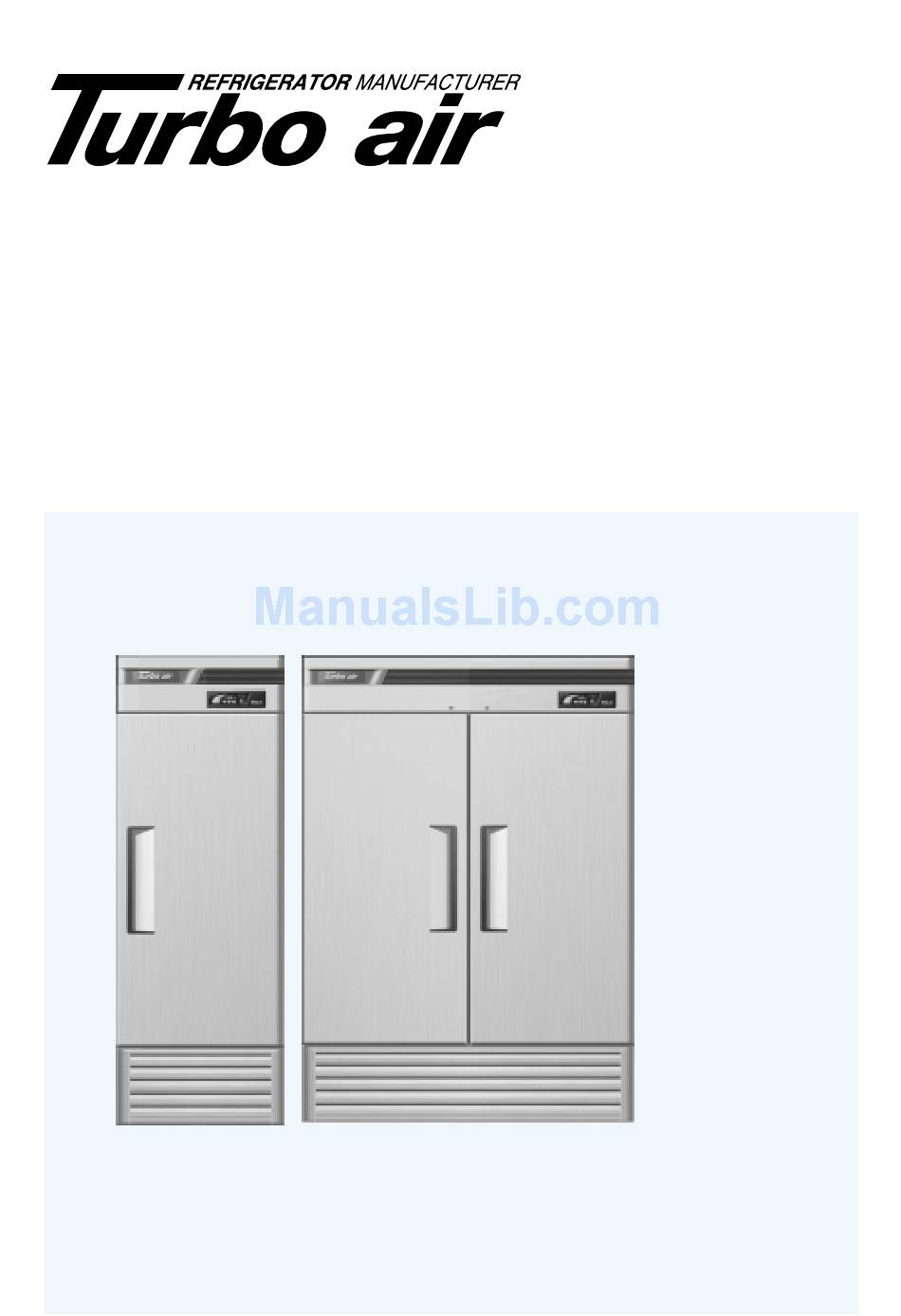

Turbo air Speeds Up the Pace of Innovation
Refrigerator
Freezer
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
Full Stainless Steel Interior and Exterior
CAUTION!
PLEASE KEEP POWER SWITCH ON
BEFORE OPERATING FREEZER
Refrigerator
TSR-23SD
TSR-49SD
TSR-72SD
Freezer
TSF-23SD
TSF-49SD
TSF-72SD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSR-23SD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Turbo Air TSR-23SD

Summary of Contents for Turbo Air TSR-23SD

  • Page 1 Turbo air Speeds Up the Pace of Innovation CAUTION! PLEASE KEEP POWER SWITCH ON Refrigerator BEFORE OPERATING FREEZER Freezer Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! Refrigerator TSR-23SD TSR-49SD TSR-72SD...

  • Page 2: Table Of Contents

    5. BASIC OPERATION 5-1. REFRIGERATORS ................5~8 5-2. FREEZERS..................9~12 6. BEFORE REQUESTING SERVICE ............13 7. WARRANTY ..................14~15 SPECIFICATION Refrigerators MODEL COMP H.P. V/Hz REFRIGERANT AMPS WEIGHT TSR-23SD 115V/60Hz R-134a 5.5A 265lbs TSR-49SD 115V/60Hz R-134a 9.2A 397lbs TSR-72SD 115V/60Hz R-134a...

  • Page 3: Installation

    - Be sure to avoid any partition and object which may stop the air flow. - Be sure that air space is allowed to flow the rear of the unit. Turbo air recommends that the rear of the unit would be no less than 5 inches from the wall.

  • Page 4: Cleaning

    - Dual voltage freezer (TSF-72SD) requires receptacle as shown the right sides. - Compressor warranties are void if compressor burns out due to low voltage. 2. RE-STARTING - If disconnected, wait for 5 minutes before re-starting. Turbo air...

  • Page 5: Basic Operation

    BASIC OPERATION TSR-23SD REFRIGERATORS TSR-49SD TSR-72SD 1. Plug in and turn on the power switch located on the bottom of the top grille right side. The Display panel will be lighted and make a beep sound. The compressor will begin to run.
  • Page 6 DISPLAY PANEL OF REFRIGERATOR TEMP. SETTING TEMP. CONTROL BUTTON (SEE TO PAGE 7) INNER TEMP. (SEE TO PAGE 8) ˚F TEMPERATURE TEMPERATURE T.C. DOOR TURBO COOLING TURBO COOLING TURBO COOLING BUTTON (SEE TO PAGE 7) FAN RUNNING DOOR OPENING Turbo air...
  • Page 7 UP/DOWN BUTTON (Temperature control button) 1. By pushing the up/down button, you can set the inside temperature level from ‘1’ to ‘9’. 2. If you want lower temperature, push the Down button to be lighted higher level numbers. Turbo air...
  • Page 8 3. In case of passing around 1 minute, warning beep sound will be ring again five (5) times. 4. In case of passing around 5 minutes, the beep sound will be ring continuously. 5. On all the conditions good, the beep sound will stop immediately if the door closed properly. Turbo air...

  • Page 9: Freezers

    7. Evaporator fan motor(s) will run after all doors are completely closed. 8. Good Air Flow in freezer unit is critical. Be careful to load product so that it neither presses against the back wall, nor reaches within four inches from the evaporator compartment. Turbo air...
  • Page 10 DISPLAY PANEL OF FREEZER TEMP. SETTING TEMP. CONTROL BUTTON (SEE TO PAGE 11) INNER TEMP. (SEE TO PAGE 12) ˚F TEMPERATURE TEMPERATURE D.F. DOOR MANUAL DEFROST MANUAL DEFROST MANUAL DEFROST BUTTON (SEE TO PAGE 11) FAN RUNNING DOOR OPENING Turbo air...
  • Page 11 3. Once all frost is eliminated, the temperature continues to rise until it reaches 60˚F (15˚C). When this temperature is sensed by the defrost limit control, the defrost control changes to refrigeration mode. 4. The panel displays “ ” during the defrost cycle. Turbo air...
  • Page 12 3. In case of passing around 1 minute, warning beep sound will be ring again five (5) times. 4. In case of passing around 5 minutes, the beep sound will be ring continuously. 5. On all the conditions good, the beep sound will stop immediately if the door closed properly. Turbo air...

  • Page 13: Before Requesting Service

    • The door gasket has come out. The following points are not malfunctions: • A water-flowing sound can be heard when the compressor stops. This is the sound of REFRIGERANT flowing. • The compressor does not run against defrosting function. Turbo air...

  • Page 14: Warranty

    ONE YEAR WARRANTY Turbo air warrants to the original purchaser of every new-Turbo air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of one (1) year from the date of original installation or 15 months after shipment date from Turbo air , whichever occurs first.
  • Page 15 3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. Trubo air is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.
