Sper scientific 850069 Instruction Manual

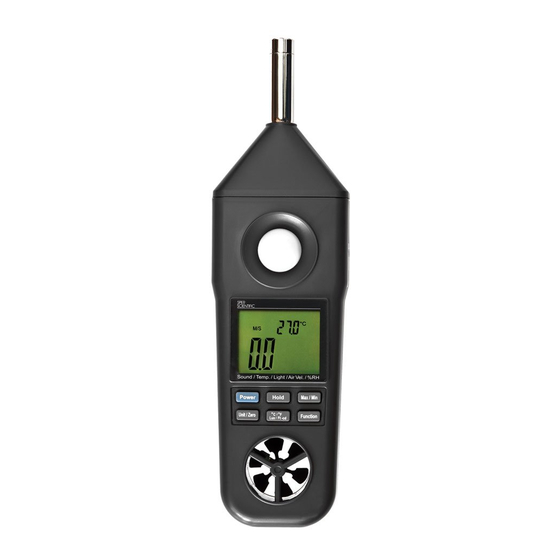

Environmental quality meter with sound
Hide thumbs Also See for 850069:
Table of Contents

Advertisement

Quick Links

Download this manual
Environmental Quality Meter
with Sound
850069
Instruction Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 850069 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sper scientific 850069

Summary of Contents for Sper scientific 850069

  • Page 1 Environmental Quality Meter with Sound 850069 Instruction Manual...
  • Page 2 Environmental Quality Meter with Sound 850069 Copyright ©2009 by Sper Scientific ALL RIGHTS RESERVED Printed in the USA The contents of this manual may not be reproduced or transmitted in any form or by any means electronic, mechanical, or other means that do not yet exist or may...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..............4 MATERIALS SUPPLIED ............6 FEATURES ................. 6 UNIT DESCRIPTION ............7 LCD DISPLAY ..............8 KEYPAD ................9 SOUND CALIBRATION ............. 10 MEASUREMENT PROCEDURES ........12 BATTERY REPLACEMENT ..........20 TROUBLESHOOTING ............21 SPECIFICATIONS ............. 22 OPTIONAL ACCESSORIES ..........

  • Page 4: Introduction

    INTRODUCTION The Sper Scientific Environmental Quality Meter with Sound 850069 is a 5-in-1 instrument that functions as a: • Sound-Level Meter—measures sound levels simulating the human ear using the A Weighting and Fast Time Weighting to meet the International Electrotechnical Commission (IEC) standards (61672, class 2).
  • Page 5 The rugged, light-weight and portable design of the Environmental Quality Meter allows you to use it almost anywhere to monitor elements and maintain a healthy and safe environment. Recommended exposure limits for the various elements have been set through government organizations such as the US Occupational Safety and Health Administration (OSHA) and the National Institute for Occupational Safety and Health (NIOSH).

  • Page 6: Materials Supplied

    MATERIALS SUPPLIED • Meter • Soft Carrying Case • Six AAA 1.5 V Batteries • Instruction Manual FEATURES • Multi-Purpose 5-in-1 Meter • Rugged, Light-Weight, and Portable • Accurate and Easy-to-Use • One-Button Control • Hold • Minimum and Maximum Recall •...

  • Page 7: Unit Description

    UNIT DESCRIPTION Sound Sensor RS232 Tripod Screw & and Battery DC 9V Compartment Power (Back of Unit) Adapter Ports (Side of Unit) Light Sensor Displa y Easel Stand (Back of Unit) Humidity Sensor (Back of Unit) Air Flow Temperature Thermocouple Sensor Input Port (Bottom of Unit)

  • Page 8: Lcd Display

    LCD DISPLAY LCD DISPLAY Sound–Level Measurement Units The decibel (dB) is a logarithmic unit of measure that expresses the power or intensity of an acoustic sound. Light–Level Measurement Units Both Lux and Ft-cd (Foot Candle) measure luminance. Ft-cd Lux = lumens per square meter. Ft-cd = lumens per square foot .

  • Page 9: Keypad

    KEY PAD Turns the unit on/off Freezes current measurement value Clears recorded min/max values Enters Record Mode Displays recorded min/max values Changes unit of measure for anemometer Calibrates the light sensor Changes unit of measure for light meter and temperature scale Selects measurement mode...

  • Page 10: Sound Calibration

    SOUND CALIBRATION This procedure requires an optional 2-Point Acoustical Cali- brator (850016): 1. Using the directions that accompany the Acoustical Cali- brator, ensure that the calibrator is operational and is equipped with the ½” microphone adapter. 2. Insert meter’s sound probe into the calibrator. 3.
  • Page 11 Note… To calibrate the sound meter, you must change the current reading to match the calibration point of the acoustical cali- brator (e.g., 94 dB). Press POWER at any time to cancel the calibration procedure. 6. Press °C/°F to increase the calibration point value or press Function to decrease the value to match the desired calibration setting.

  • Page 12: Measurement Procedures

    MEASUREMENT PROCEDURES Sound-Level Measurement 1. Ensure that the sound sensor at the top of the meter is free from obstruction. 2. Hold the meter with the sound sensor pointing toward the noise source and press POWER to turn the meter on. 3.
  • Page 13 When measuring intense light, the meter displays x10 to indicate that the value displayed is 1/10 the actual value. Air-Velocity Measurement 1. Press POWER to turn the meter on. 2. Continuously press FUNCTION until the meter displays the wind-speed and ambient temperature measuring units (ft/min, m/S, km/h, MPH, knots, °C, °F).
  • Page 14 Relative Humidity Measurement 1. Press POWER to turn the meter on. 2. Continuously press FUNCTION until the meter displays the relative humidity and ambient temperature measuring units (%RH, °C, °F). Because the hygrometer readings are taken while holding the meter upside-down, the measurement values display upside-down on the LCD (180°...
  • Page 15 Thermocouple Temperature Measurement This procedure requires an optional Type-K thermocouple probe. 1. Press POWER to turn the meter on. 2. Ensuring correct polarity (+ –), carefully plug a Type-K thermocouple probe into the Temperature Thermocouple Input Port at the bottom of the meter. Temperature differences between the probe and the meter may cause inaccurate results.
  • Page 16 Hold Mode Selection 1. Press POWER to turn the meter on. 2. Using the FUNCTION button, select your desired measurement function (Sound, Light, Air-Velocity, Relative Humidity, or Temperature). 3. When a value displays that you want to retain, press HOLD. The meter freezes the current measurement value and discontinues measurement while in Hold Mode.
  • Page 17 Record Mode & Auto-Off Selection To save battery life, the Environmental Quality Meter turns off automatically after 10 minutes of inactivity. To override this feature: 1. With the meter turned on, press MAX/MIN. The meter displays REC, disables the Auto-Off feature, and enters Record Mode.
  • Page 18 3. To clear the MAX/MIN values and continue recording, press HOLD. The meter clears the previously recorded MAX/MIN values and enters Record Mode. 4. To exit the Record Mode, press and hold MAX/MIN for 2 seconds. The meter exits Record Mode, displays the current reading value, and resets to automatically turn off after 10 minutes of inactivity.
  • Page 19 Hands-Free Operation The Environmental Quality Meter includes both a built-in mini- easel and a tripod screw-mount for easy hands-free monitoring. Field Tripod (840093) is available as optional accessories and attach simply via the screw-mount located on the back of the meter. To use the easel: 1.

  • Page 20: Battery Replacement

    BATTERY REPLACEMENT 1. If the meter displays the low battery icon , press POWER to turn the meter off. 2. Use a small Philips screwdriver to unscrew the two screws that secure the battery compartment and remove the cover. 3. Remove the old batteries and replace with 6 new AAA batteries, ensuring correct polarity.

  • Page 21: Troubleshooting

    TROUBLESHOOTING No Display: • Ensure that you have pressed POWER for longer than 100mS. • Ensure that the batteries are in good condition, have proper contact, and are in correct polarity. When in doubt, replace the batteries.(Refer to Battery Replacement page 24.) Display Disappeared: •...

  • Page 22: Specifications

    SPECIFICATIONS General Specifications Size 9.8” (H) x 2.8” (W) x 1.3” (D) 248 mm (H) x 70 mm (W) x 34 mm (D) Weight 11.8 oz. (335g) Including Batteries Power DC 1.5 V battery (UM4, AAA) x 6 Supply Or DC 9V adapter input Power Anemometer: Approx.
  • Page 23 Light & Sound Meter Specifications Unit Range Resolution Accuracy 0 ~ 2,000 Lux 1 Lux 1800 ~ 20,000 Lux 10 Lux ±5% rdg ±8 dgt 0 ~ 204.0 Ft-cd 0.1 Ft-cd Ft-cd 170 ~ 1860 Ft-cd 1 Ft-cd ± 1.5 dB 35 ~ 130 dB 0.1 dB @ 23±5°C...
  • Page 24 Thermometer & Hygrometer Specifications Unit Range Resolution Accuracy °C 0 ~ 50 °C 0.1 °C ±1.2 °C (Ambient) °F 32 ~ 122 °F 0.1 °F ±2.5 °F (Ambient) °C ±1% rdg -100 ~ 1300 °C 0.1 °C (Type-K) + 1 °C °F ±1% rdg -148 ~ 2372 °F...

  • Page 25: Optional Accessories

    OPTIONAL ACCESSORIES 800044 Replacement PT 100 Probe 800060 Small Type K Immersion Thermometer Probe 800080 Small Type J Immersion Thermometer Probe 800061 Large Type K Immersion Thermometer Probe 800081 Large Type J Immersion Thermometer Probe 800062 High Temp Type K Immersion Thermometer Probe 800064 Small Type K Penetration Thermometer Probe...

  • Page 26: Environment References

    ENVIRONMENT REFERENCES Refer to any of the following organizations for current and reliable data regarding recommended exposure limits for the various elements. • American Conference of Governmental Industrial Hygienists (www-acgih.org). • American Industrial Hygiene Association (www.aiha.org). • Canadian Centre for Occupational Health & Safety (www.ccohs.ca).

  • Page 28: Warranty

    WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of five (5) years from the date of purchase, and agrees to repair or replace any defective unit without charge. If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available.
