Manometer
SD Card Loggers
850097, 850098, 850099
Instruction Manual
Environmental Measurement Instruments

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 850097 and is the answer not in the manual?

Questions and answers

Related Manuals for Sper scientific 850097

Summary of Contents for Sper scientific 850097

  • Page 1 Manometer SD Card Loggers 850097, 850098, 850099 Instruction Manual Environmental Measurement Instruments...
  • Page 3 Manometer SD Card Loggers 850097, 850098, 850099 Copyright ©2020 by Sper Scientific ALL RIGHTS RESERVED Printed in the USA The contents of this manual may not be reproduced or transmitted in any form or by any means electronic, mechanical, or other means that do not yet exist or may...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Introduction................5 Features.................6 Materials Supplied..............7 Keypad...................8 Meter Components..............9 Setup Mode................10 Measurement Procedures............15 Datalogger................19 Battery Replacement............22 Troubleshooting..............22 Specifications...............23 Warranty................26...

  • Page 5: Introduction

    INTRODUCTION Sper Scientific Manometer SD Card Loggers read differential pressure in air and in non-corrosive and non-ionized gas but they are not to be used with liquids. They record data with date and time onto standard SD memory cards (like a digital camera).

  • Page 6: Features

    FEATURES • 10 units of measure • Maximum and Minimum • Auto power off • Low battery indicator • Hold function • Zero Adjustment • Backlight • Touch-tone • Direct upload of data to Excel • SD memory card datalogger •...

  • Page 7: Materials Supplied

    MATERIALS SUPPLIED • Meter • Tubing and pipe connection lugs • SD Card • 6 AA Batteries • Instruction Manual • Soft Carrying Case OPTIONAL ACCESSORIES 840058 USB Power Cable 840097 AC Adapter 840059 Additional SD Card 840093 Field Tripod 840090 Water Resistant Instrument Pouch...

  • Page 8: Keypad

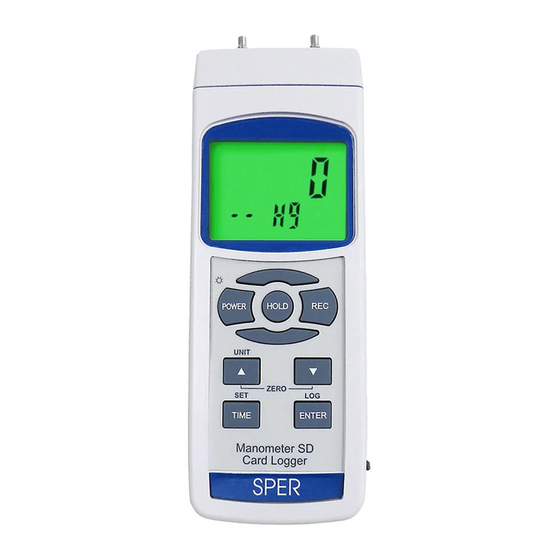

    METER COMPONENTS Keypad 1. LCD Display 2. POWER 3. HOLD/ ESC 4. SET/ (TIME CHECK) 5. LOG/ENTER /UNIT...
  • Page 9 Side of Meter 8. RESET 9. DC9V Power Adapter Input Socket Back of Meter 10. Battery Cover Screws 11. Tripod Mounting Screw 12. Tripod Stand Top of Meter 13. Tubing Inputs Bottom of Meter 14. SD Card Socket 15. Tubing Couplers Please Note: Tubing Not Included...

  • Page 10: Setup Mode

    SETUP MODE The advanced Setup Mode allows you to customize the following meter preferences and defaults: dATE - Set time & date SP-T - Sampling time interval PoFF - Auto Power Off bEEP - Touch-Tone On/Off - Set SD card decimal type - Format SD memory Note…...
  • Page 11 Entering Setup Mode 1. Press POWER to turn the meter on. 2. Press and hold SET for at least 2 seconds to enter Setup Mode. 3. Press SET again to cycle through the setup functions. Note… Press HOLD to exit Setup Mode. The meter will return to Normal Mode.
  • Page 12 Sampling Time Sampling time is the time allotted between successive measurements. To adjust the sampling time (in seconds): 1. Enter the sampling time function from Setup Mode (see page 10). “SP-t” appears on the LCD. 2. Press to adjust the value. 3.
  • Page 13 Touch-Tone 1. Enter the touch-tone function from Setup Mode (see page 10). “bEEP” appears on the LCD. 2. Press to select yes (touch-tone enabled) or no (touch-tone disabled). Press ENTER to save the selection. 3. Press SET to move to the next setting. Decimal Type Although the decimal is commonly expressed as the “.”...
  • Page 14 SD Memory Card Format This function will format the SD memory card to work specifically with your meter. New SD cards should always be formatted before first use. Formatting the SD card will erase any previous memory on the card. 1.

  • Page 15: Measurement Procedures

    MEASUREMENT PROCEDURES Turning the Unit On/Off 1. Press POWER to turn the meter on. 2. Press and hold POWER for ≥2 seconds to turn the meter off. Selecting the Unit of Measure Press and hold the UNIT button to cycle through the options listed below.
  • Page 16 Zero Adjustment If the display does not show a value of 0 with no pressure source connected to the meter zero adjustment is needed. 1. Press and hold simultaneously for at least 2 seconds until the display shows zero. Caution: Not for use with liquids. Use with non-corrosive and non-ionized air and gas only.
  • Page 17 Maximum and Minimum To record maximum and minimum readings: 1. When measuring press REC to begin recording the maximum and minimum values. “REC” appears on the LCD. 2. Press REC. The maximum value and “REC MAX” appears on the LCD. 3.
  • Page 18 Backlight The backlight turns on automatically when the meter is turned on. 1. Press POWER once to turn the backlight off. 2. Press POWER again to turn the backlight on. View Real Time Clock and Sampling To view the time function during normal measurement (not during datalogging): 1.

  • Page 19: Datalogger

    DATALOGGER Preparing the Datalogger 1. Insert the SD card into the SD card socket on the bottom of the meter, ensuring that the front of the SD card faces the back of the meter. 2. Format the SD card as needed (see page 14). 3.
  • Page 20 Manual Datalogging 1. Set the sampling time to 0 seconds (see page 12). 2. Press LOG for 2 seconds, “Datalogger” will appear on the LCD. 3. Press LOG again each time you wish to record a measurement. The tone will sound as the measurement data and time information are saved to memory.
  • Page 21 SD Card Data Structure 1. The first time a SD card is used in this meter, a folder EMA01 will be generated. 2. If the datalogger is being used for the first time, a new file EMA01001.XLS will be generated under the route EMA01\.

  • Page 22: Battery Replacement

    BATTERY REPLACEMENT This meter uses six AA (1.5V, UM3) batteries. When the low battery indicator appears on the LCD, battery replacement is needed. After the icon appears on the LCD, in-spec measurement can still be made for several hours before becoming inaccurate. 1.

  • Page 23: Specifications

    SPECIFICATIONS Circuit Custom one-chip of microprocessor LSI circuit Display LCD size: 52 mm x 38 mm LCD with green backlight (ON/OFF) Datalogger Auto 1 second to 8 hours 59 Sampling Time minutes and 59 seconds. Setting Range Sampling time can set to 1 second, but memory data may loss.
  • Page 24 • Alkaline or heavy-duty DC 1.5 V battery Power Supply (UM3, AA) x 6 PCs, or equivalent • DC 9V adapter input (AC/DC power adapter is optional) Power Usage Normal operation (w/o SD card memory usage and LCD Backlight off): Approx.. DC 15 mA.
  • Page 25 850097 850098 850099 Unit of Range Res. Range Res. Range Res. Measure mbar 2000 7000 0.001 0.01 101.5 0.05/0.1 kg/cm2 0.204 0.001 2.04 0.001 7.135 0.005 mm Hg 1500 5250 inch Hg 5.905 0.002 59.05 0.02 206.7 Meters H20 2.040 0.001...

  • Page 26: Warranty

    WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of five (5) years from the date of purchase, and agrees to repair or replace any defective unit without charge. If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available.
  • Page 28 5/13/2020...
