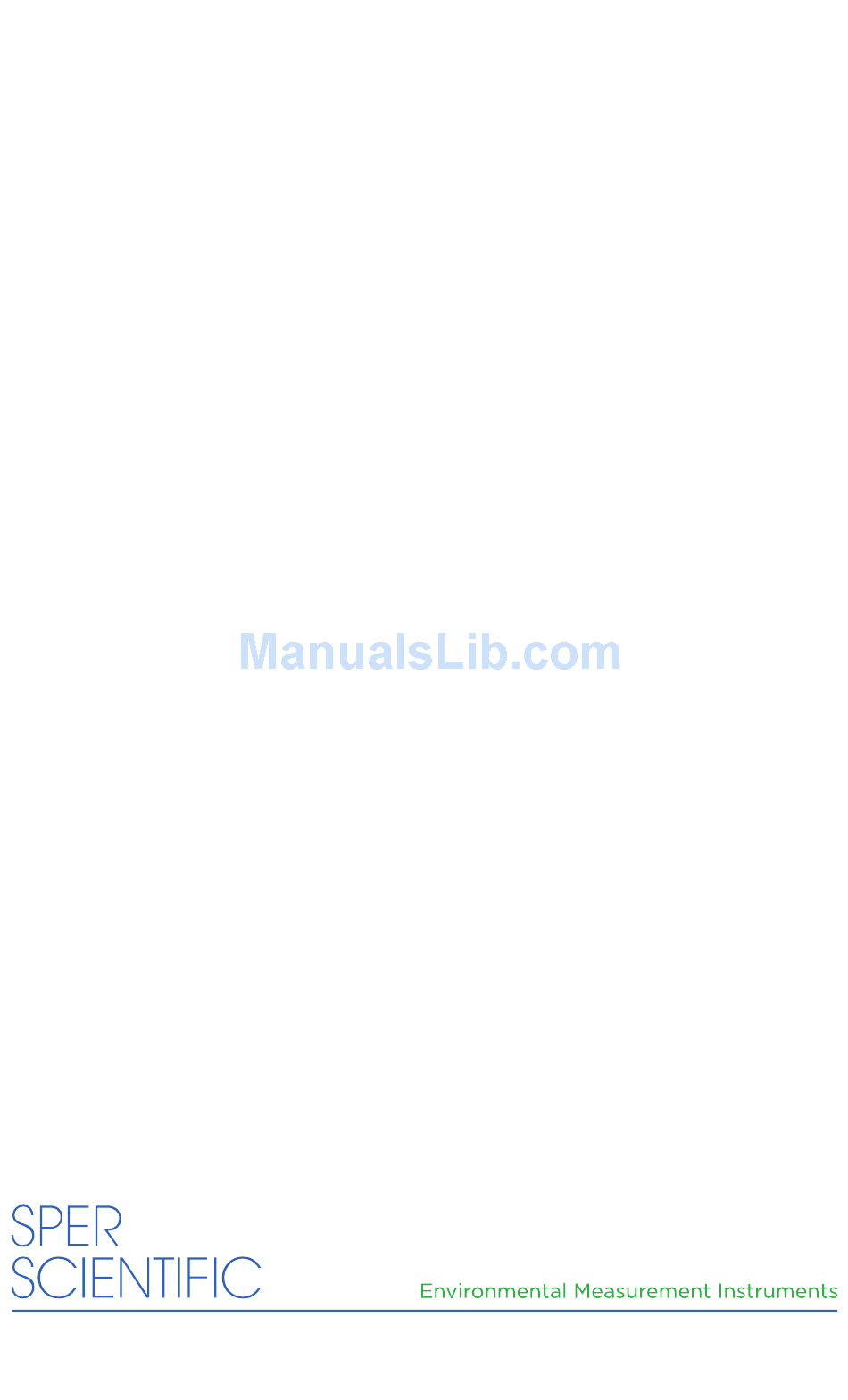

- Page 1 Anemometer SD Card Datalogger 850023 Instruction Manual...
- Page 2 Anemometer SD Card Datalogger 850023 Copyright ©2010 by Sper Scientific ALL RIGHTS RESERVED Printed in the USA The contents of this manual may not be reproduced or transmitted in any form or by any means electronic, mechanical, or other means...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..............4 FEATURES ................5 MATERIALS SUPPLIED ............6 POWER SUPPLY ..............7 METER COMPONENTS ............8 KEYPAD ................10 SETUP MODE ..............11 MEASUREMENT PROCEDURES ........15 DATALOGGER ..............19 BATTERY REPLACEMENT ..........22 TROUBLESHOOTING ............23 PC CONNECTION ............27 OPTIONAL ACCESSORIES ..........27 SPECIFICATIONS .............28 WARRANTY ..............32... -
Page 4: Introduction

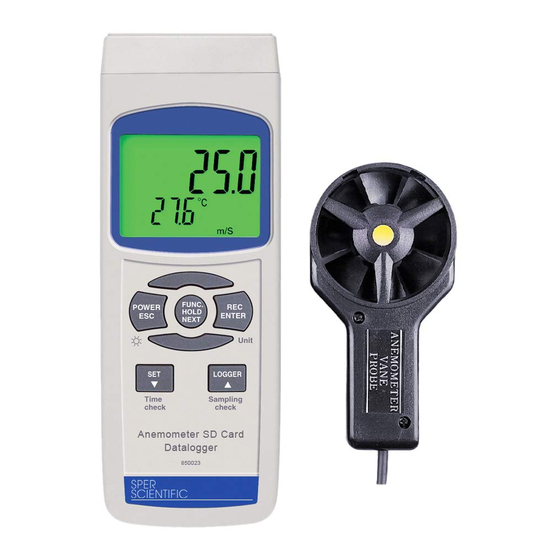

INTRODUCTION The Sper Scientific Anemometer SD Card Datalogger (Model 850023) is an extremely accurate meter with fast response times that reads air temperature and velocity, and functions as a Type K/J thermocouple thermometer. This meter features a real time SD memory card datalogger. -
Page 5: Features
FEATURES ● Reads air velocity and temperature and functions as a Type K/J thermometer ● Low-friction ball vane wheels provide high accuracy in high and low velocities ● SD memory card datalogger ● Manual datalogger option ● Fast response time for air temperature ●... -
Page 6: Materials Supplied
MATERIALS SUPPLIED ● Meter ● Probe ● SD Card ● 6 AA Batteries ● Instruction Manual ● Soft Carrying Case... -
Page 7: Power Supply
POWER SUPPLY This meter can be powered by six AA (1.5 V, UM3) batteries or an optional 9 Volt DC adapter. See page 22 for battery replacement instructions. Plug the adaptor into the power port labeled ″DC 9V,″ located on the side of the meter. Note…... -
Page 8: Meter Components
METER COMPONENTS Top of Meter Type K/J Anemometer Probe Thermometer Input Socket Socket Bottom of Meter SD Card Socket Side of Meter RS232 Output RESET DC 9V Adapter Input Socket... - Page 9 METER COMPONENTS Back of Meter Tripod Battery Cover Mounting Screws Screw Battery Stand Compartment/ Cover Probe Probe Head Probe Handle Probe Plug...
-
Page 10: Keypad
KEYPAD Display HOLD/NEXT/ POWER FUNCTION (ESC, Backlight) REC/ENTER/ UNIT SET (▼, LOGGER (▲, TIME SAMPLING CHECK) TIME CHECK) -
Page 11: Setup Mode
SETUP MODE The advanced Setup Mode allows you to customize the following meter preferences and defaults: ● Real Time Clock ● Decimal Type ● Auto Power Off ● Touch-Tone ● Thermometer Type K/J ● Temperature Units ● Sampling Time ● SD Memory Card Format Note…... - Page 12 SETUP MODE Note… Press ESC to exit Setup Mode. The meter will return to Normal Mode. Real Time Clock 1. Enter the clock function from Setup Mode (see page 11). ″dAtE″ appears on the LCD. 2. Press ENTER. The year will appear on the LCD. 3.
-
Page 13: Temperature Units
SETUP MODE 2. Press ▲ or ▼ to select Basic (.) or Euro (,). Press ENTER to save the selection. Auto Power Off The meter automatically turns off after 10 minutes of inactivity, however this function can be disabled. 1. Enter the auto power off function from Setup Mode (see page 11). - Page 14 SETUP MODE 2. Press ▲ or ▼ to select C (degrees Celcius) or F (degrees Farhenheit). Press ENTER to save the selection. Sampling Time The sampling time is the time allotted between successive measurements. To adjust the sampling time (in seconds): 1.
- Page 15 SETUP MODE Turning the Unit On/Off 1. Press POWER to turn the meter on. 2. Press and hold POWER for 2 seconds to turn the meter off. Selecting the Function 1. Press and hold FUNC to cycle through the options listed below.
-
Page 16: Measurement Procedures
MEASUREMENT PROCEDURES Air Velocity and Air Temperature 1. Press POWER to turn the meter on. 2. Plug the anemometer probe plug into the anemometer probe input socket. 3. Press and hold FUNC to cycle through the options until ″An″ appears on the LCD. Release the FUNC button. 4. -
Page 17: Hold Function
MEASUREMENT PROCEDURES 5. ″K" or " J″ appear on the LCD to indicate the type of thermometer. Note… When using the meter for the first time, the meter will default to K type thermocouple. See page 13 for instructions on selecting the thermocouple type. - Page 18 MEASUREMENT PROCEDURES 5. To exit the min/max function, press and hold REC for 2 seconds or longer. The meter will return to Normal Mode. Note… The meter cannot be turned off from the memory record function. Exit the function, then press and hold POWER to turn the meter off.
-
Page 19: Datalogger
DATALOGGER Preparing the Datalogger 1. Insert the SD card into the SD card socket on the bottom of the meter, ensuring that the front of the SD card faces the back of the meter. 2. Format the SD card as needed (see page 14). 3. - Page 20 DATALOGGER Note… To enable/disable the touch-tone feature, see page 13. Manual Datalogging 1. Set the sampling time to 0 seconds. Refer to page 14. 2. Press REC. “REC will appear on the LCD. 3. Press LOGGER. “REC” will flash on the LCD and the alarm will sound while the measurement data and time information are saved to memory.
- Page 21 DATALOGGER 2. If the datalogger is being used for the first time, a new file AMA01001.XLS will be generated under the route AMA01\. After exiting the datalogger and executing the function again, the data is saved to the AMA01001.XLS file until the data reach 30,000 data columns. A new file will then be generated (i.e., AMA01002.XLS).
-
Page 22: Battery Replacement
BATTERY REPLACEMENT This meter uses six AA (1.5 V, UM3) batteries. When the low battery indicator appears on the LCD, battery replacement is needed. After the icon appears on the LCD, in-spec measurement can still be made for several hours before becoming inaccurate. - Page 23 PC CONNECTION To save data from the SD card to a PC (using Excel software): 1. After datalogging is complete, remove the SD card from the meter’s SD card socket. 2. Insert the SD card into the computer’s SD card slot (if built into the computer) or into a SD card adapter (ensuring that the adapter is connected to the computer).
- Page 24 PC CONNECTION Excel Data Screen RS232 PC Serial Interface This meter has a RS232 PC serial interface via a 3.5 mm terminal. The data output is a 16 digit stream that can be utilized for the user’s specific application. A RS232 lead with the following connection will be required to link the meter with the PC serial port:...
- Page 25 PC CONNECTION The 16 digit data stream will display in the following format: D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 Each digit indicates the following status: End word D1 & D8 Display reading, D1 = LSD, D8 = MSD For example: If the display reading is 1234, then D8 to D1 is 00001234...
- Page 26 PC CONNECTION D11 & D12 Annunciator for Display °C = 01 Knot = 09 mile/h = 12 °F = 02 Km/h = 10 m/S = 08 ft/min = 11 When send the upper display data = 1 When send the lower display data = 2 Start word RS232 Format: 9600, N, 8, 1 Baud rate...
-
Page 27: Pc Connection
PC CONNECTION 800060 to 77 Type K Thermocouple Probes 840057 RS232 Computer Cable 840059 SD Card 840090 Water Resistant Instrument Pouch 840093 Field Tripod 840094 USB Computer Cable 840097 AC Adaptor 850080 Software... -
Page 28: Specifications
SPECIFICATIONS General Circuit Custom one-chip of microprocessor LSI circuit Display LCD size: 52 mm x 38 mm Backlight function Measurement Unit Air Velocity: m/S (meters per second) Km/h (kilometers per hour) Ft/min (FPM, feet per minute)Knots (nautical miles per hour)Mile/h (mph, miles per hour) Air Temperature: °C, °F... - Page 29 SPECIFICATIONS Operating 0 to 50°C Temperature Operating Humidity < 85% RH Power Supply Alkaline or heavy duty DC 1.5 V battery (UM3, AA) x 6 pieces DC 9V adapter input (AC/DC power adapter is optional) Power Current Normal Operation (without use of the datalogger or backlight): Approximately DC 15 mA Datalogger Operation...
- Page 30 SPECIFICATIONS Air Velocity Measurement Range Resolution Accuracy 0.4 to 30.0 m/S 0.1 m/S ± (2% reading + 0.2 m/S) Km/h 1.4 to 126.0 0.1 Km/h ± (2% reading Km/h + 0.8 Km/h) mph (Mile/h) 0.9 to 78.3 mph 0.1 mph ±...
- Page 31 SPECIFICATIONS Type K/J Thermometer Measurement Range Resolution Accuracy Type K -50.0 to 1300.0°C 0.1°C ± (0.4% -50.1 to -100.0°C reading + 0.5°C) ± (0.4% reading + 1°C) -58.0 to 2372.0°F 0.1°F ± (0.4% -58.1 to -148.0°F reading + 1°F) ± (0.4% reading + 1.8°F) Type J...
-
Page 32: Warranty
WARRANTY Sper Scientific warrants this product against defects in materials and workmanship for a period of five (5) years from the date of purchase, and agrees to repair or replace any defective unit without charge. If your model has since been discontinued, an equivalent Sper Scientific product will be substituted if available.
