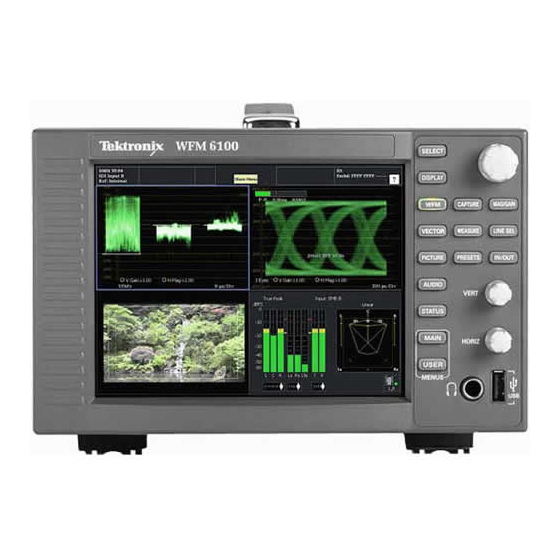

WFM61UP FP, WFM70UP FP, and WFM71UP FP
Front Panel Upgrade
WFM6100, WFM7000, and WFM7100
Waveform Monitors
075-0948-00
Warning
The servicing instructions are for use by qualified
personnel only. To avoid personal injury, do not
perform any servicing unless you are qualified to
do so. Refer to all safety summaries prior to
performing service.
www.tektronix.com
*P075094800*
075094800
Advertisement
Table of Contents
Related Manuals for Tektronix WFM6100
Summary of Contents for Tektronix WFM6100

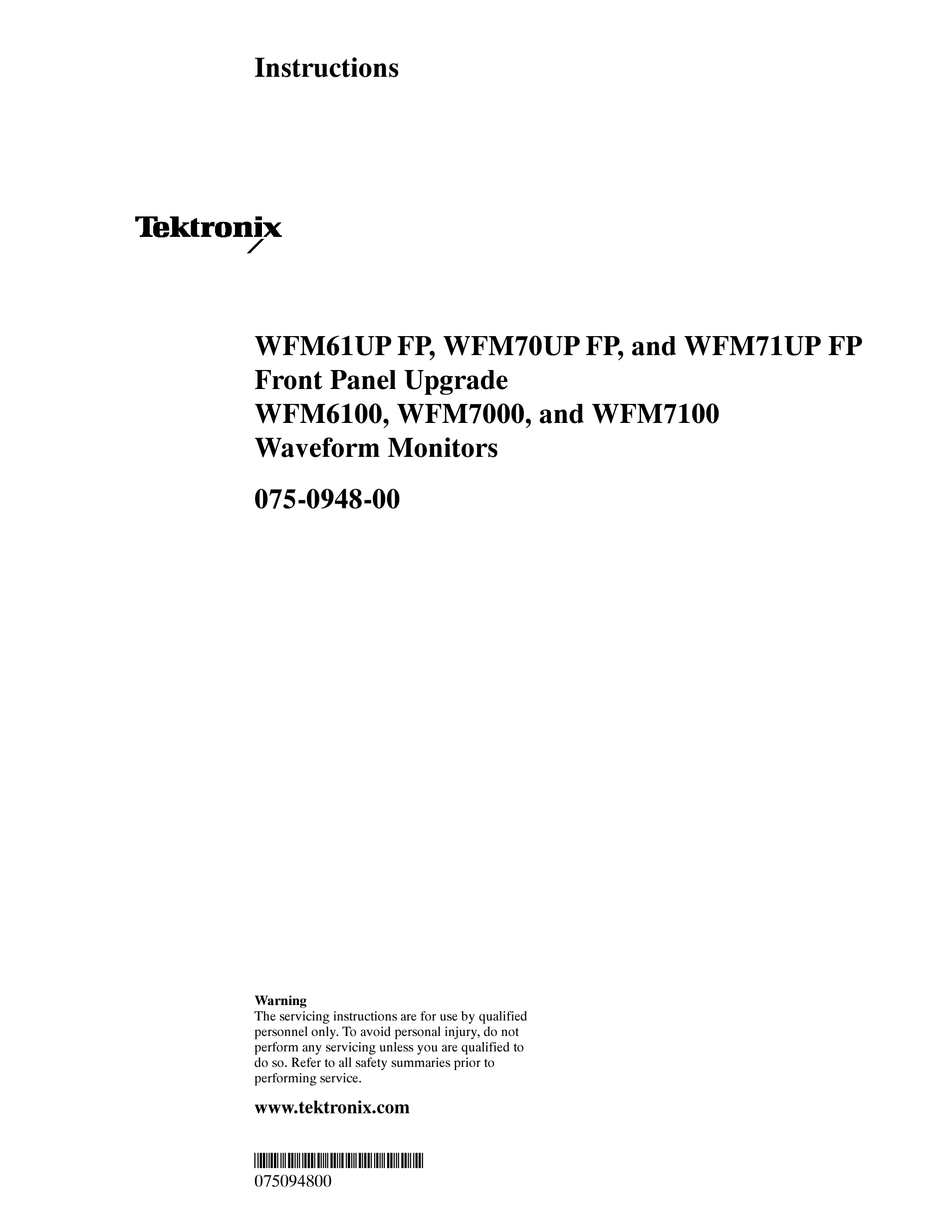

- Page 1 Instructions WFM61UP FP, WFM70UP FP, and WFM71UP FP Front Panel Upgrade WFM6100, WFM7000, and WFM7100 Waveform Monitors 075-0948-00 Warning The servicing instructions are for use by qualified personnel only. To avoid personal injury, do not perform any servicing unless you are qualified to do so.
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material.
-
Page 3: Service Safety Summary
Service Safety Summary Only qualified personnel should perform service procedures. Read this Service Safety Summary before performing any service procedures. Do Not Service Alone. Do not perform internal service or adjustments of this product unless another person capable of rendering first aid and resuscitation is present. - Page 4 Service Safety Summary WFM61UP FP, WFM70UP FP, and WFM71UP...
-
Page 5: Kit Description
UPGRADE KIT INSTRUCTIONS (THIS DOCUMENT) 1 Each IMPORTANT DOCUMENTS ENVELOPE 1 Each 071-2191-01 MANUAL, TECH; SVCPT- - UPG; TEKTRONIX SUPPLE- MENTAL INFORMATION SHEET FOR THE PEOPLES REPUBLIC OF CHINA; CHINA ROHS NS - Not Saleable WFM61UP FP, WFM70UP FP, and WFM71UP... - Page 6 Kit Description WFM61UP FP, WFM70UP FP, and WFM71UP...
-
Page 7: Installation Instructions
These instructions are for personnel who are familiar with servicing the product. If you need further details for disassembling or reassembling the product, refer to the appropriate product manual. Contact your nearest Tektronix, Inc., Service Center or Tektronix Factory Service for installation assistance. -
Page 8: Update The Software
Installation Instructions Update the Software Before installing the new front panel assembly, you must first update the instrument software, located on the USB Flash Drive included in this kit. These instructions are written for a PC running Windows XP. NOTE. If a notebook computer is used, make sure it has a full battery charge or is connected to an AC power source. - Page 9 Installation Instructions Obtain waveform monitor These steps assume the instrument has already been configured for network IP address connection as described previously, and guided by a network administrator. 1. Press the MAIN button, then touch the Config softkey. 2. Touch the Utilities, then the Communications, and the Network Setup softkeys.
- Page 10 Installation Instructions Update the software In this procedure, you load the Upgrade Assistant file into the PC, check the waveform monitor software version, and run the Upgrade Assistant. 1. Find the plastic bag in the upgrade kit that contains the USB Flash Drive and the Option Key label, and plug the Flash Drive into a USB port on the PC.
- Page 11 10. Type WfmUpgrade in the Command Prompt window and press the Enter key. 11. The upgrade assistant will respond with: ###################################################### Copyright (C) 2007 Tektronix, Inc. # Before executing, confirm your existing software version as follows: # 1) Connect network cable # 2) Boot the instrument # 3) Press MAIN, then navigate to Config ->...
- Page 12 Installation Instructions 14. When the waveform monitor screen indicates the update has completed successfully, disconnect the power cord from the waveform monitor. NOTE. Do not reconnect power to the waveform monitor until after the front panel replacement, described below, is complete. Replace the Front Panel WARNING.
- Page 13 Installation Instructions Keying pins Keying pin Cabinet attaching screws Figure 1: Portable cabinet attaching screws Remove top cover The top cover is a slip-lock design. NOTE. If there is a Traceable Calibration sticker showing the last calibration date and the due date for the next calibration on top of the front panel frame, remove it carefully so you can reapply it after this update.
- Page 14 Installation Instructions Figure 2: Removing the top cover Remove fan bracket For better access to the connectors, the fan bracket may be removed as follows: (optional) 1. Remove the two T-10 screws that secure the fan bracket to the chassis, one on each side.
- Page 15 Installation Instructions 4. Disconnect the cables connecting the front panel/LCD assembly to the main board at J17, J18, and J29 (see Figure 3). J890 Figure 3: Old front panel cable connections 5. Lift the front panel assembly away and set it aside. CAUTION.
- Page 16 Installation Instructions J890 Figure 4: New front panel cable connections NOTE. As the new front panel does not use a touch screen no connection is made to J27. 9. Slide the front panel into the chassis, starting the bottom slightly before the top.
-
Page 17: Verify Operation
Installation Instructions Replace top cover 1. Place the top cover onto the instrument, making sure the cover fingers go into the slots in the chassis, and slide it forward. 2. Replace the four T-10 screws securing the top cover to the rear panel (see Figure 2). -
Page 18: Read The Manual
Read the Manual Operating your WFM6100, WFM7000, or WFM7100 waveform monitor will be somewhat different with this new front panel and software. Make sure to read the new Quick Start User manual for information on how to operate the instrument.
