This product requires assembly by an adult because of the small parts. Care should be
taken in unpacking and assembling this item to keep the small parts away from children.
WARNING
Young children can be seriously injured or killed, if furniture tips over.
Don't use this item for a TV stand.
Use angle-braces or anchors to secure furniture to the wall.
ASSEMBLY INSTRUCTIONS
TWO DOOR SPACESAVER
ADULT ASSEMBLY REQUIRED

Advertisement

loading
Need help?

Need help?

Do you have a question about the TWO DOOR SPACESAVER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge TWO DOOR SPACESAVER

Summary of Contents for RiverRidge TWO DOOR SPACESAVER

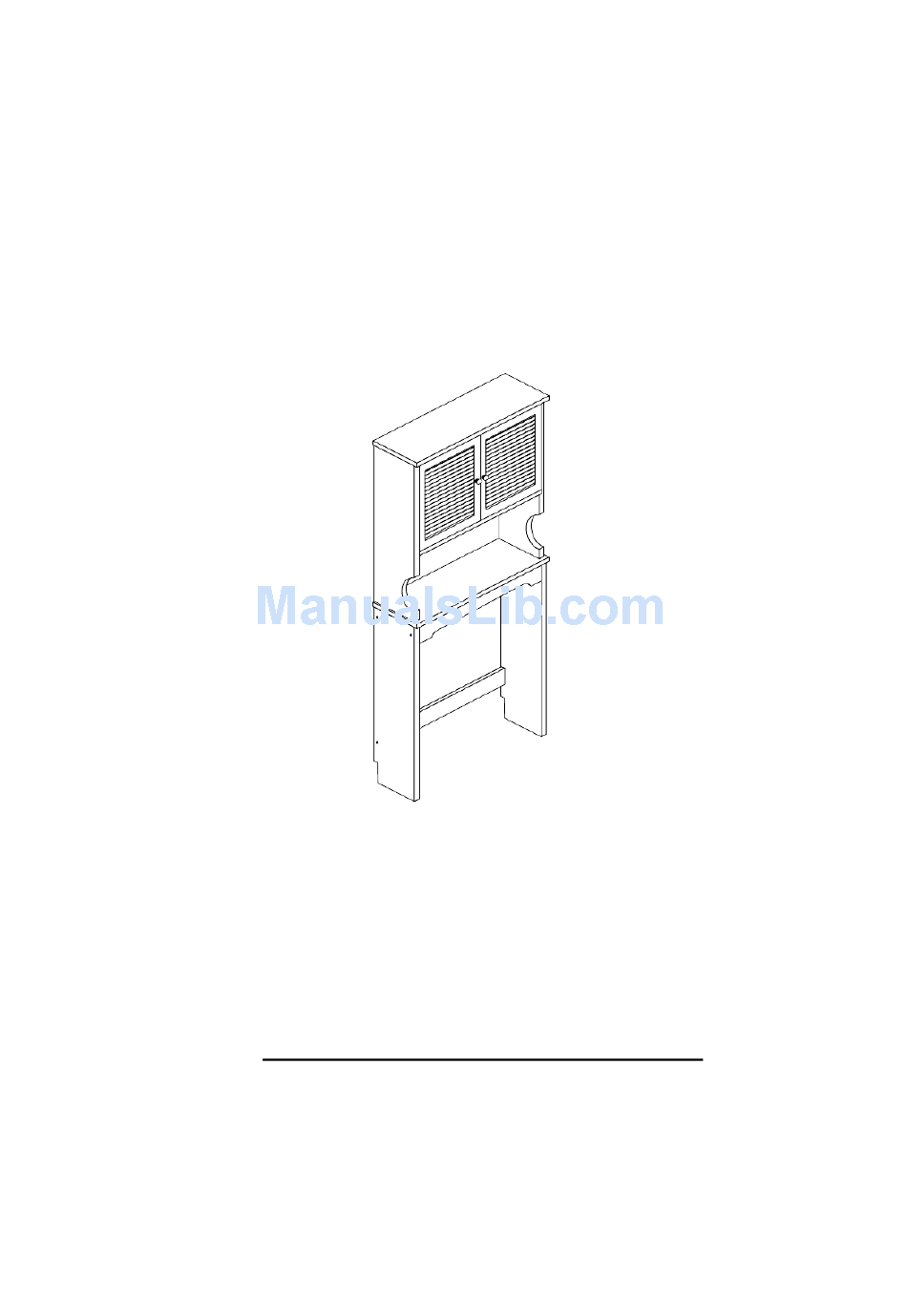

  • Page 1 ASSEMBLY INSTRUCTIONS TWO DOOR SPACESAVER ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of the small parts. Care should be taken in unpacking and assembling this item to keep the small parts away from children. WARNING Young children can be seriously injured or killed, if furniture tips over.
  • Page 2 THIS SHELF UNIT WILL HOLD UP TO 25 POUNDS PER SHELF OR A TOTAL OF 75 POUNDS. DO NOT LOAD EACH SHELF WITH MORE THAN 25 POUNDS. IF LOADED WITH MORE THAN 25 POUNDS PER SHELF AS THIS MAY CAUSE DAMAGE TO THE SHELF AND MAY CAUSE SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST...
  • Page 4 TOOLS NEEDED FOR ASSEMBLY : FLAT & PHILIPS SCREWDRIVER (NOT INCLUDED) THE USE OF POWER SCREWDRIVER IS NOT RECOMMENED...
  • Page 5 STEP 1 STEP 1 1.Screw 4 cam bolts (A) into the pre-threaded holes on the top board (1) by using a Philips screwdriver. 2. Insert 4 wood dowels (C) into the dowel holes on the top board (1). 3. Attach the magnet (D) to the top board (1). 4.
  • Page 6 STEP 3 STEP 3 1.Screw 2 cam bolts (A) into the pre-threaded holes on the top left side panel (3) by using a Philips screwdriver. 2.Insert 4 wood dowels (C) into the dowel holes on the top left side panel (3). STEP 4 STEP 4 1.
  • Page 7 STEP 5 STEP 5 1.Insert 8 wood dowels (C) into the dowel holes on the bottom left side panel (5). STEP 6 STEP 6 1.Insert 8 wood dowels (C) into the dowel holes on the bottom right side panel (6).
  • Page 8 STEP 7 STEP 7 1.Insert 1 screw (M) through hole on the magnet plate (E) then tighten to left side door (15)by using a Philips screwdriver. 2.Attach knob (H) to the left side door (15) , insert 1 screw (J) through hole on the left side door (15) then tighten to knob (H) by using a Philips screwdriver.
  • Page 9 STEP 9 STEP 9 1.Attach the top shelf (7) and bottom shelf (8) to the top right side panel (4) by inserting cam bolts into cam lock holes and inserting wood dowels into dowel holes on the top shelf (7) and bottom shelf (8).
  • Page 10 STEP 11 STEP 11 1.Attach the top left side panel (3) to the pre-assembled top shelf (7) and bottom shelf (8) by inserting cam bolts into cam lock holes and inserting wood dowels into dowel holes on the top shelf (7) and bottom shelf (8).
  • Page 11 STEP 13 STEP 13 1.Attach the bottom left side panel (5) to rear bottom cross bar (9) ,rear top cross bar (17)and front top cross bar (11) by inserting wood dowels into dowel holes on the rear bottomcross bar (9),rear top cross bar (17) and front top cross bar (11).
  • Page 12 STEP 15 STEP 15 1.Insert 4 screws (P) through holes on the middle connection board (2) then tighten to the bottom left side panel (5) and bottom right side panel (6) by using a Philips screwdriver. STEP 16 STEP 16 1.Place the top portion onto the middle connection board (2) by inserting the wood dowels into the dowel holes and cam bolts into cam lock holes on the end of both top side panels (3),(4) 2.
  • Page 13 STEP 17 STEP 17 1.Place the drawing with hole position on the wall that you desire to fix the spacesaver. 2.Drill 2 holes through the hole position on the drawing. 3.Insert 2 plastic anchors (F) into the holes. 4.Attach the spacesaver in place w/holes, then insert 2 long screws (G) through the holes on the back top cross bar (10) then tighten the spacesaver to the wall.
  • Page 14 ENJOY YOUR NEW CABINET NOW ! Attention Adults: The cabinet should be checked periodically for damage or loose screws/parts. Take appropriate action necessary to correct the hazard such as tightening of screws and taking any damaged parts away from the children. Thank you for purchasing this item.
