Summary of Contents for LaCimbali m100

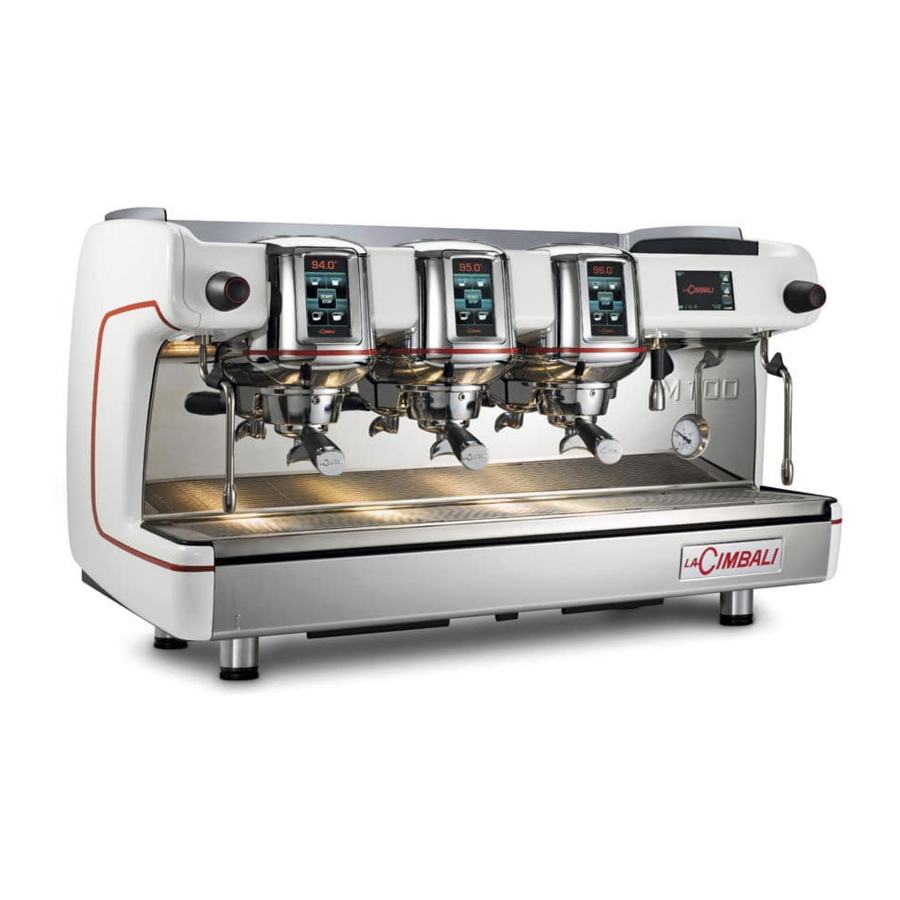

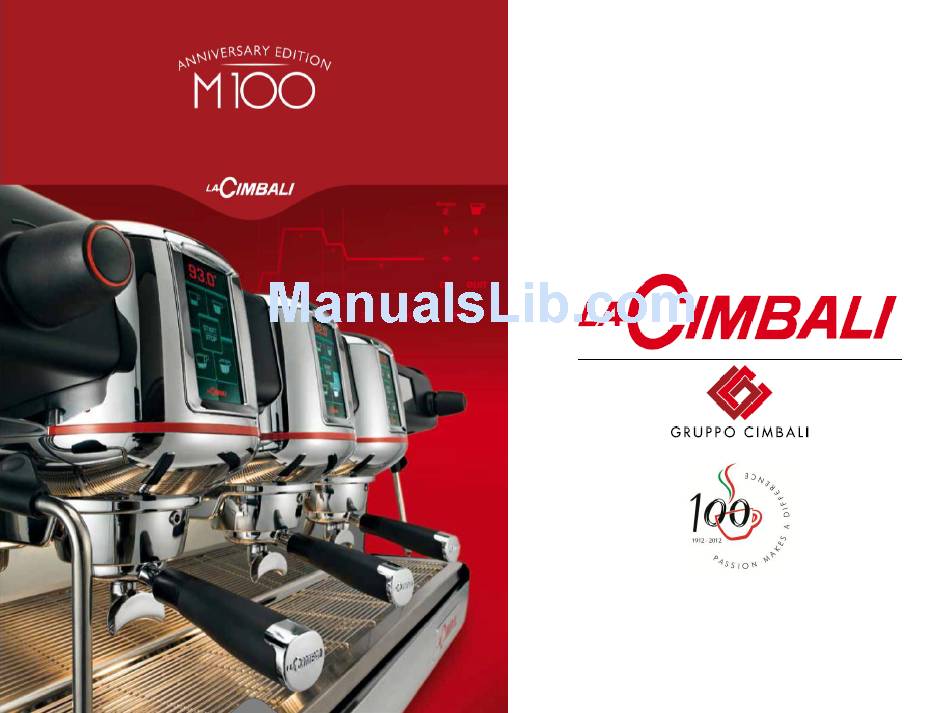

- Page 2 Italian espresso coffee has evolved in the bewitching forms of the M100 - the new professional machine for coffee bars, designed to celebrate Gruppo Cimbali's first 100 years of success.
- Page 3 Curved, rounded groups that bring to mind the design of coffee machines equipped with hydraulic groups. • Ascetic design. • Ergonomics. • Attention to barista’s needs and preferences. • Top performance in terms of quality in the cup. M100 jewel Cimbali technology.
- Page 4 M100 Water temperature and extraction pressure are the key variables for a perfect espresso. To manage them in the best possible way, Cimbali has patented its GT/HD technology which, on the basis of the blend used, lets you: adjust the delivery temperature...
- Page 5 GT/HD thermal system • Thermal stability and easy temperature control on each boiler • Pressure modulation during the extraction process Advantages of this system: • Wide adjustment range • Accuracy • Thermal stability • Pressure profile modulation during extraction In the GT-only models, the delivery pressure remains constant...
- Page 6 GT/HD thermal system Thermal-control coffee boiler Services boiler with double cartridge for pre- heating system Model Capacity (litres) Model Capacity (litres) 0.4 x 2g 0.4 x 3g 0.4 x 4g...
- Page 7 Pressure profile HD models HD allows you to personalise the water pressure profile on the coffee panel The HD system lets you control the pressure level throughout the process, ensuring the optimum extraction substances that make the coffee full- bodied and tasty, while limiting the less noble ones that reduce the quality in the...
- Page 8 HD models: pressure profile HD models each coffee group and each delivery button, you can program the required pressure profile on the service display. Thanks interface, this operation is easy and intuitive.
- Page 9 Pressure profile: quality in the cup HD models • The technology used on the M100 guarantees optimum control of the pre-infusion phase: starting from an extraction profile that perfectly echoes the traditional Cimbali thermal system, this phase can be modified to suit varying needs as determined by the characteristics of the specific blend •...
- Page 10 Quality in the cup: pre-infusion HD models Pre-infusion is an essential phase defining visual characteristics of the espresso, and a notable part of its structure too. The M100 offers the option of standard pre-infusion, inspired by traditional Cimbali technology.
- Page 11 Quality in the cup: infusion HD models By varying the pressure level during the infusion phase, you can alter the structure and the intensity of the acidic taste.
- Page 12 Quality in the cup: end phase HD models During the end phase, by varying notably pressure you can greatly alter the intensity of the bitterness...
- Page 13 Quality in the cup The new delivery spouts facilitate the airing process on the coffee outflow, improving the consistency of the cream and allowing the barista visually control delivery.
- Page 14 Skilfully-made cappuccino To extend the menu of milk- based drinks and guarantee good frothing quality, thereby offering unprecedented choice, Cimbali has equipped M100 with TURBOSTEAM Milk4 wand.
- Page 15 Skilfully-made cappuccino The TURBOSTEAM Milk4 is a steam wand that not only delivers a mix of steam and air like the traditional Turbosteam (patented), but also has holes in the lower end part for frothing or heating even small amounts of milk (50cc). With the Turbosteam Milk4, the barista can automatically produce 4 different recipes.
- Page 16 Skilfully-made cappuccino Four buttons with personalised programming, to create four different milk recipes in terms of temperature and quantity of cream. For example: 1. Hot, non-frothed milk 2. A little milk cream 3. Standard milk cream 4. A lot of milk cream The temperature and emulsion level are determined at the time of programming, but can be modified directly by the bartender to suit his own needs.
- Page 17 Skilfully-made cappuccino Thanks to the simple rotation of the Turbosteam knob, you can select one of the milk cream recipes programmed (and shown on the display, in the form of an icon). Just press the same knob to start up the Turbosteam. The delivery can be stopped at any time by pressing the knob again.
- Page 18 Skilfully-made cappuccino Easy cleaning The wand bulb is quickly removed, allowing the bartender to easily clean the terminal.
- Page 19 An excellent tea M100 is equipped with a new system for managing the hot water temperature teas infusions. software lets you set both temperature and the amount of water dispensed each selection, without needing to access the inside of the machine.
- Page 20 Simply at your command A truly evolved machine transforms the barista's work into simple, intuitive gestures: • an extremely simple user interface • commands activated via the touch screen • an extensive work area, lit by LEDs • a filter-holder with soft touch, inclined, ergonomic grip.
- Page 21 Performance: + 30% Thanks to the Smart Boiler, the boiler pressure is kept constant to reduce energy usage while at the same time ensuring maximum steam production. The Smart Boiler technology significantly increases the performance levels of hot water and steam, whilst optimising the water level in the boiler and ensuring the thermal balance for an ever-perfect result in the cup.
- Page 22 Green Machine: eco-friendly Gruppo Cimbali has committed itself to reducing environmental impact through the use of recyclable materials. The use of raw materials such as copper, brass, iron, aluminium and stainless steel makes our equipment easier to re-use. The plastics are eco- compatible, and all the equipment complies with the RoHS directive.
- Page 23 Green Machine: eco-friendly The M100 is a firm example of Gruppo Cimbali's respect for the environment: it's equipped with solutions that offer notable Energy Savings. - INSULATED STEAM/WATER BOILER - INSULATED INDEPENDENT COFFEE GROUPS - SOFTWARE FUNCTIONS FOR ENERGY SAVING...
- Page 24 Green Machine: thermal improvement Insulated boiler and coffee boilers The M100 is equipped with a boiler coated in a special material with a high insulation co- efficient, to reduce thermal dispersion. Also the coffee boilers are protected with an insulation covering.
- Page 25 Green Machine: software functions for energy saving The M100 For example: is equipped with the most advanced software functions for Energy Saving. 1. The ENERGY SAVING MODE can be activated manually by the barista, via the specific button on the user menu: the pressure in the boiler is lowered when the machine has not been dispensing for a lengthy period.
- Page 26 Green Machine: software functions for energy saving 3. Each coffee group can be put in standby mode by the barista if it is not being used. When switched back on, the group will be ready for use within 1 minute. This reduces wasted energy consumption.
-
Page 27: Food Safety
Food safety Ruveco Teck The M100 components that come into contact with water and steam are subjected to Ruveco Teck treatment - a production process that drastically reduces any release of metals into the delivered drinks. The results of the metal release tests carried out by the Eurofin laboratory have... - Page 28 Ergonomics and hygiene Ergonomic solutions The reduced tap stroke not only speeds up operations for the barista but also means faster steam delivery. The end part of the filter-holder handle is ergonomic and inclined, and is made of a soft touch material for greater usage comfort.
- Page 29 Ergonomics and hygiene The M100 boasts a new hi-tech user interface with 4.3″ TFT display and touch screen technology. The service display is also of the touch type, and the user and technical menus are very simple, thanks to a graphic interface based on intuitive icons.
- Page 30 The dispensing spouts are open, so the barista can see the coffee as it comes out. Hygiene under control The M100 performs the automatic and semi-automatic washing cycles following a procedure guided from the display and activated by pressing the specific button.
- Page 31 The Gruppo Cimbali R&D department has designed a new electronic system that's highly advanced in terms of performance and functions. The M100 is fitted as standard with a USB port to allow: 1. the updating of machine software via a USB drive 2.
- Page 32 Dimensions M100 - 2 GROUPS Length Width Height (mm) (mm) (mm) M100 - 3 GROUPS Length Width Height (mm) (mm) (mm) 1017 M100 - 4 GROUPS Length Width Height (mm) (mm) (mm) 1217...
- Page 33 Body finishes Brushed aluminium Glossy white: particularly suited to premises with a more contemporary feel Matt black: for a touch of automotive inspiration...
- Page 34 Certifications patents already granted for the current TS, plus patents pending, specifically for the new system: • perfected wand • new, replaceable terminal...
- Page 35 M100...
Need help?
Do you have a question about the m100 and is the answer not in the manual?
Questions and answers
CUSTOMER PROGRAM NOT ENABLED
"Customer Program Not Enabled" on the LaCimbali M100 means that the user-accessible programming mode, which allows customization of settings like drink counters, language, and time schedules, is currently deactivated and cannot be used until it is enabled.
This answer is automatically generated
