6.2.1 QTPCI.EXE

Quatech's "QTPCI" utility supplies the information required when

modifying the serial port settings of the application. This program should be run

from real DOS, not in a Windows DOS box.

Figure 13 shows the Basic Mode display for the DSCLP-200/300 after the

"Q" key has been pressed. In this example, the DSCLP-200/300 uses I/O base

address FFA0 hex and IRQ 3. The hardware revision of the DSCLP-200/300 is

also displayed. Pressing the "N" key will show similar information for all

non-Quatech PCI devices in the system, including those devices integrated on the

motherboard.

The QTPCI program is capable only of displaying the PCI configuration. It

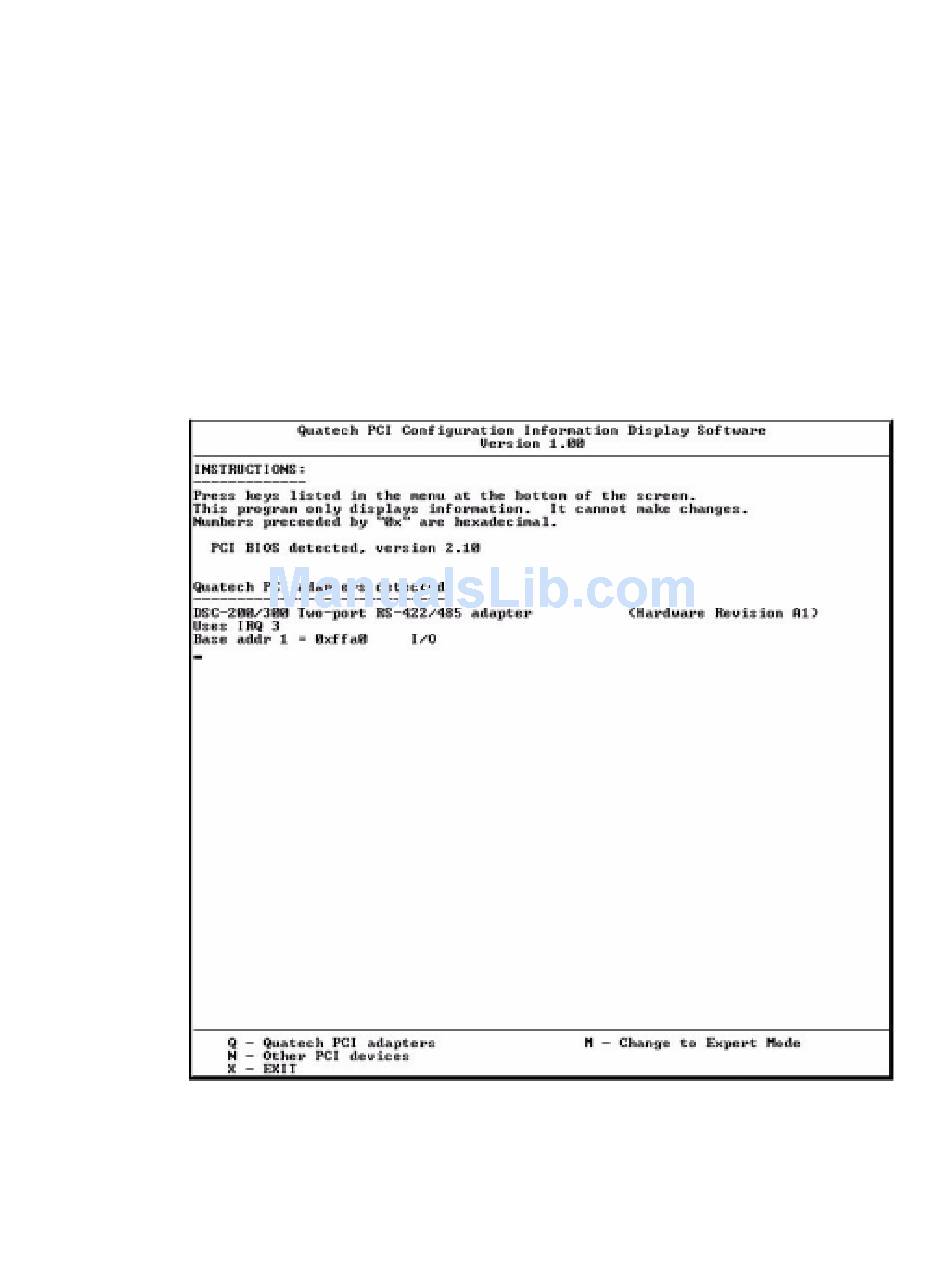

Figure 13 --- QTPCI.EXE Basic Mode display

DSCLP/SSCLP-200/300 User's Manual

cannot be used to make changes.
