5.6.1 Changing Resource Settings with Device Manager

1. Start the Windows 95/98/ME Device Manager.

2. Double click on the hardware class Multi-Port Serial Adapters to list

hardware devices in the class.

3. The DSCLP-200/300 "parent device" belongs to this hardware class.

The full device name for the DSCLP-200/300 is Quatech

DSCLP-200/300: Two-Port RS-422/485 Serial Adapter.

4. Open the Properties dialog for the DSCLP-200/300 device, then click

the Resources tab to view the Input/Output Range and Interrupt

Request resource allocations.

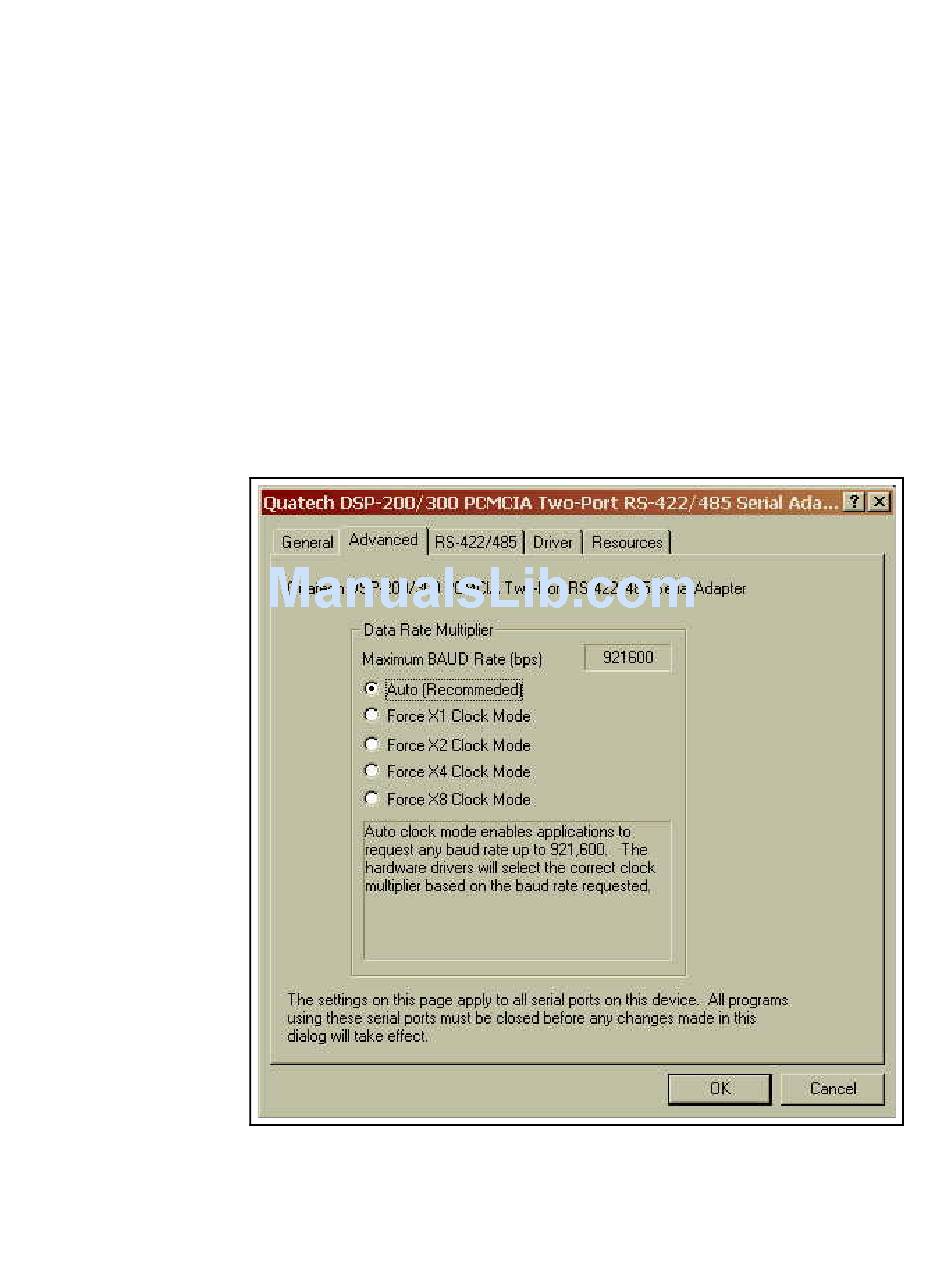

5. Open the Properties dialog for the DSCLP-200/300 device, then click

the Advanced tab to view the clock rate settings.
