Install the drink holder
Fixed block on base notch
Fig. 13

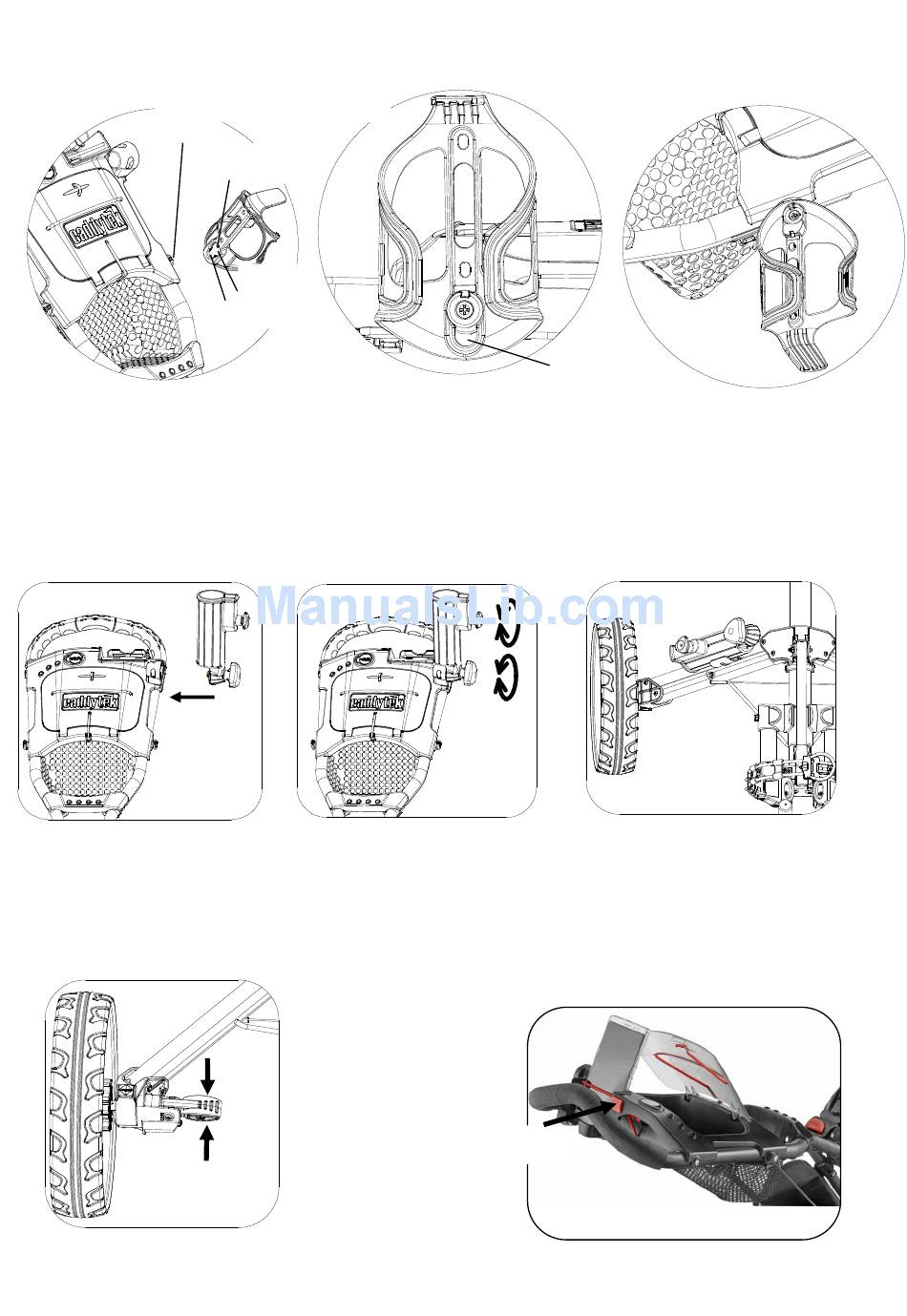

When installing the drink holder as Fig.13, align the smallest part of the slot on the
holder with the fixed blocks. Then pull horizontally to fit the holder on the base as
Fig.14 & 15.
Umbrella Holder
Fig. 16
To put in use:
Simply attach the umbrella holder
onto the cart as in fig. 16/17
Use the brake
Fig. 19
Press the foot brake to brake, Lift
it up to release as Fig.19
Slot on
Hole 1
Hole 2
Hole 2
Fig. 14
Fig. 17
To open the scorecard holder cover
button
Fig. 19-1
Press the button to open the scorecard
holder cover as Fig. 19-1
4
Fig. 15
Fig. 18
To store:
Attach the umbrella holder to
the storage rack on the right
leg frame as in Fig. 18.
