SRS-T88

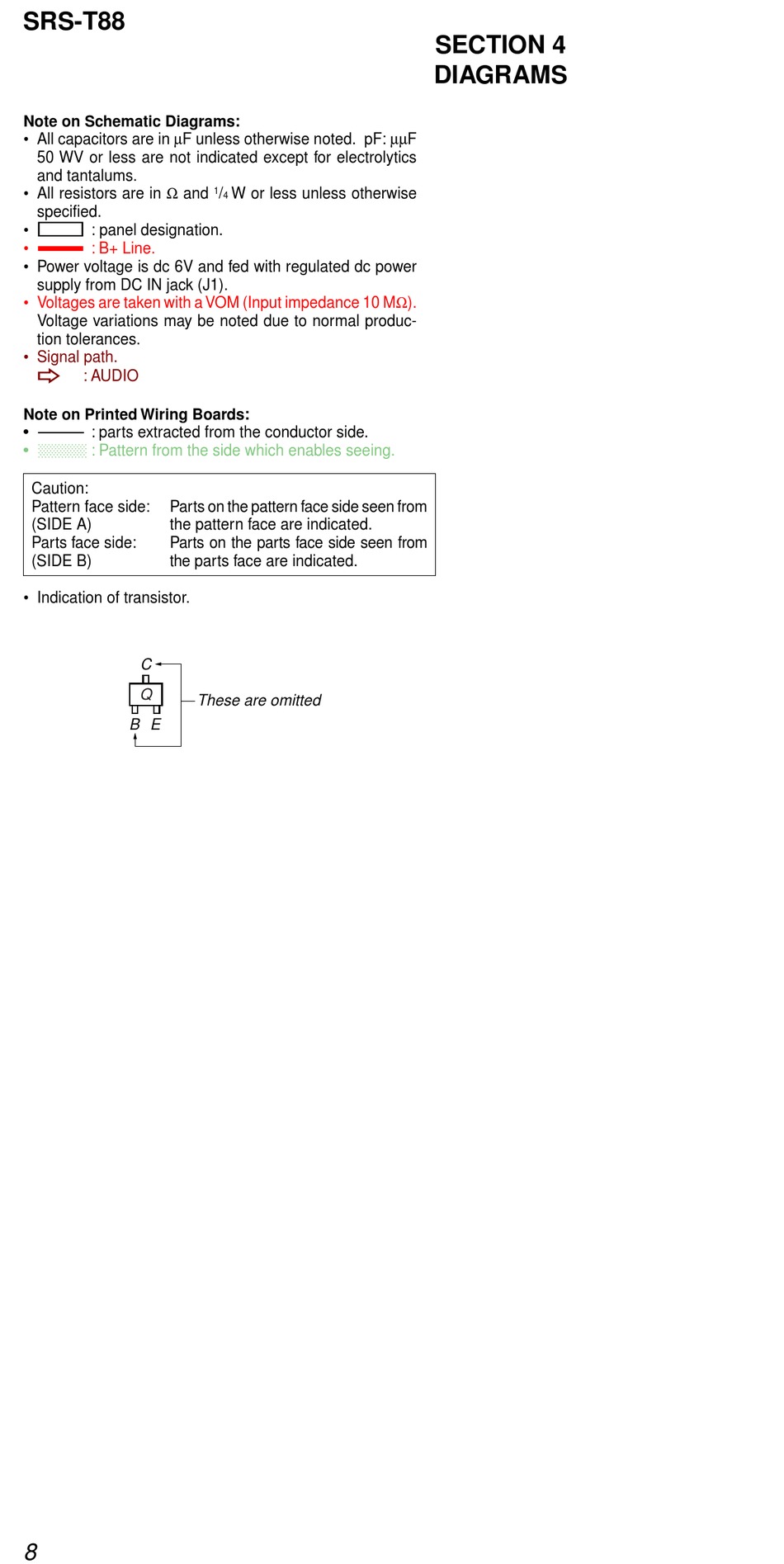

Note on Schematic Diagrams:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
1
/
4
specified.
• C : panel designation.
• A : B+ Line.
• Power voltage is dc 6V and fed with regulated dc power
supply from DC IN jack (J1).
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Signal path.
F
: AUDIO
Note on Printed Wiring Boards:
• Y : parts extracted from the conductor side.
• b : Pattern from the side which enables seeing.
Caution:
Pattern face side:
Parts on the pattern face side seen from
(SIDE A)
the pattern face are indicated.
Parts face side:
Parts on the parts face side seen from
(SIDE B)
the parts face are indicated.
• Indication of transistor.
C
Q
These are omitted
B
E
8
SECTION 4

DIAGRAMS

W or less unless otherwise
