SRS-T88
NOTE:
•
-XX, -X mean standardized parts, so they may
have some differences from the original one.
•
Items marked " * " are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
1
Ref. No.
Part No.
Description
1
X-3384-186-1 CABINET ASSY, FRONT
2
X-3384-656-1 SUB ASSY, KNOB (VOLUME)
3
3-258-788-01 KNOB (POWER)
4
3-258-790-11 PIPE
5
3-259-725-01 JOINT
6
3-260-136-02 URETHANE, JOINT
7
3-258-790-01 PIPE
8
3-258-783-01 COVER, TOP
9
3-258-784-01 LID, BATTERY CASE
10
3-258-785-01 STAND
11
3-260-137-01 URETHANE, BATTERY
12
3-258-792-01 SPRING, PLUS BATTERY
13
3-046-629-01 SPRING (B), BATTERY RELAY
12

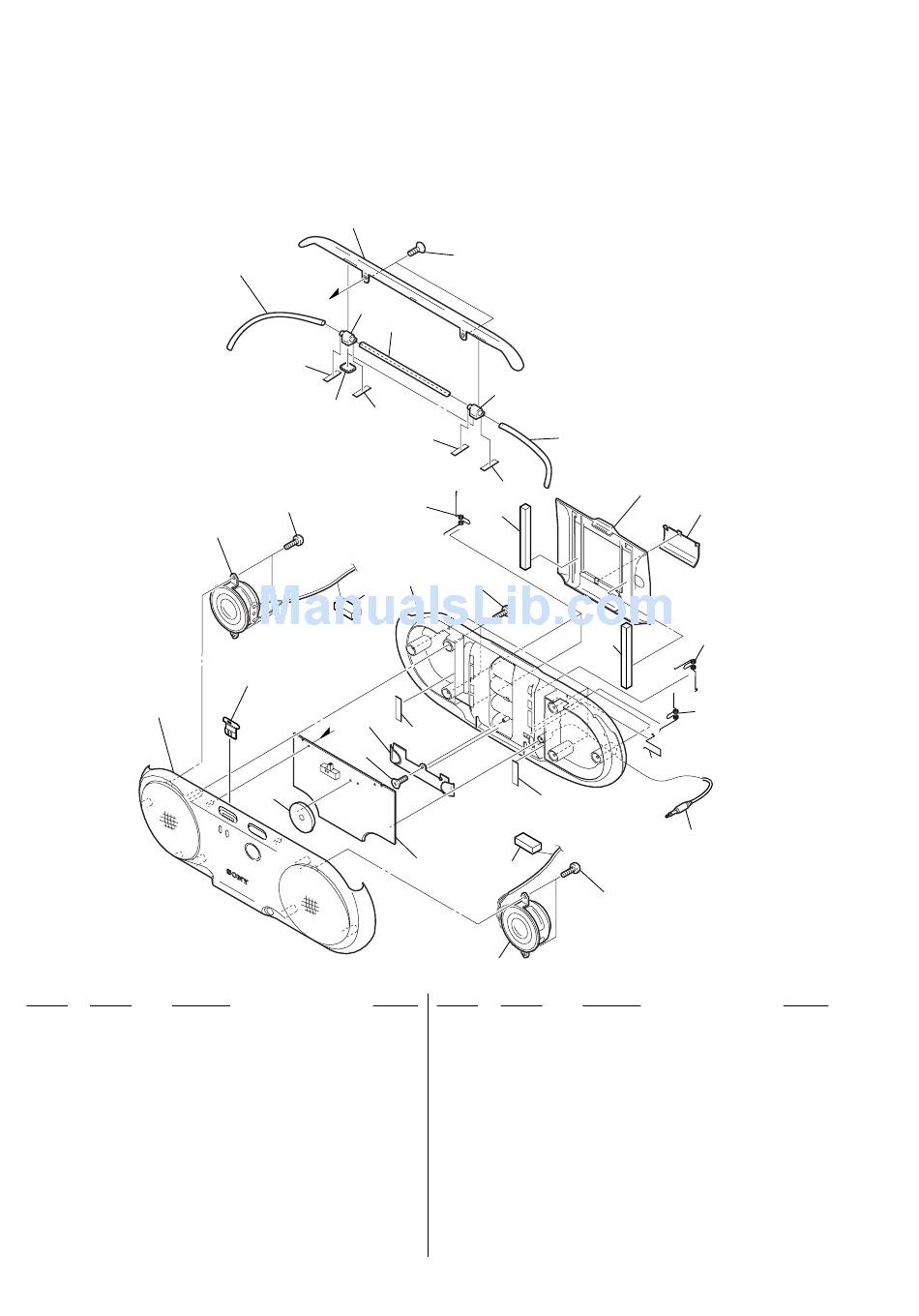

SECTION 5
EXPLODED VIEWS
•
The mechanical parts with no reference number
in the exploded views are not supplied.
8
4
a
5
16
6
16
21
SP1
23
3
17
a
22
2
Remarks
22
7
5
16
4
16
20
11
19
21
16
16
18
23
SP2
Ref. No.
Part No.
14
3-258-791-01 SPRING, MINUS BATTERY
15
1-827-763-21 CORD (WITH PLUG)
16
3-260-134-01 SHEET, PACKING
17
3-258-786-01 PLATE, BATTERY
* 18
A-4541-780-A AMP BOARD, COMPLETE
19
3-258-782-01 CABINET, REAR
20
3-046-628-01 SPRING (A), BATTERY RELAY
21
3-253-143-01 SCREW (B2.6), (+) P TAPPING
22
3-254-070-01 SCREW
23
3-260-135-02 URETHANE, PACKING
SP1
1-825-612-11 SPEAKER
SP2
1-825-612-11 SPEAKER
9
10
12
11
13
14
15
21
Description
Remarks
