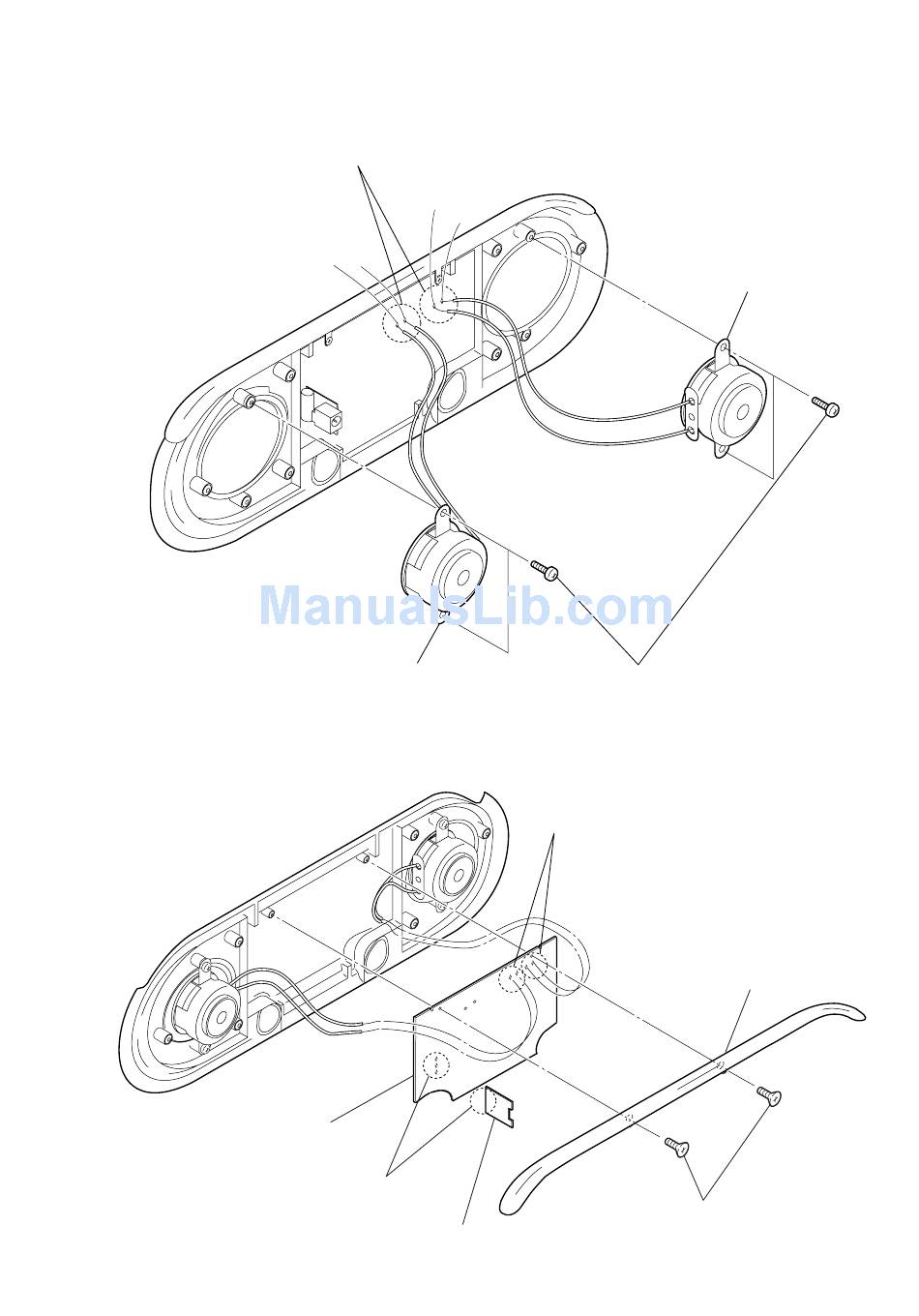

3-2. SPEAKER

1 Remove the
four solders.
(white)
(red)
(white)
(red)
4 speaker (SP1)
3 speaker (SP2)
2 four screws (+P B2.6)

3-3. AMP BOARD

3 Remove four solders
of the AMP board.
2 top cover
6 AMP board
4 Reomve three solders
of the AMP board.
1 two screws
(+P 2x6)
5 JACK board
7
