Section 3 Exploded Views; Cabinet Section - Sony SA-S1 Service Manual

NOTE:
@ -XX, -X mean standardized parts, so
they may have some difference from the
original one.
@ The construction parts of an assembled
part are indicated with a collation
number in the remark column.

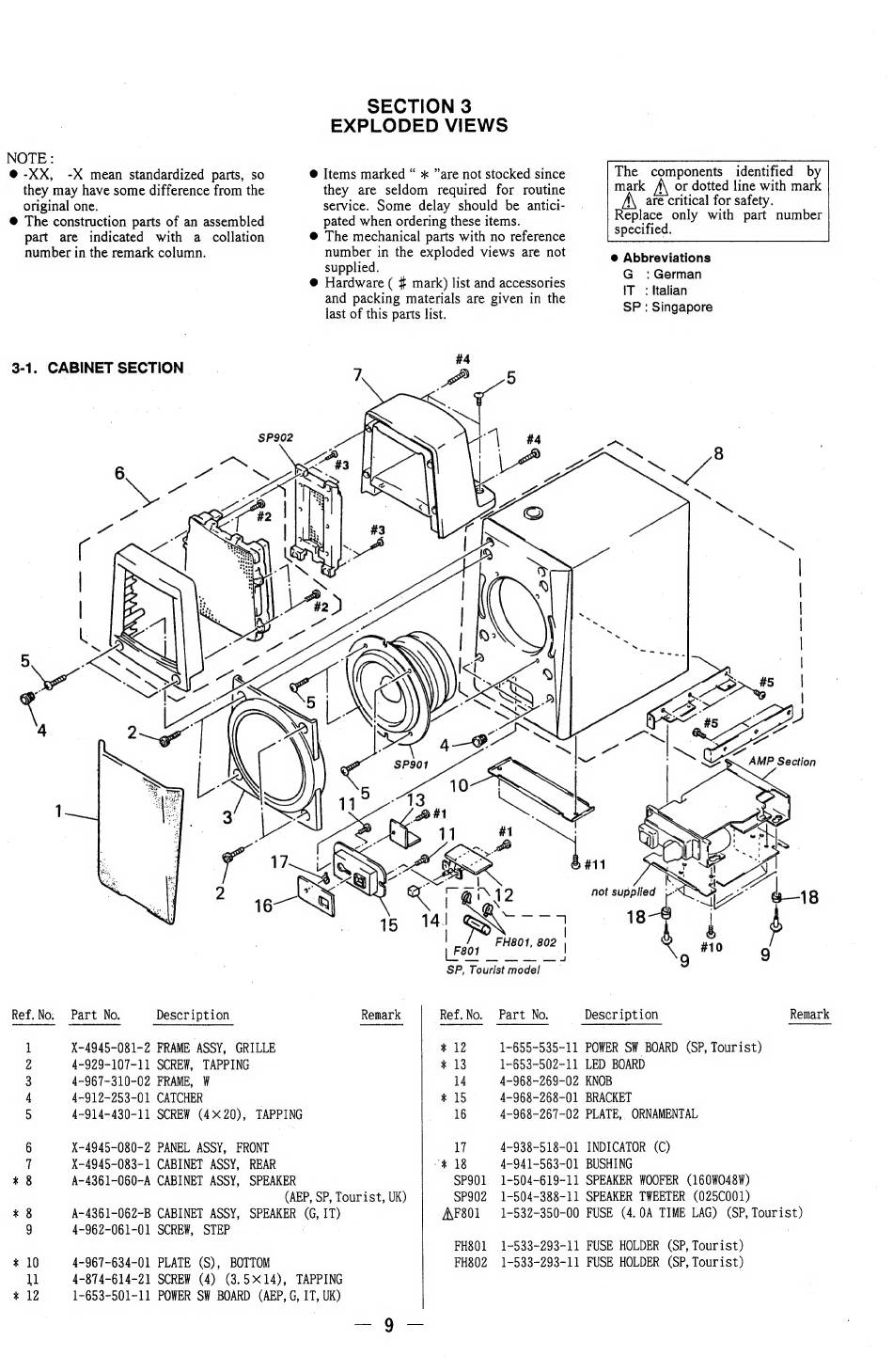

3-1. CABINET SECTION
SECTION 3
EXPLODED VIEWS
@ Items marked " * "are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
@ The mechanical parts with no reference
number in the exploded views are not
supplied.
@ Hardware ( # mark) list and accessories
and packing materials are given in the
last of this parts list.
SP, Tourist model
The components identified by
A\ or dotted line with mark
mark
are critical for safety.
Replace only with part number
specified.
® Abbreviations
G : German
IT: Italian
SP : Singapore
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
1 X-4945-081-2 FRAME ASSY, GRILLE * 12 1-655-535-11 POWER SW BOARD (SP, Tourist)
2 4-929-107-11 SCREW, TAPPING * 13 1-653-502-11 LED BOARD
3 4-967-310-02 FRAME, W 14 4-968-269-02 KNOB
4 4-912-253-01 CATCHER * 15 4-96§8-268-01 BRACKET
5 4-914-430-11 SCREW (4X20), TAPPING 16 4-968-267-02 PLATE, ORNAMENTAL
6 X-4945-080-2 PANEL ASSY, FRONT 17 4-938-518-01 INDICATOR (C)
7 X-4945-083-1 CABINET ASSY, REAR "* 18 4-941-563-01 BUSHING
x 8 A-4361-060-A CABINET ASSY, SPEAKER
(AEP, SP, Tourist, UK)
SP901
SP902
1-504-619-11 SPEAKER WOOFER (160W048¥)
1-504-388-11 SPEAKER TWEETER (025C001)
* 8 A-4361-062-B CABINET ASSY, SPEAKER (G, IT) AF801 1-532-350-00 FUSE (4.0A TIME LAG) (SP, Tourist)
9 4-962-061-01 SCREW, STEP :
FH801 1-533-293-11 FUSE HOLDER (SP, Tourist)
* 10 4-967-634-01 PLATE (S), BOTTOM FH802 1~-533-293-11 FUSE HOLDER (SP, Tourist)
11 4-874-614-21 SCREW (4) (3.514), TAPPING
* 12 1-653-501-1] POWER SW BOARD (AEP, G, IT, UK)
