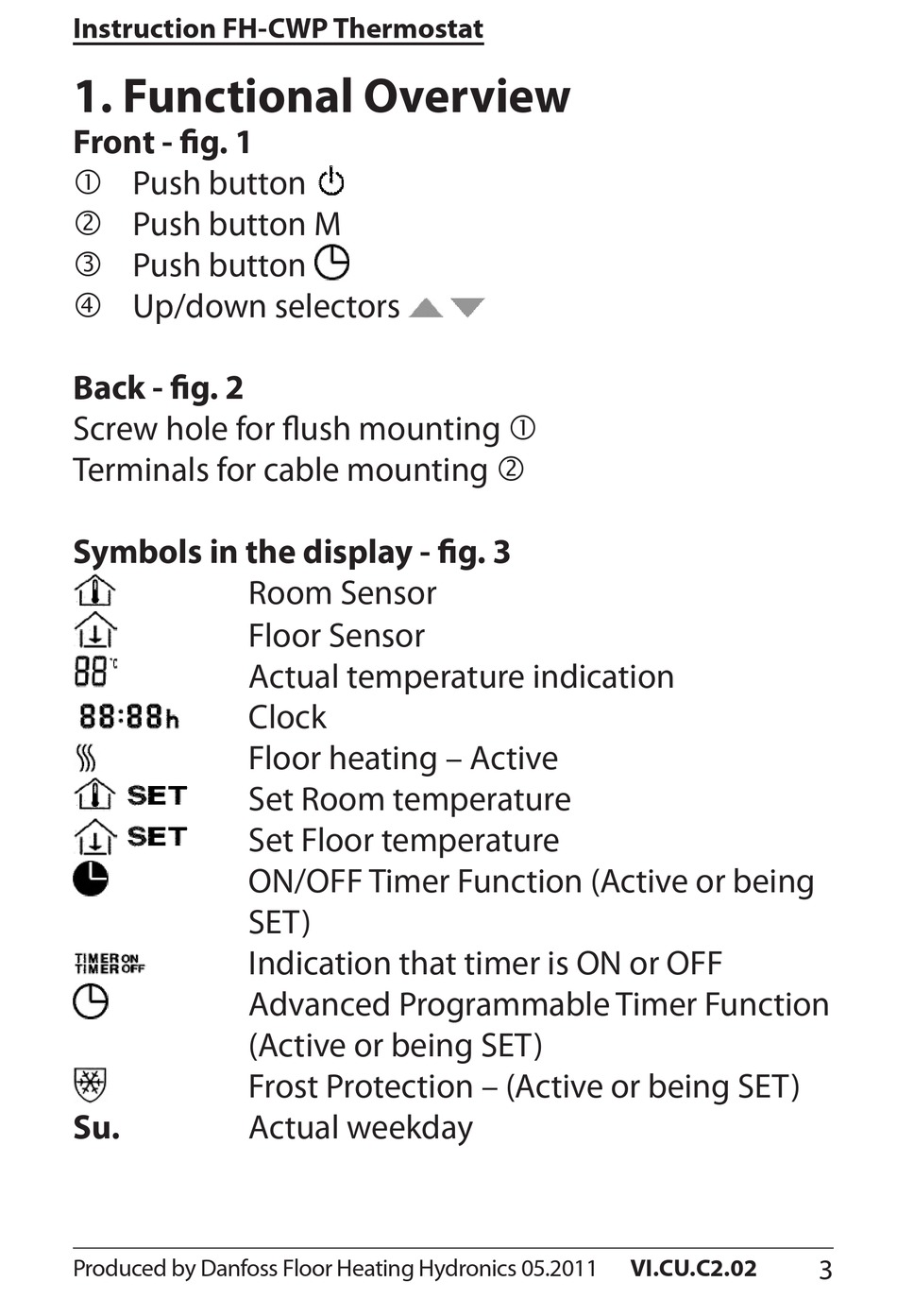

Instruction FH-CWP Thermostat

1. Functional Overview

Front - fig. 1
 Push button
 Push button M
 Push button
 Up/down selectors
Back - fig. 2
Screw hole for flush mounting 
Terminals for cable mounting 
Symbols in the display - fig. 3
Su.
Produced by Danfoss Floor Heating Hydronics 05.2011
Room Sensor
Floor Sensor
Actual temperature indication
Clock
Floor heating – Active
Set Room temperature
Set Floor temperature
ON/OFF Timer Function (Active or being
SET)
Indication that timer is ON or OFF
Advanced Programmable Timer Function
(Active or being SET)
Frost Protection – (Active or being SET)
Actual weekday
