68-pin Jumper Settings

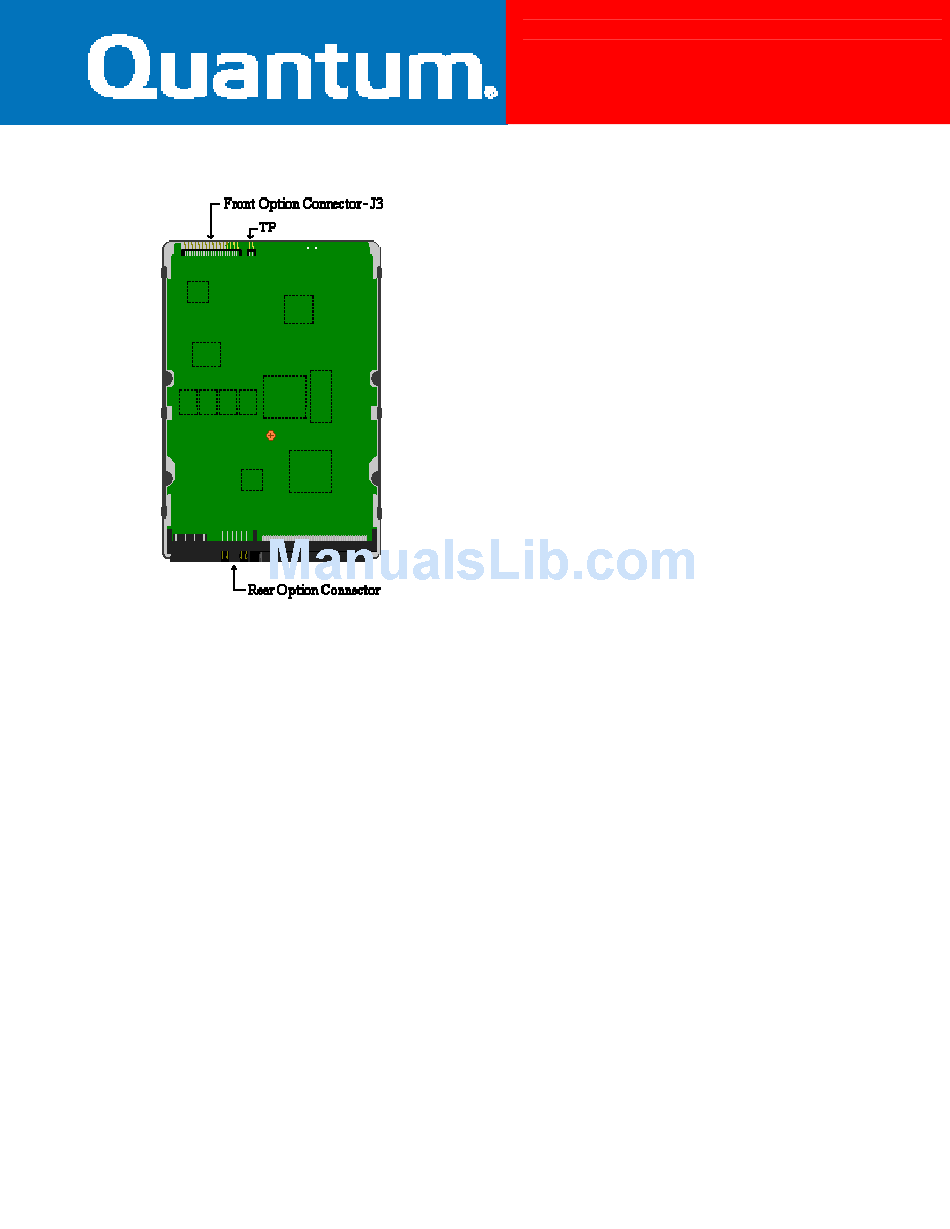

Jumper Settings

The following describes the jumper options and settings available on the Maxtor® Atlas™ II disk drive. Maxtor Atlas II was
developed by Quantum Corporation prior to its merger with Maxtor.
Termination Enable (TE)
Enable termination
Disable termination
Note: Termination enable available on SE version only.
Termination Power (TP)
Enable termination power
Disable termination power
SCSI ID (A3, A2, A1, A0)
Set drive SCSI ID
Delay Spin (DS)
Enable spin delay
Disable spin delay
5 of 8
Atlas II
Jumper Settings
SP jumper off
SP jumper on
TE jumper on
TE jumper off
TP jumper on
TP jumper off
See ID settings table below
