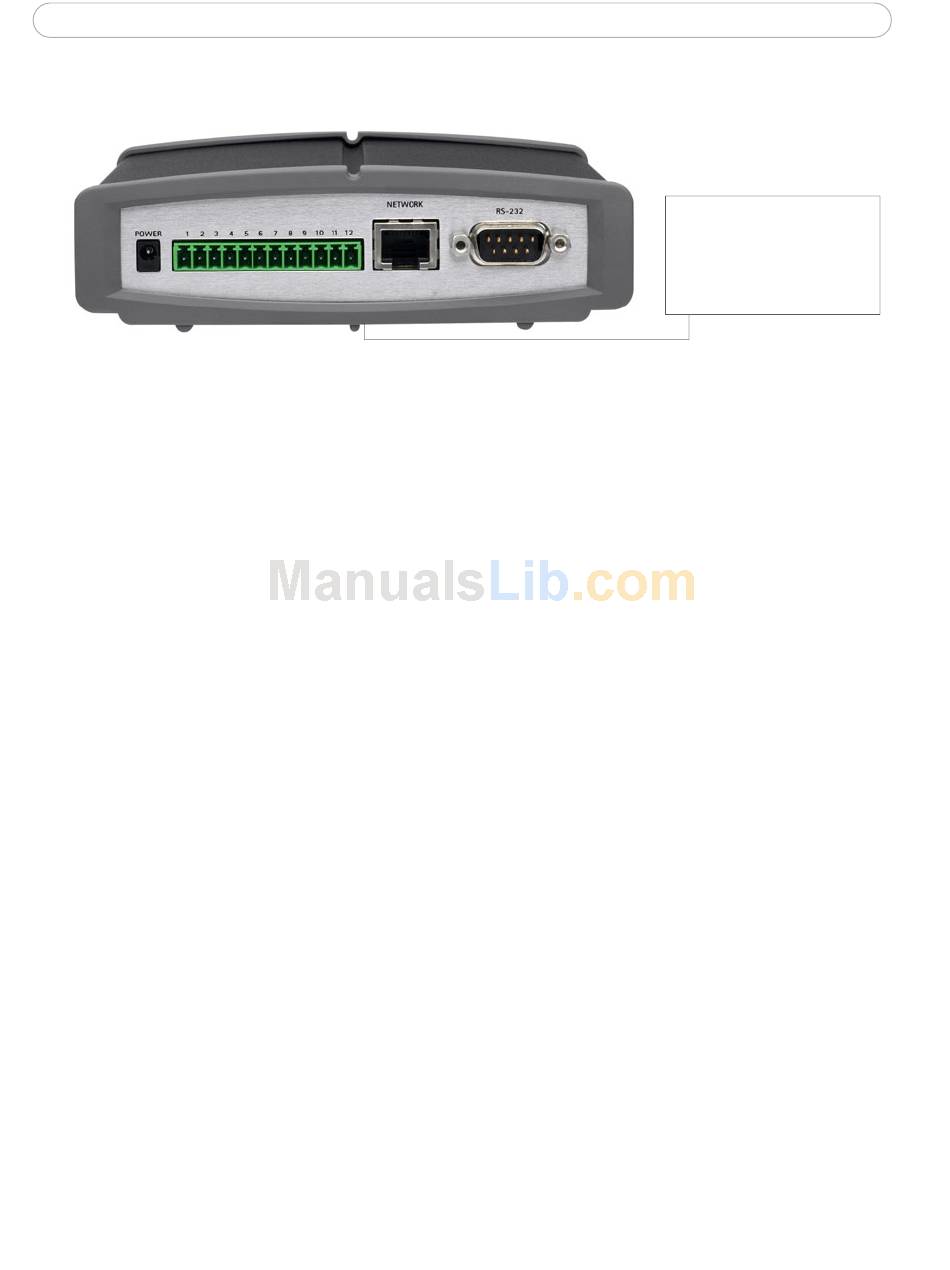

AXIS 240Q Rear Panel

Power adapter connector - A single socket for connection of the PS-K power adapter.
I/O Terminal connector - The I/O Terminal connector provides the physical interface to 4
digital transistor outputs, 4 digital inputs and an RS-485 interface. See Unit Connectors, on
page 44 for more information.
Note:
The I/O Terminal connector also provides an auxiliary connection point for DC
power.
Network Connector - The AXIS 240Q connects to the network via a standard network
cable. The AXIS 240Q detects the speed of the local network segment (10BaseT/100BaseTX
Ethernet).
RS-232 Serial Connector - A 9-pin D-sub connector providing an RS-232 serial
connection. Typically used for connecting Pan/Tilt/Zoom devices. See Unit Connectors, on
page 44 for more information.
AXIS 240Q - Product Description
The Serial Number is
located on the label
on the underside of
the unit.
