Axis Rack Mounted Video Server Solution
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2400+ and is the answer not in the manual?

Questions and answers

Related Manuals for Axis 2400+

Summary of Contents for Axis 2400+

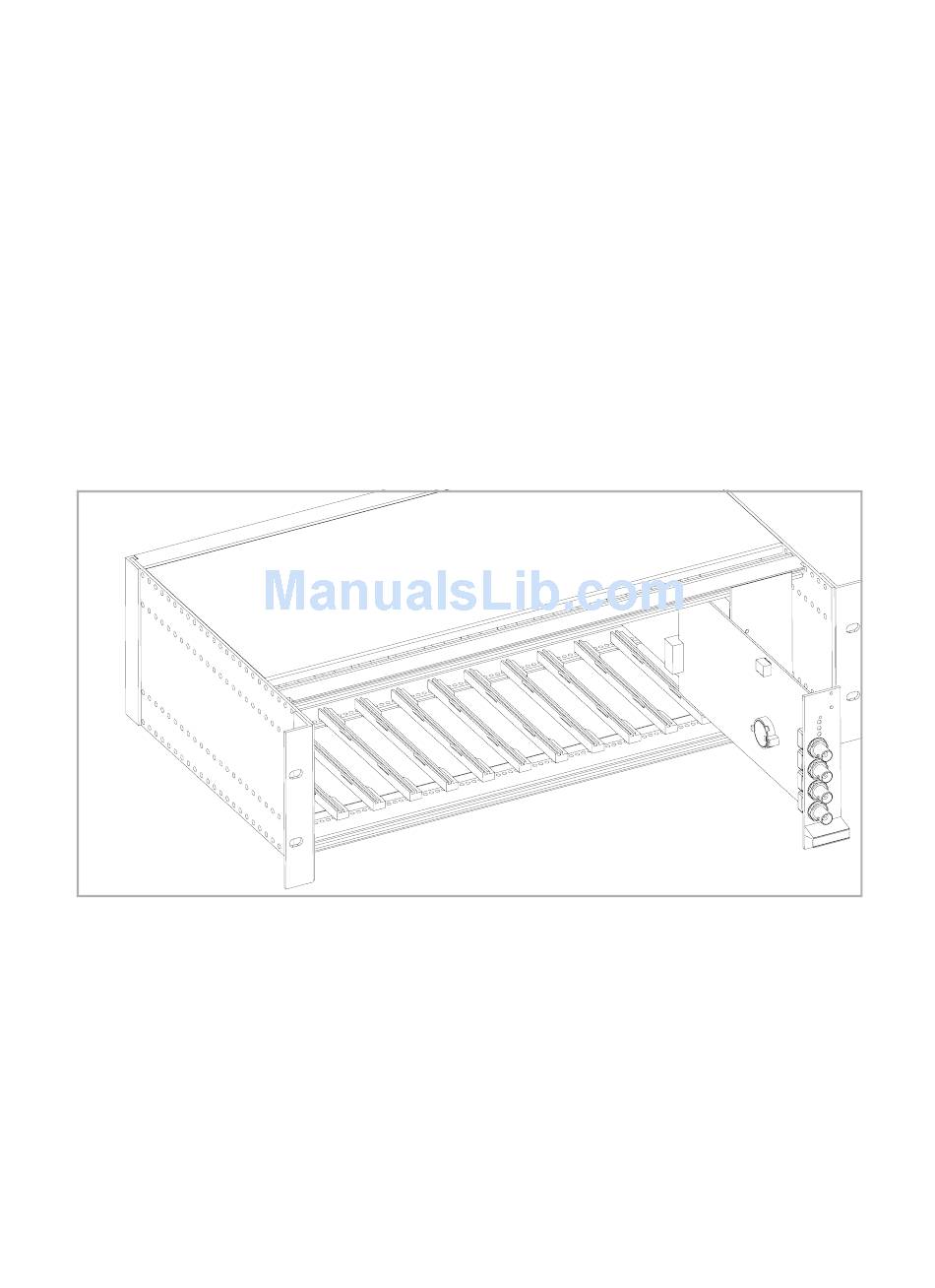

  • Page 1 Axis Rack Mounted Video Server Solution Installation Guide...

  • Page 2: Axis Rack Mounted Video Server Solution

    Axis AB has Liability - this manual; Please inform your local Axis office of any inaccuracies or omissions. Axis Communications AB cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice.
  • Page 3 Axis Rack Mounted Video Server Solution Axis Video Server Rack will fit up to 12 rack mounted Axis Video Servers (Blade Servers). This installation guide describes the hardware installation of the Axis Rack Mounted Video Server Solution. The Axis Video Server Administration Manual contains instructions on the following: •...
  • Page 4 • Red - displays red only if there is a problem with the AXIS Video Server • Orange - flashes orange when resetting to the factory default settings...
  • Page 5 RS-485 interface and an RS-232 serial connection. Network Connector - Axis blade video servers are designed for 10 Mbps Ethernet /100 Mbps Fast Ethernet networks and connect to the network via a standard RJ 45 connector.

  • Page 6: The I/O Terminal Block

    The I/O Terminal Block Axis Blade Video Servers connect to an I/O terminal block used for transmitting data over multi-drop communication lines: • RS-485 Pan Tilt devices • RS-232 Pan/Tilt devices • External triggering (typically associated with CCTV equipment) COM1 is internally multiplexed with the RS-485 port via the Terminal Block Connector.
  • Page 7 12 individual Axis Video Servers. To comply with EMC regulations, ensure that all empty slots are covered using the supplied cover plates. • The functionality of the Axis Blade Video Servers is the same as in the standalone versions. Axis Video Server Administration Manual...

  • Page 8: Technical Specifications

    All specifications are subject to change without prior notice. Axis Video Server Administration Manual For additional technical details see the Technical Specifications section in the Axis Video Server Administration Manual. The Manual is available in printed format with your Axis Video Server or on the Axis Web site at http://www.axis.com...
