Summary of Contents for Axis 240Q Blade

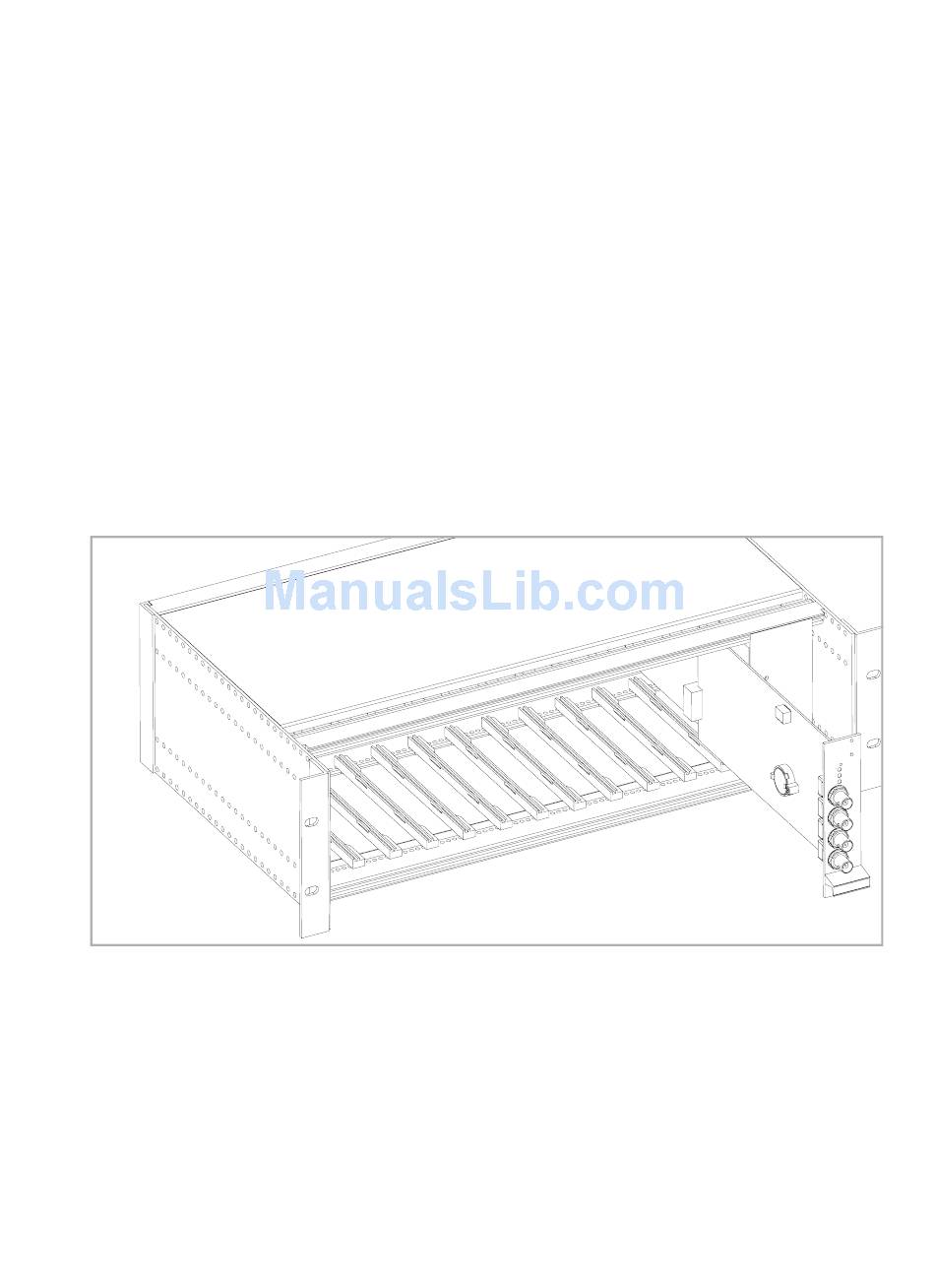

- Page 1 AXIS 240Q Blade - Rack Solution Installation Guide...
-
Page 2: About This Document
Installation Guide and User’s Manual. It includes instructions for installing the Axis Rack Mounted Video Server Solution on your network. Later versions of this document will be posted to the Axis Web site, as required. Intellectual Property Rights - intellectual property rights relating to technology embodied in the product described in this document. -
Page 3: Hardware Inventory
Servers). This installation guide describes the hardware installation of the Axis Rack Mounted Video Server Solution. To set the IP address and install the video server on your network, please see the AXIS 240Q Installation Guide. For all other aspects of using the product, please see the User’s Manual. -
Page 4: Product Label
AXIS 240Q Blade - Rack Solution Installation Guide Video In The AXIS 240Q accommodates up to 4 separate video sources (VIDEO 1 - VIDEO 4) simultaneously. Each supported video input is terminated using a coax/BNC connector. Physical connections made using 75 Ohm coaxial video cable have a recommended maximum length of 800 feet (250 meters). -
Page 5: Network Connector
RS-485 interface and an RS-232 serial connection. Network Connector Axis Blade video servers are designed for 10 Mbps Ethernet and 100 Mbps Fast Ethernet networks and connect via a standard RJ-45 connector. DC + Power 12VDC Power (output) This connector can drive the photo coupler inputs or other equipment, such as an IR-sensor. -
Page 6: The I/O Terminal Block
AXIS 240Q Blade - Rack Solution Installation Guide The I/O Terminal Block The AXIS 240Q Blade Video Server connects to an I/O terminal block used for transmitting data over multi-drop communication lines: • RS-485 Pan/Tilt devices • RS-232 Pan/Tilt devices •... - Page 7 AXIS 240Q Video Server User’s Manual The functionality of the AXIS 240Q Blade Video Server is the same as in the standalone version. For more information on how to use and configure the video server rack on your network, please refer to the AXIS 240Q Video Server User’s Manual, available on the CD...
-
Page 8: Technical Specifications
AXIS 240Q Blade - Rack Solution Installation Guide Technical Specifications The following specifications are applicable for the complete Axis Rack Mounted Video Server Solution, i.e. an AXIS Video Server Rack with a mounted AXIS 240Q Blade Video Server. Safety Approvals - EN60950 EMC Approvals - •...
