Rear Panel

Item
Icon
A
B
C
D
SPDIF
E
F
ESATA
G
H
HDMI
I
J
K
L
M
N
O
P
Q
Chapter 1
Q
P
O
N
M
E
L
K
J
Component

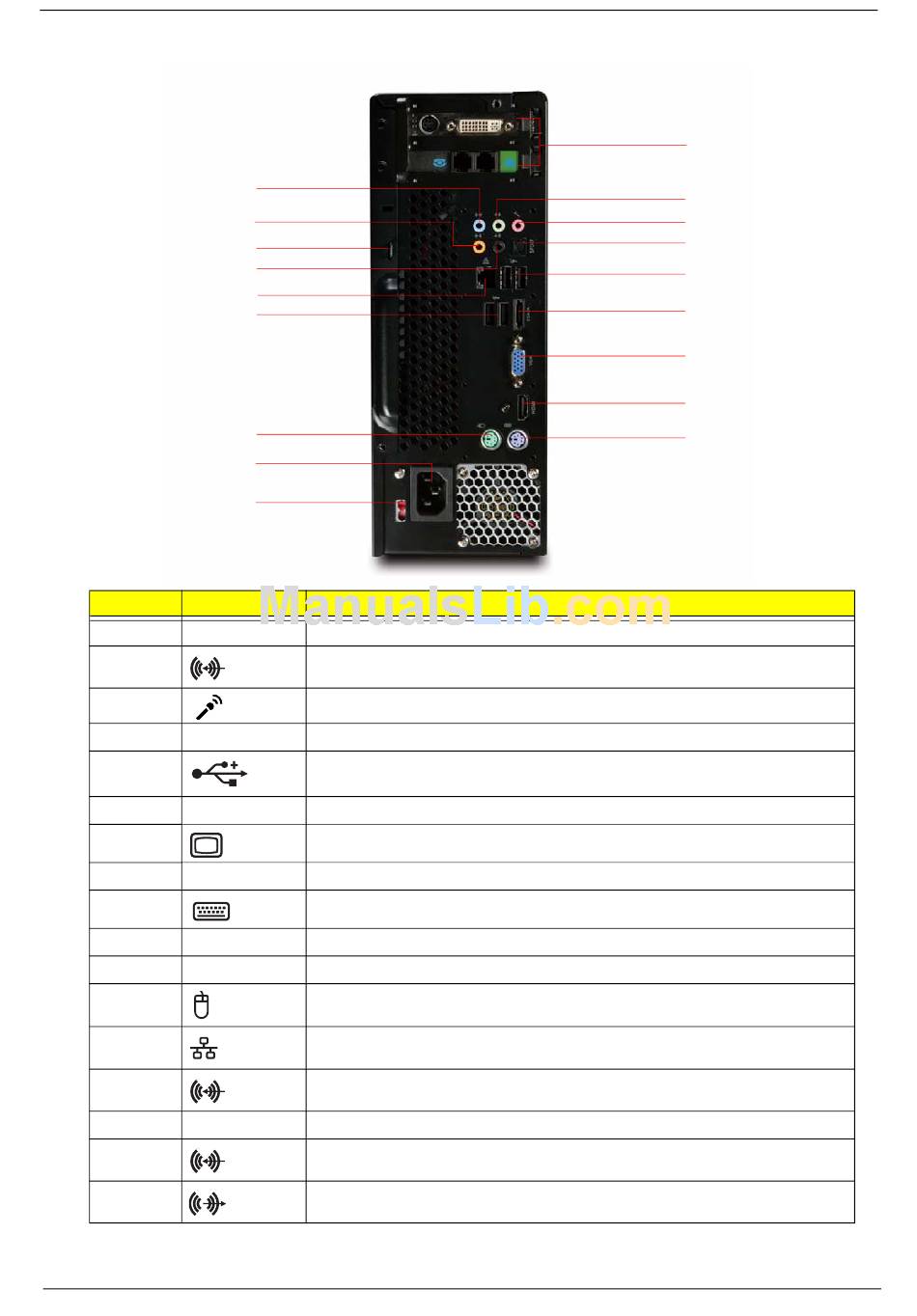

Expansion slot (Photo shows graphics card and network/modem card)
Line-out jack
Microphone/speaker-out/line-in jack
S/PDIF port
USB 2.0 ports
eSATA port
CRT/LCD monitor port
HDMI port
PS2 keyboard port
Power connector
Voltage selector switch
PS2 mouse port
Gigabit LAN port (10/100/1000 Mbps)
Rear speaker/surround out jack
Keyhole
Center speaker/subwoofer jack
Line-in jack
